Search › Model › Y10X
Y10X

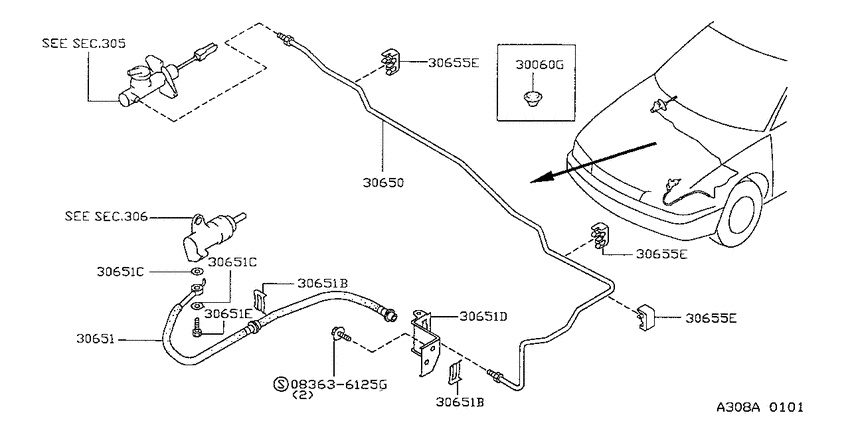

Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) 8
| # | OEM | Part name |
|---|---|---|
| 30650 | 30850-F4100 | Tube Assy-Clutch |
| 30651 | 30855-60R00 | Hose Assy-Clutch |
| 30651 | 30820-64R00 | Bracket-Clutch Hose |
| 30651 | 46356-01E01 | BOLT-UNION,FRONT BRAKE HOSE |
| 30651 | 46356-0E000 | BOLT-UNION,FRONT BRAKE HOSE |
| 30655 | 46272-01G00 | Spacer |
| 30655 | 46272-2S400 | Spacer-Brake Tube |
| 83636125 | 08363-6125G | Screw |
| OEM | Part name | Category |
|---|---|---|
| 08363-6125G | Screw | Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) |
| 30820-64R00 | Bracket-Clutch Hose | Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) |
| 30850-F4100 | Tube Assy-Clutch | Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) |
| 30855-60R00 | Hose Assy-Clutch | Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) |
| 46272-01G00 | Spacer | Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) |
| 46272-2S400 | Spacer-Brake Tube | Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) |
| 46356-01E01 | BOLT-UNION,FRONT BRAKE HOSE | Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) |
| 46356-0E000 | BOLT-UNION,FRONT BRAKE HOSE | Clutch piping (1993-07-01 ~ ; GA13DS +GA15DS) |
