Search › Model › Y10X
Y10X

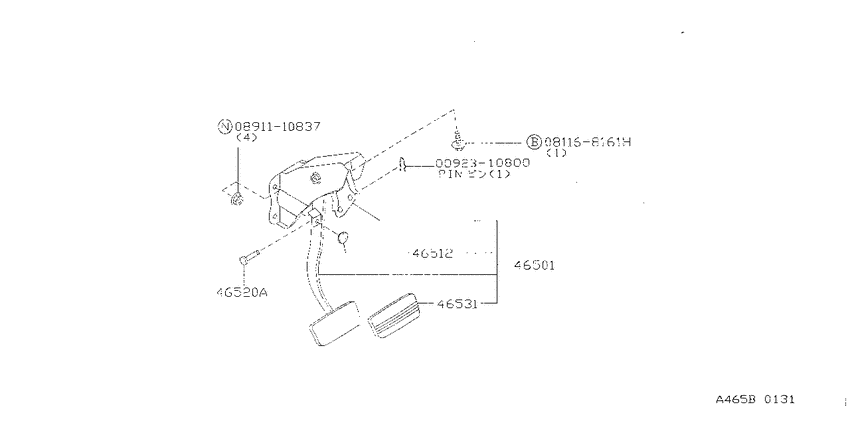

Brake & clutch pedal (1993-07-01 ~ ; GA13DS.AT +GA15DS.AT) 6
| # | OEM | Part name |
|---|---|---|
| 46501 | 46501-51Y00 | Pedal Assy-Brake W/bracket |
| 46520 | 46123-H8500 | Pin-Clevis |
| 46520 | 46123-H850A | Pin-Clevis |
| 81168161 | 08116-8161H | Bolt-hexagon |
| 92310800 | 00923-10800 | ピン,スプリツト コツタ- |
| 891110837 | 08911-10837 | ナツト,ヘクサゴン |
| OEM | Part name | Category |
|---|---|---|
| 00923-10800 | ピン,スプリツト コツタ- | Brake & clutch pedal (1993-07-01 ~ ; GA13DS.AT +GA15DS.AT) |
| 08116-8161H | Bolt-hexagon | Brake & clutch pedal (1993-07-01 ~ ; GA13DS.AT +GA15DS.AT) |
| 08911-10837 | ナツト,ヘクサゴン | Brake & clutch pedal (1993-07-01 ~ ; GA13DS.AT +GA15DS.AT) |
| 46123-H8500 | Pin-Clevis | Brake & clutch pedal (1993-07-01 ~ ; GA13DS.AT +GA15DS.AT) |
| 46123-H850A | Pin-Clevis | Brake & clutch pedal (1993-07-01 ~ ; GA13DS.AT +GA15DS.AT) |
| 46501-51Y00 | Pedal Assy-Brake W/bracket | Brake & clutch pedal (1993-07-01 ~ ; GA13DS.AT +GA15DS.AT) |
