Search › Model › Y10

Y10

Nissan WINGROAD-AD-EXPERT · 1990 · 2,952 parts · 223 categories

2,952 items

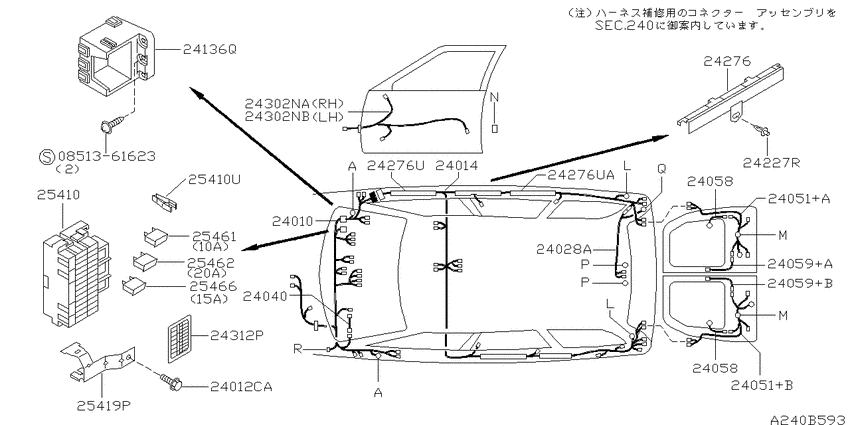

Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20) 27

#	OEM	Part name
24010	24010-WC022	Harness Assy-Main
24010	24010-WC023	Harness Assy-Main
24012	01466-00371	SCREW
24014	24014-WC020	Harness Assy-Body
24014	24014-WC021	Harness Assy-Body
24014	24014-74R00	Harness Assy-Chassis
24028	24028-68R10	Harness-Sub
24040	24040-87R10	Harness Assy-Air Conditioner
24051	24051-68R00	Harness-Back Door
24051	24052-68R00	Harness-Back Door
24058	24058-68R00	Harness-Defogger, Rear
24059	24059-68R00	Harness-Defogger, Earth
24059	24059-68R05	Harness-Defogger, Earth
24136	24346-4H000	Bracket Assy-Connector
24276	24272-70N00	Protector-Harness
24276	24272-60R00	Protector-Harness
24276	24272-68R00	Protector-Harness
24302	24124-WC015	Harness Assy-Door, Front
24302	24125-WC010	Harness Assy-Door, Front
24302	24124-WC008	Harness Assy-Door, Front
24302	24124-WC002	Harness Assy-Door, Front
24312	24313-WC000	Label-Fuse Block
24312	24313-WC001	Label-Fuse Block
25410	24311-89900	Block Assy-Fuse
25410	24321-C9900	Puller-Fuse
25419	24317-60R00	Bracket-Fuse Block
851361623	08513-61623	スクリユ-,タツピング

OEM	Part name	Category
01466-00371	SCREW	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
08513-61623	スクリユ-,タツピング	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24010-WC022	Harness Assy-Main	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24010-WC023	Harness Assy-Main	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24014-74R00	Harness Assy-Chassis	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24014-WC020	Harness Assy-Body	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24014-WC021	Harness Assy-Body	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24028-68R10	Harness-Sub	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24040-87R10	Harness Assy-Air Conditioner	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24051-68R00	Harness-Back Door	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24052-68R00	Harness-Back Door	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24058-68R00	Harness-Defogger, Rear	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24059-68R00	Harness-Defogger, Earth	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24059-68R05	Harness-Defogger, Earth	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24124-WC002	Harness Assy-Door, Front	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24124-WC008	Harness Assy-Door, Front	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24124-WC015	Harness Assy-Door, Front	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24125-WC010	Harness Assy-Door, Front	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24272-60R00	Protector-Harness	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24272-68R00	Protector-Harness	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24272-70N00	Protector-Harness	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24311-89900	Block Assy-Fuse	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24313-WC000	Label-Fuse Block	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24313-WC001	Label-Fuse Block	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24317-60R00	Bracket-Fuse Block	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24321-C9900	Puller-Fuse	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
24346-4H000	Bracket Assy-Connector	Wiring (1997-05-01 ~ ; ボディ(2); V/2D.CD20)
