Search › Model › Y10

Y10

Nissan WINGROAD-AD-EXPERT · 1990 · 2,952 parts · 223 categories

2,952 items

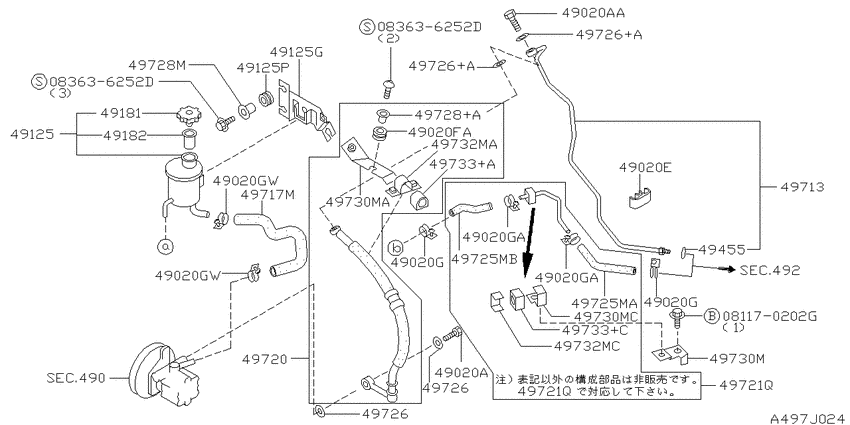

Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4) 26

#	OEM	Part name
49020	49738-V5000	Bolt-Connector
49020	49791-50A00	Clamp
49020	49729-2J016	Clamp
49125	49180-54Y00	Tank Assy-Reservoir
49125	49180-54Y0A	Tank assy-reservoir
49125	49180-55Y00	Tank Assy-Reservoir
49125	49190-55Y00	Bracket-Reservoir Tank
49181	49181-55Y00	Cap Assy-Pump
49182	49182-42L00	Filter Assy-Pump
49713	49713-60R10	Tube-Connector To Pump
49717	49717-62C00	Hose Assy-Suction, Power Steering
49721	49721-60R10	Tube Assy-Return, Power Steering
49725	49725-60Y05	Hose-Return, Power Steering
49728	49728-55S00	Collar
49728	49728-55S0A	Collar-Insulator
49730	49730-69Y05	Bracket-Tube
49730	49730-60Y05	Bracket-Tube
49730	49730-33Y02	Bracket-Tube
49730	49730-40U01	Bracket-Tube
49730	49730-60R00	Bracket-Tube
49730	49730-60R01	Bracket-Tube
49732	49732-79907	Clamp
49732	49732-36E05	BRACKET-POWER STEERING TUBE
49733	49733-54C00	Insulator
49733	49733-55M00	Insulator
81170202	08117-0202G	Bolt-hexagon

OEM	Part name	Category
08117-0202G	Bolt-hexagon	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49180-54Y00	Tank Assy-Reservoir	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49180-54Y0A	Tank assy-reservoir	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49180-55Y00	Tank Assy-Reservoir	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49181-55Y00	Cap Assy-Pump	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49182-42L00	Filter Assy-Pump	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49190-55Y00	Bracket-Reservoir Tank	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49713-60R10	Tube-Connector To Pump	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49717-62C00	Hose Assy-Suction, Power Steering	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49721-60R10	Tube Assy-Return, Power Steering	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49725-60Y05	Hose-Return, Power Steering	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49728-55S00	Collar	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49728-55S0A	Collar-Insulator	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49729-2J016	Clamp	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49730-33Y02	Bracket-Tube	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49730-40U01	Bracket-Tube	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49730-60R00	Bracket-Tube	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49730-60R01	Bracket-Tube	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49730-60Y05	Bracket-Tube	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49730-69Y05	Bracket-Tube	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49732-36E05	BRACKET-POWER STEERING TUBE	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49732-79907	Clamp	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49733-54C00	Insulator	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49733-55M00	Insulator	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49738-V5000	Bolt-Connector	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)
49791-50A00	Clamp	Power steering piping (1997-05-01 ~ ; パ-ト 1; CD20.AT.F4)

Source: Public OEM parts-catalog data
Variants: 2 / 141
Category: 223
Collected: 2026-07-29
