| 01131-00031 |
BOLT |

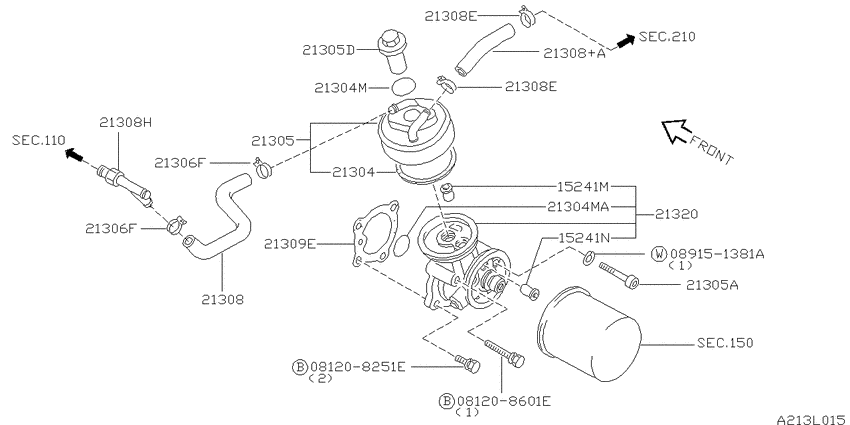

Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 08120-8251E |
Bolt-hexagon |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 08120-8601E |
Bolt-hexagon |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 15239-57J00 |
Gasket |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 15241-17F00 |
Valve Assy-Relief, Oil Cooler |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 15241-17F0A |
Valve Assy-Relief, Oil Cooler |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 15241-40F00 |
Valve Assy-Relief, Oil Cooler |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 16439-17B00 |
Clip |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21304-JK20A |
Ring-Rubber |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21305-59Y01 |
Cooler Assy-Oil |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21305-60J10 |
Cooler Assy-Oil |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21306-2J601 |
Hose-Water |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21313-0C420 |
Stud-Oil Cooler |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21313-30F11 |
Stud-Oil Cooler |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21334-30F0A |
Seal-0 Ring |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21340-59Y02 |
Bracket-Oil Cooler Mounting |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 21340-60J11 |
Bracket-Oil Cooler Mounting |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
| 27070-59Y01 |
Connector-Oil Cooler |
Oil cooler (1997-05-01 ~ ; MT; CD20) |
