Search › Model › Y10
Y10

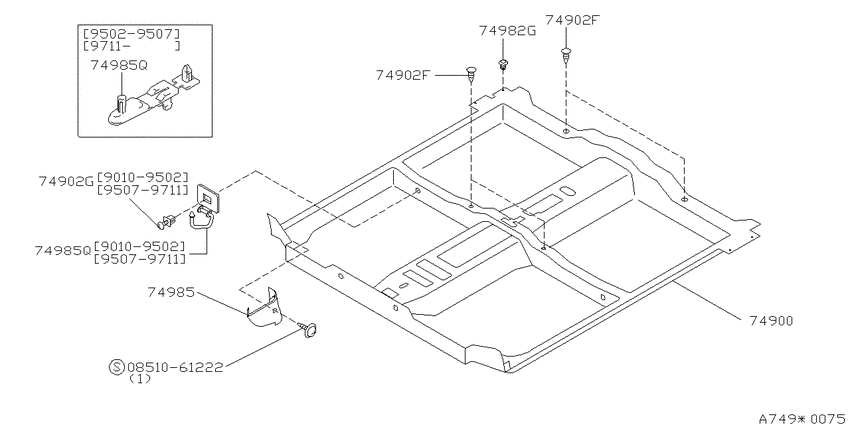

Floor trimming (1997-05-01 ~ ; V/4D +V/2D) 7
| # | OEM | Part name |
|---|---|---|
| 74900 | 74902-86R82 | Carpet Assy-Floor |
| 74900 | 74902-86R08 | Carpet Assy-Floor |
| 74900 | 74902-86R09 | Carpet Assy-Floor |
| 74982 | 01658-01511 | PLUG |
| 74985 | 74986-50Y00 | Plate-Carpet, Front |
| 74985 | 74985-35F00 | Bracket-Carpet, Front |
| 851061222 | 08510-61222 | スクリユ-,タツピング |
| OEM | Part name | Category |
|---|---|---|
| 01658-01511 | PLUG | Floor trimming (1997-05-01 ~ ; V/4D +V/2D) |
| 08510-61222 | スクリユ-,タツピング | Floor trimming (1997-05-01 ~ ; V/4D +V/2D) |
| 74902-86R08 | Carpet Assy-Floor | Floor trimming (1997-05-01 ~ ; V/4D +V/2D) |
| 74902-86R09 | Carpet Assy-Floor | Floor trimming (1997-05-01 ~ ; V/4D +V/2D) |
| 74902-86R82 | Carpet Assy-Floor | Floor trimming (1997-05-01 ~ ; V/4D +V/2D) |
| 74985-35F00 | Bracket-Carpet, Front | Floor trimming (1997-05-01 ~ ; V/4D +V/2D) |
| 74986-50Y00 | Plate-Carpet, Front | Floor trimming (1997-05-01 ~ ; V/4D +V/2D) |
