Y10

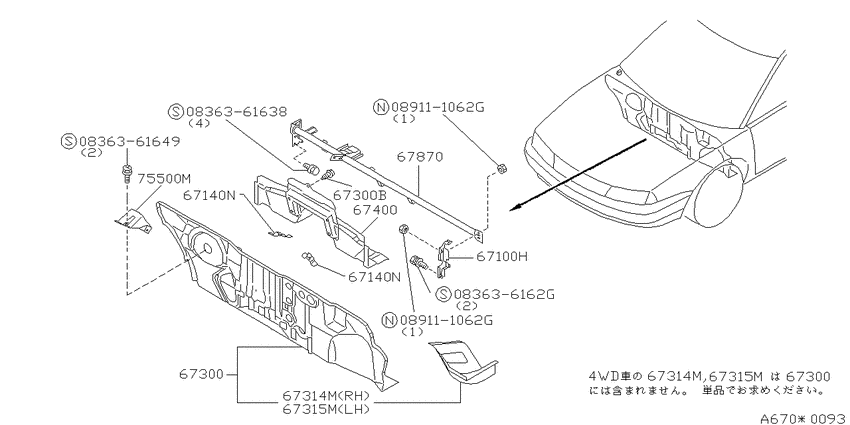

Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) 9
| # | OEM | Part name |
|---|---|---|
| 67100 | 68129-60R00 | Bracket-Instrument |
| 67100 | 68129-60R10 | Bracket-Instrument |
| 67300 | 67300-95R10 | Dash-Lower |
| 67300 | 67300-95R00 | Dash-Lower |
| 67314 | 67314-60R00 | Patch-Dash Lower, Rh |
| 67315 | 67315-68R00 | Patch-Dash Lower, Lh |
| 67870 | 67870-66R10 | Member Assy-Steering |
| 836361638 | 08363-61638 | スクリユ-,マシン |
| 836361649 | 08363-61649 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08363-61638 | スクリユ-,マシン | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
| 08363-61649 | スクリユ-,マシン | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
| 67300-95R00 | Dash-Lower | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
| 67300-95R10 | Dash-Lower | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
| 67314-60R00 | Patch-Dash Lower, Rh | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
| 67315-68R00 | Patch-Dash Lower, Lh | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
| 67870-66R10 | Member Assy-Steering | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
| 68129-60R00 | Bracket-Instrument | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
| 68129-60R10 | Bracket-Instrument | Dash panel & fitting (1997-05-01 ~ ; V/4D +V/2D) |
