Search › Model › Y10
Y10

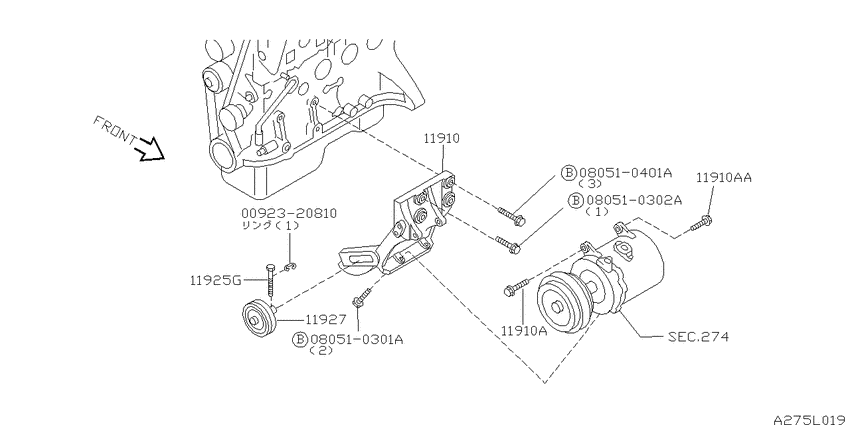

Compressor mounting & fitting (1997-05-01 ~ ; CD20) 7
| # | OEM | Part name |
|---|---|---|
| 11910 | 11910-57J00 | Bracket-Compressor |
| 11910 | 11916-57J05 | Bolt |
| 11925 | 11948-77A00 | Bolt-Adjust |
| 11927 | 11927-54A00 | Pulley-Idler |
| 80510301 | 08051-0301A | Bolt-hexagon |
| 80510302 | 08051-0302A | Bolt-hexagon |
| 80510401 | 08051-0401A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08051-0301A | Bolt-hexagon | Compressor mounting & fitting (1997-05-01 ~ ; CD20) |
| 08051-0302A | Bolt-hexagon | Compressor mounting & fitting (1997-05-01 ~ ; CD20) |
| 08051-0401A | Bolt-hexagon | Compressor mounting & fitting (1997-05-01 ~ ; CD20) |
| 11910-57J00 | Bracket-Compressor | Compressor mounting & fitting (1997-05-01 ~ ; CD20) |
| 11916-57J05 | Bolt | Compressor mounting & fitting (1997-05-01 ~ ; CD20) |
| 11927-54A00 | Pulley-Idler | Compressor mounting & fitting (1997-05-01 ~ ; CD20) |
| 11948-77A00 | Bolt-Adjust | Compressor mounting & fitting (1997-05-01 ~ ; CD20) |
