Search › Model › Y10
Y10

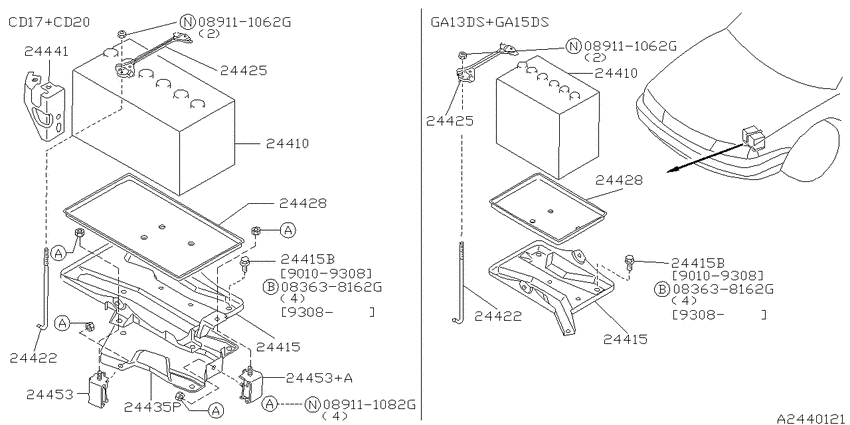

Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) 8
| # | OEM | Part name |
|---|---|---|
| 24415 | 64860-66R10 | Bracket-Battery |
| 24422 | 24425-2T500 | Rod-Battery Fix |
| 24428 | 24428-60L00 | Tray-Battery |
| 24435 | 64861-79R00 | Bracket-Battery Mounting Lower |
| 24453 | 24451-79R00 | Mounting-Battery |
| 24453 | 24451-50Y00 | Mounting-Battery |
| 24453 | 24452-50Y00 | Mounting-Battery |
| 83638162 | 08363-8162G | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08363-8162G | スクリユ-,マシン | Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) |
| 24425-2T500 | Rod-Battery Fix | Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) |
| 24428-60L00 | Tray-Battery | Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) |
| 24451-50Y00 | Mounting-Battery | Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) |
| 24451-79R00 | Mounting-Battery | Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) |
| 24452-50Y00 | Mounting-Battery | Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) |
| 64860-66R10 | Bracket-Battery | Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) |
| 64861-79R00 | Bracket-Battery Mounting Lower | Battery & battery mounting (1997-05-01 ~ ; GA13DE +GA15DE +CD20) |
