Y10

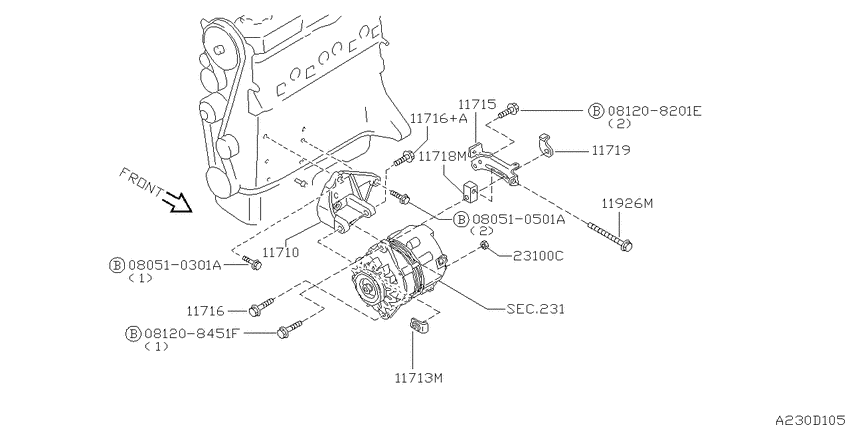

Alternator fitting (1997-05-01 ~ ; CD20) 9
| # | OEM | Part name |
|---|---|---|
| 11713 | 23188-V7200 | Nut |
| 11715 | 11715-57J01 | Bar-Adjusting, Alternator |
| 11716 | 11916-60U02 | Bolt |
| 11716 | 11916-57J00 | Bolt |
| 11718 | 11942-77A00 | Bracket-Adjust Bolt |
| 11719 | 11719-57J00 | Stopper-Alternator Nut |
| 11926 | 11928-03J01 | Shaft-Idler Pulley |
| 80510301 | 08051-0301A | Bolt-hexagon |
| 80510501 | 08051-0501A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08051-0301A | Bolt-hexagon | Alternator fitting (1997-05-01 ~ ; CD20) |
| 08051-0501A | Bolt-hexagon | Alternator fitting (1997-05-01 ~ ; CD20) |
| 11715-57J01 | Bar-Adjusting, Alternator | Alternator fitting (1997-05-01 ~ ; CD20) |
| 11719-57J00 | Stopper-Alternator Nut | Alternator fitting (1997-05-01 ~ ; CD20) |
| 11916-57J00 | Bolt | Alternator fitting (1997-05-01 ~ ; CD20) |
| 11916-60U02 | Bolt | Alternator fitting (1997-05-01 ~ ; CD20) |
| 11928-03J01 | Shaft-Idler Pulley | Alternator fitting (1997-05-01 ~ ; CD20) |
| 11942-77A00 | Bracket-Adjust Bolt | Alternator fitting (1997-05-01 ~ ; CD20) |
| 23188-V7200 | Nut | Alternator fitting (1997-05-01 ~ ; CD20) |
