Search › Model › XZU775

XZU775

Toyota DYNA-TOYOACE · 2011 · 3,473 parts · 217 categories

3,473 items

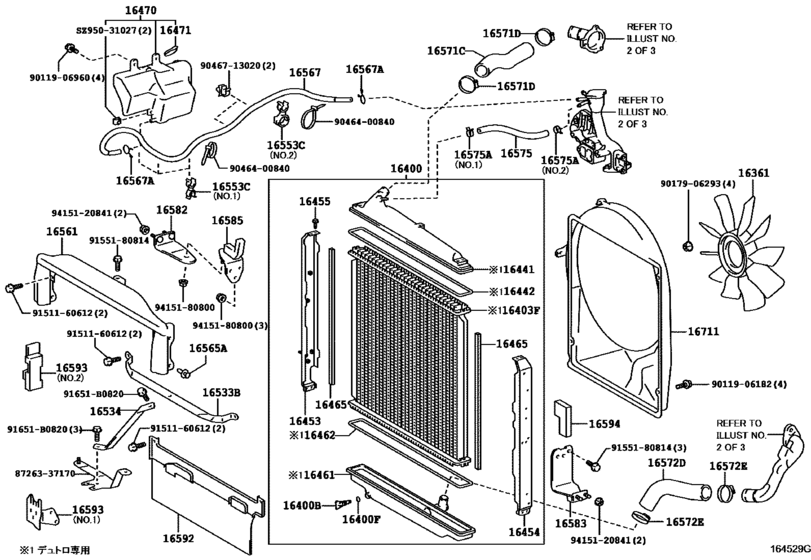

Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775) 55

#	OEM	Part name
16361	16361-78100	Fan
16361	16361-78120	Fan
16400	16400-78A00	Radiator Assy
16400	16417-15210	Plug, Radiator Drain Cock
16400	16418-15520	Packing(For Radiator Drain Cock)
16403	16403-78850	Core Sub-Assy, Radiator
16441	16441-78411	Tank, Radiator, Upper
16442	16442-78080	Ring, O(For Radiator Upper Tank)
16453	16453-78830	Plate, Radiator Side
16454	16454-78830	Plate, Radiator Side
16455	16455-61160	Bolt, Radiator Side Support Plate
16461	16461-78080	Tank, Radiator, Lower
16465	16465-78080	Packing, Radiator
16470	16470-78070	Tank Assy, Radiator Reserve
16471	16405-78070	Cap Sub-Assy, Reserve Tank
16533	16533-78100	Support, Radiator, No.1
16534	16534-78130	Support, Radiator, No.2
16553	16581-78110	Clamp, Hose
16553	16581-78120	Clamp, Hose
16561	16561-78060	Seal, Radiator To Support, No.1
16565	90467-07206	Clip
16565	90467-07206-C0	Clip
16567	16567-78570	Hose Or Pipe(For Radiator Reserve Tank)
16567	90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)
16571	16571-78320	Hose, Radiator, No.1
16571	16571-78322	Hose, Radiator, No.1
16571	16571-78321	Hose, Radiator, No.1
16571	16581-78150	Clip, Radiator Hose, No.1
16571	16581-78191	Clamp, Sub Radiator Inlet Hose
16571	16581-78151	Clip, Radiator Hose, No.1
16572	16572-78190	Hose, Radiator, Outlet
16572	16572-78191	Hose, Radiator, No.2
16575	16575-78122	Hose, Radiator, No.5
16575	90467-15022	Clip Or Clamp(For Ventilation Hose)
16575	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16582	16582-78060	Bracket, Radiator, No.1
16583	16583-78061	Bracket, Radiator, No.2
16585	16585-78100	Bracket, Radiator, No.3
16592	16592-78010	Guide, Radiator Air, No.3
16593	16593-78130	Guide, Radiator Air, No.1
16593	16593-78150	Guide, Radiator Air, No.1
16594	16594-78130	Guide, Radiator Air, No.2
16711	16711-78290	Shroud, Fan
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
8726337170	87263-37170	Bracket, Heater Water Pipe, No.1
9011906182	90119-06182	Bolt, W/washer (For Floor Shift)
9011906960	90119-06960	BOLT WWASHER
9017906293	90179-06293	NUT
9046400840	90464-00840	New Genuine Part
9046713020	90467-13020	Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9151160612	91511-60612	BOLT
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9415120841	94151-20841	Nut
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
16361-78100	Fan	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16361-78120	Fan	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16400-78A00	Radiator Assy	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16403-78850	Core Sub-Assy, Radiator	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16405-78070	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16417-15210	Plug, Radiator Drain Cock	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16441-78411	Tank, Radiator, Upper	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16442-78080	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16453-78830	Plate, Radiator Side	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16454-78830	Plate, Radiator Side	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16455-61160	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16461-78080	Tank, Radiator, Lower	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16465-78080	Packing, Radiator	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16470-78070	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16533-78100	Support, Radiator, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16534-78130	Support, Radiator, No.2	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16561-78060	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16567-78570	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16571-78320	Hose, Radiator, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16571-78321	Hose, Radiator, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16571-78322	Hose, Radiator, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16572-78190	Hose, Radiator, Outlet	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16572-78191	Hose, Radiator, No.2	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16575-78122	Hose, Radiator, No.5	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16581-78110	Clamp, Hose	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16581-78120	Clamp, Hose	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16581-78150	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16581-78151	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16581-78191	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16582-78060	Bracket, Radiator, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16583-78061	Bracket, Radiator, No.2	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16585-78100	Bracket, Radiator, No.3	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16592-78010	Guide, Radiator Air, No.3	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16593-78130	Guide, Radiator Air, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16593-78150	Guide, Radiator Air, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16594-78130	Guide, Radiator Air, No.2	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
16711-78290	Shroud, Fan	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
87263-37170	Bracket, Heater Water Pipe, No.1	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90080-11347	New Genuine Part	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90119-06182	Bolt, W/washer (For Floor Shift)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90119-06960	BOLT WWASHER	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90179-06293	NUT	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90464-00840	New Genuine Part	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90467-07206	Clip	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90467-07206-C0	Clip	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90467-13020	Clamp Or Clip(For Radiator Reserve Tank Hose No.2)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
91511-60612	BOLT	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
94151-20841	Nut	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
94151-80800	Nut (For Transmission Control Cable)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([08.2011 - ] (1108- )N04C..XZU775)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 217
Collected: 2026-08-03
