XZU775

Toyota DYNA-TOYOACE · 2011 · 3,473 parts · 217 categories

3,473 items

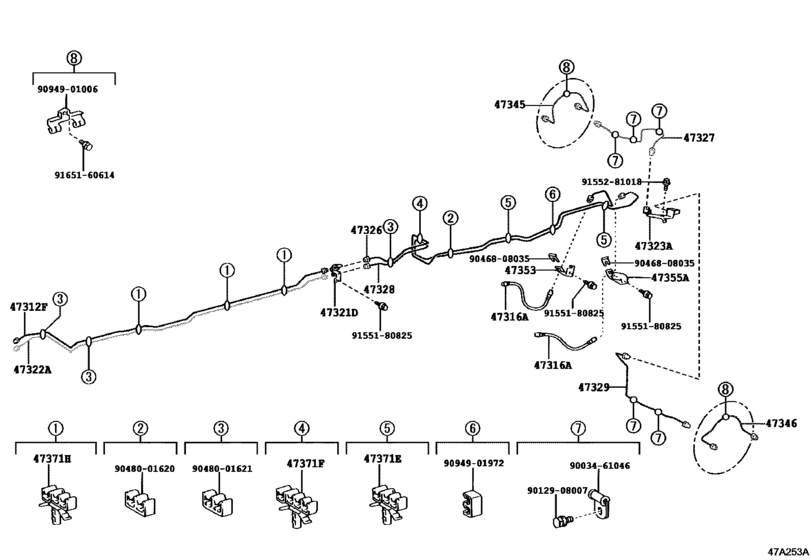

Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775) 27

#	OEM	Part name
47312	47312-37630	Tube, Front Brake, Frame, No.2
47316	90947-02B29	Hose, Flexible(For Rear Brake Tube)
47321	90412-10229	Way, No.1(For Rear Brake Tube)
47322	47322-37660	Tube, Rear Brake, Frame No.2
47323	90412-12051	Way, No.3(For Rear Brake Tube)
47326	47326-37660	Tube, Rear Brake, No.6
47327	47327-37340	Tube, Rear Brake, No.7
47327	47327-37880	Tube, Rear Brake, No.7
47328	47328-37520	Tube, Rear Brake, No.8
47329	47329-37200	Tube, Rear Brake, No.9
47329	47329-37660	Tube, Rear Brake, No.9
47345	47345-36050	Tube, Wheel Cylinder, Rear Rh
47353	47353-37110	Bracket, Flexible Hose(For Rear)
47355	47353-37240	Bracket, Flexible Hose, Front Rh No.2
47371	90959-01594	Clamp, Brake Tube, No.9
47371	90959-01593	Clamp, Brake Tube, No.6
9003461046	90034-61046	New Genuine Part
9012908007	90129-08007	New Genuine Part
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001620	90480-01620	Grommet, No.1(For Front Brake Tube)
9048001621	90480-01621	Grommet(For Front Brake Tube)
9094901006	90949-01006	CLAMP
9094901972	90949-01972	Grommet, No.1(For Front Brake Tube)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9155281018	91552-81018	New Genuine Part
9165160614	91651-60614	Bolt

OEM	Part name	Category
47312-37630	Tube, Front Brake, Frame, No.2	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47322-37660	Tube, Rear Brake, Frame No.2	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47326-37660	Tube, Rear Brake, No.6	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47327-37340	Tube, Rear Brake, No.7	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47327-37880	Tube, Rear Brake, No.7	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47328-37520	Tube, Rear Brake, No.8	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47329-37200	Tube, Rear Brake, No.9	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47329-37660	Tube, Rear Brake, No.9	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47345-36050	Tube, Wheel Cylinder, Rear Rh	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47353-37110	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
47353-37240	Bracket, Flexible Hose, Front Rh No.2	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90034-61046	New Genuine Part	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90129-08007	New Genuine Part	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90412-10229	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90412-12051	Way, No.3(For Rear Brake Tube)	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90468-08035	CLIP	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90480-01620	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90480-01621	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90947-02B29	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90949-01006	CLAMP	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90949-01972	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90959-01593	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
90959-01594	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
91551-80825	Bolt(For Cylinder Head Set Sub)	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
91552-81018	New Genuine Part	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
91651-60614	Bolt	Brake Tube & Clamp ([05.2016 - ] (1605- )XZU775)
