Search › Model › XZU775

XZU775

Toyota DYNA-TOYOACE · 2011 · 3,473 parts · 217 categories

3,473 items

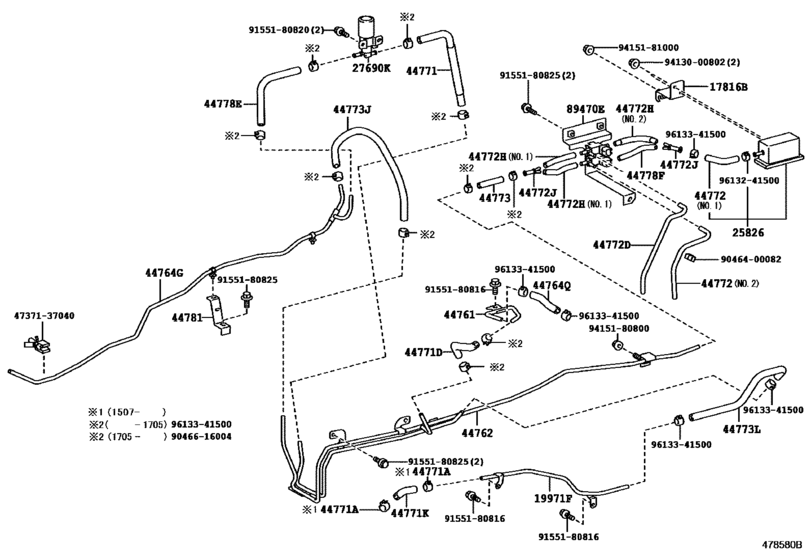

Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775) 43

#	OEM	Part name
17816	17816-78011	Bracket, Air Filter, No.1
19971	19971-78280	Pipe, Vacuum
19971	19971-78281	Pipe, Vacuum
25826	25826-78011	Filter, No.1
27690	27690-78160	Solenoid Assy, W/bracket(For Exhaust Brake)
44761	44761-37580	Tube, Intake Manifold Or Vacuum Pump To Connector
44762	44702-37570	Tube, Booster Vacuum
44762	44702-37571	Tube, Booster Vacuum
44764	44764-37A10	Tube, Connector To Brake Booster
44764	44764-37A11	Tube, Connector To Brake Booster
44764	95446-09120	Hose, Vacuum Pump
44771	44771-37B50	Hose, Vacuum Tube Connector
44771	44771-37B51	Hose, Vacuum Tube Connector
44771	44783-37020	Clip(For Vacuum Tube Connector Hose)
44771	44771-37A20	Hose, Vacuum Tube Connector
44771	44771-37A60	Hose, Vacuum Tube Connector
44771	44771-37A61	Hose, Vacuum Tube Connector
44772	44772-37080	Hose, Check Valve To Connector Tube
44772	44772-37120	Hose, Check Valve To Connector Tube
44772	44772-37130	Hose, Check Valve To Actuator
44772	44772-37140	Hose, Check Valve To 3 Way
44772	44772-37160	Hose, Check Valve To 3 Way
44772	90413-05007	Way, 3(For Vacuum Check Valve To 3 Way Hose)
44773	44771-37730	Hose, Vacuum Tube Connector
44773	95446-09400	Hose, Vacuum, No.2
44773	44773-37450	Hose, Solenoid To Exhaust Retarder
44778	95446-09180	Hose, Vacuum, No.1
44778	95446-09230	Hose, Vacuum Brake
44778	90999-92002	Air Hose (300 mm)
44781	44781-37150	Bracket, Hose
89470	89470-37092	Valve Assy, Vacuum Switching W/bracket, No.1
4737137040	47371-37040	Clamp(For Clutch Tube)
9046400082	90464-00082	Clamp(For Resistive Cord)
9046616004	90466-16004	Clip(For Ventilation Hose No.2)
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9415180800	94151-80800	Nut (For Transmission Control Cable)
9415181000	94151-81000	NUT FLANGE
9613241500	96132-41500	Clip(For Ventilation Tube)
9613341500	96133-41500	Clamp Or Clip(For Air Hose, No.5)

OEM	Part name	Category
17816-78011	Bracket, Air Filter, No.1	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
19971-78280	Pipe, Vacuum	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
19971-78281	Pipe, Vacuum	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
25826-78011	Filter, No.1	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
27690-78160	Solenoid Assy, W/bracket(For Exhaust Brake)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44702-37570	Tube, Booster Vacuum	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44702-37571	Tube, Booster Vacuum	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44761-37580	Tube, Intake Manifold Or Vacuum Pump To Connector	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44764-37A10	Tube, Connector To Brake Booster	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44764-37A11	Tube, Connector To Brake Booster	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44771-37730	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44771-37A20	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44771-37A60	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44771-37A61	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44771-37B50	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44771-37B51	Hose, Vacuum Tube Connector	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44772-37080	Hose, Check Valve To Connector Tube	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44772-37120	Hose, Check Valve To Connector Tube	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44772-37130	Hose, Check Valve To Actuator	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44772-37140	Hose, Check Valve To 3 Way	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44772-37160	Hose, Check Valve To 3 Way	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44773-37450	Hose, Solenoid To Exhaust Retarder	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44781-37150	Bracket, Hose	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
44783-37020	Clip(For Vacuum Tube Connector Hose)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
47371-37040	Clamp(For Clutch Tube)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
89470-37092	Valve Assy, Vacuum Switching W/bracket, No.1	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
90170-A0001	New Genuine Part	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
90413-05007	Way, 3(For Vacuum Check Valve To 3 Way Hose)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
90464-00082	Clamp(For Resistive Cord)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
90466-16004	Clip(For Ventilation Hose No.2)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
90999-92002	Air Hose (300 mm)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
91551-80825	Bolt(For Cylinder Head Set Sub)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
94151-80800	Nut (For Transmission Control Cable)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
94151-81000	NUT FLANGE	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
95446-09120	Hose, Vacuum Pump	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
95446-09180	Hose, Vacuum, No.1	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
95446-09230	Hose, Vacuum Brake	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
95446-09400	Hose, Vacuum, No.2	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
96132-41500	Clip(For Ventilation Tube)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)
96133-41500	Clamp Or Clip(For Air Hose, No.5)	Brake Booster & Vacuum Tube ([12.2011 - ] (1112- )XZU775)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 217
Collected: 2026-08-03
