XZU775

Toyota DYNA-TOYOACE · 2011 · 3,473 parts · 217 categories

← Back to categories

3,473 items

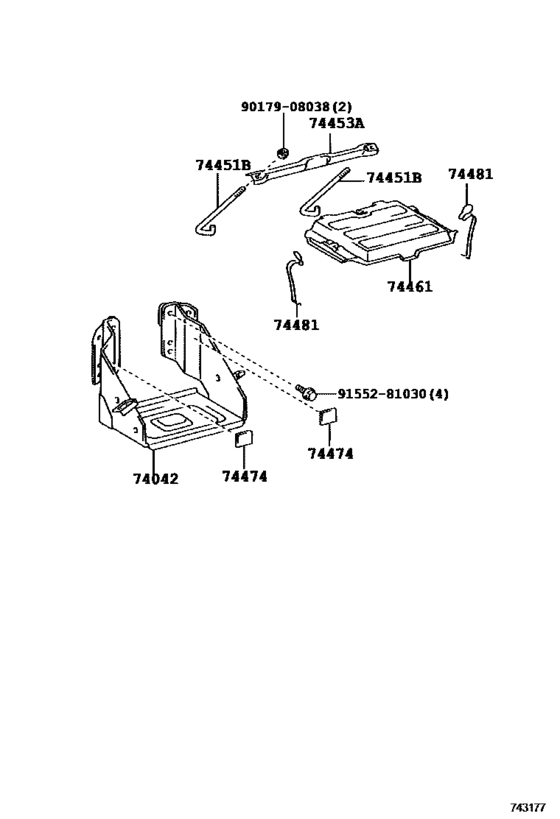

Battery Carrier ([08.2011 - ] (1108- )XZU775) 14

#	OEM	Part name
74042	74042-37110	Bracket Sub-Assy, Battery
74042	74042-37120	Bracket Sub-Assy, Battery
74451	74451-37011	Bolt, Battery Clamp
74451	74451-37021	Bolt, Battery Clamp
74451	74451-37022	Bolt, Battery Clamp
74453	74453-36070	Bar, Battery Set Plate
74453	74453-37131	Bar, Battery Set Plate
74461	74461-37020	Cover, Battery
74461	74461-37030	Cover, Battery
74461	74461-37040	Cover, Battery
74474	74475-36040	Pad, Battery
74481	74481-36030	Clamp Sub-Assy, Battery Cover
9017908038	90179-08038	Nut
9155281030	91552-81030	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)

OEM	Part name	Category
74042-37110	Bracket Sub-Assy, Battery	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74042-37120	Bracket Sub-Assy, Battery	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74451-37011	Bolt, Battery Clamp	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74451-37021	Bolt, Battery Clamp	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74451-37022	Bolt, Battery Clamp	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74453-36070	Bar, Battery Set Plate	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74453-37131	Bar, Battery Set Plate	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74461-37020	Cover, Battery	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74461-37030	Cover, Battery	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74461-37040	Cover, Battery	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74475-36040	Pad, Battery	Battery Carrier ([08.2011 - ] (1108- )XZU775)
74481-36030	Clamp Sub-Assy, Battery Cover	Battery Carrier ([08.2011 - ] (1108- )XZU775)
90179-08038	Nut	Battery Carrier ([08.2011 - ] (1108- )XZU775)
91552-81030	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Battery Carrier ([08.2011 - ] (1108- )XZU775)
