| 48042-37060 |
Shackle Sub-Assy, Rear Spring, No.2 |

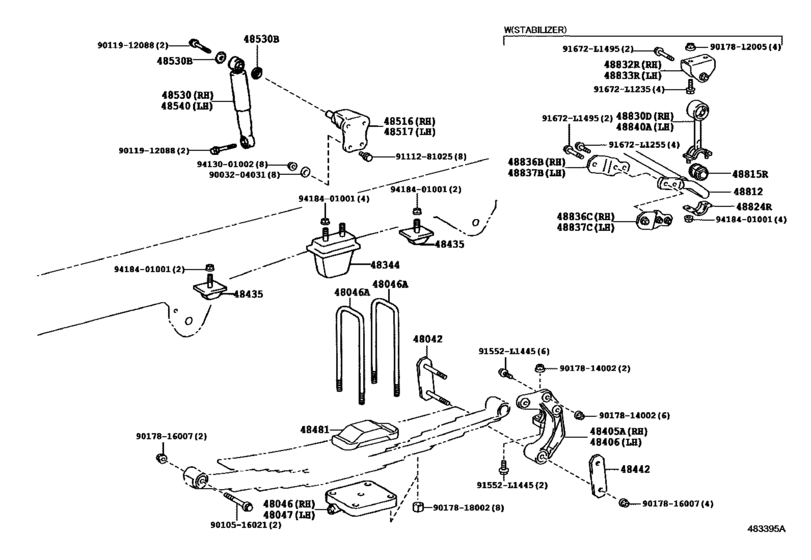

Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48344-37280 |
Stopper, Bumper, Rear |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48405-37010 |
Bracket Sub-Assy, Spring, No.4 Rh |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48406-37010 |
Bracket Sub-Assy, Spring, No.4 Lh |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48435-37030 |
Attachment, Helper Spring Bracket, No.1 |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48442-37080 |
Shackle, Spring, No.2 |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48481-37130 |
Seat, Rear Spring, Upper |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48505-37052 |
Bracket, Rear Shock Absorber, Upper Rh |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48531-37201 |
Absorber Assy, Shock, Rear Rh |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48531-37202 |
ABSORBER SHOCK RR |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48809-37060 |
Bracket, Rear Stabilizer End, Outer Rh |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48812-37080 |
Bar, Stabilizer, Rear |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48815-37090 |
Bush, Stabilizer(For Rear) |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48824-37061 |
Bracket, Front Stabilizer, No.1 |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48830-37031 |
Link Assy, Rear Stabilizer, Rh |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48832-37040 |
Bracket, Rear Stabilizer Bar, No.1 Rh |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 48836-37060 |
Bracket, Rear Stabilizer End, Inner Rh |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90032-04031 |
Washer (F0R Front Propeller Shaft) |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90105-16021 |
BOLT |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90117-18019 |
Bolt, U(For Rear Spring) |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90119-12088 |
BOLT |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90178-12005 |
New Genuine Part |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90178-14002 |
NUT, FLANGE |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90178-16007 |
Nut |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90178-18002 |
NUT FLANGE |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90178-A0118 |
Nut |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 90948-03011 |
Washer, Front Shock Absorber Cushion, No.1 |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 91112-81025 |
New Genuine Part |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 91552-L1445 |
New Genuine Part |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 91672-L1235 |
New Genuine Part |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 91672-L1255 |
New Genuine Part |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 91672-L1495 |
Bolt |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 94130-01002 |
Nut, Booster Sleeve Cylinder |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
| 94184-01001 |
Nut |
Rear Spring & Shock Absorber ([07.2011 - ] SHAKLE BUSH = TENSION RUBBER TYPE (1107- )WU710,XZU720,730..6F ; (1107- )WU7 20,XZU710..EUR,GCC) |
