Search › Model › XZU710

XZU710

Toyota DYNA-TOYOACE · 2011 · 3,127 parts · 218 categories

← Back to categories

3,127 items

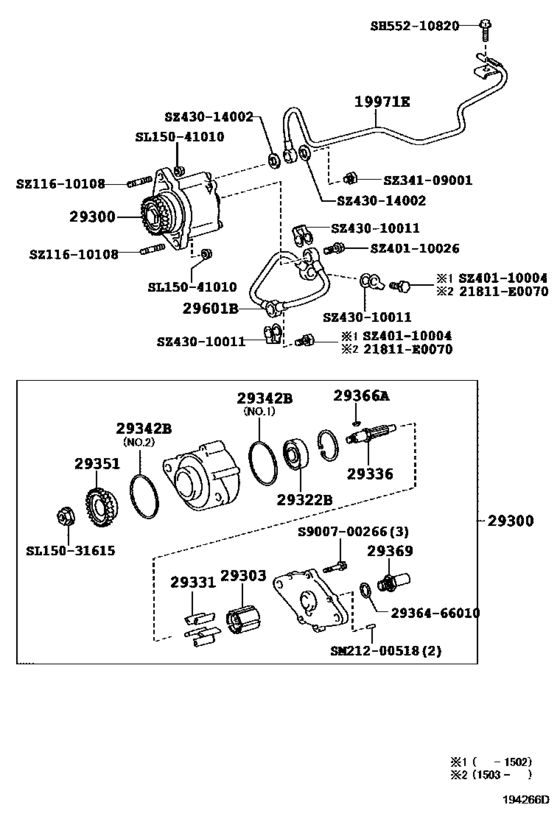

Vacuum Pump ([05.2016 - ] (1605- )N04C..XZU710,720..SCB..MTM..65T,85T) 5

#	OEM	Part name
19971	87207-E0051	Pipe, Vacuum
29300	29300-E0090	Pump Assy, Vacuum
29601	29601-E0320	Pipe Sub-Assy, Oil(For Vacuum Pump)
2936466010	29364-66010	Washer, Vacuum Pump
9223372036854775807	21811-E0070	Bolt, Union(For Fuel Return Pipe)

OEM	Part name	Category
21811-E0070	Bolt, Union(For Fuel Return Pipe)	Vacuum Pump ([05.2016 - ] (1605- )N04C..XZU710,720..SCB..MTM..65T,85T)
29300-E0090	Pump Assy, Vacuum	Vacuum Pump ([05.2016 - ] (1605- )N04C..XZU710,720..SCB..MTM..65T,85T)
29364-66010	Washer, Vacuum Pump	Vacuum Pump ([05.2016 - ] (1605- )N04C..XZU710,720..SCB..MTM..65T,85T)
29601-E0320	Pipe Sub-Assy, Oil(For Vacuum Pump)	Vacuum Pump ([05.2016 - ] (1605- )N04C..XZU710,720..SCB..MTM..65T,85T)
87207-E0051	Pipe, Vacuum	Vacuum Pump ([05.2016 - ] (1605- )N04C..XZU710,720..SCB..MTM..65T,85T)

Source: Public OEM parts-catalog data
Variants: 2 / 58
Category: 218
Collected: 2026-08-03
