XZU710

Toyota DYNA-TOYOACE · 2011 · 3,127 parts · 218 categories

3,127 items

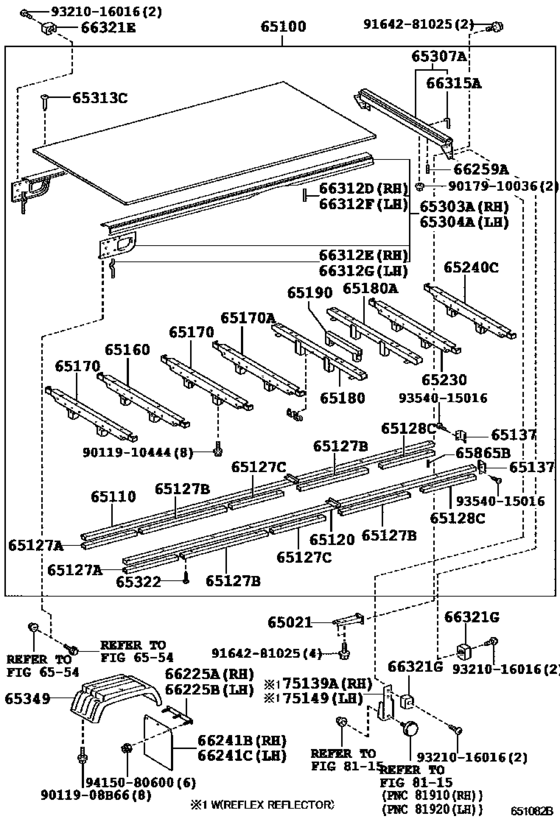

Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU) 37

#	OEM	Part name
65100	65100-3VJ41	Floor Assy, Rear Body
65110	65110-37L40	Sill Assy, Main, Rh
65120	65120-37L40	Sill Assy, Main, Lh
65127	65127-37880	Shim, Main Sill, Lower No.1
65127	65127-37850	Shim, Main Sill, Lower No.1
65127	65127-37730	Shim, Main Sill, Lower No.1
65128	65128-37760	Shim, Main Sill, Lower No.1
65137	65137-37060	Cover, Main Sill End
65160	65160-37620	Sill Assy, Cross, No.2
65170	65170-37440	Sill Assy, Cross, No.2
65180	65180-37851	Sill Assy, Cross, No.4
65180	65180-37861	Sill Assy, Cross, No.6
65190	65190-37290	Sill Assy, Cross, No.5
65303	65303-37J12	Frame Sub-Assy, Floor Side, Rh
65304	65304-37G82	Frame Sub-Assy, Floor Side, Lh
65307	65307-37A81	Frame Sub-Assy, Floor, Rear
65313	90149-50065	Screw(For Floor Board)
65322	65322-92820	Nail
65349	65349-37041	Fender, Floor Side
65865	65865-37020	Pin, Cover Top Guide
66225	66242-37271	Support, Baffle Rubber
66225	66242-37281	Support, Baffle Rubber
66241	66241-37C32	Baffle, Rubber
66241	66241-37D20	Baffle, Rubber
66259	66259-37010	Cover, Rear Body Floor, Rear
66312	66311-37020	Hook, Rope
66312	66312-37020	Hook, Rope, No.2
66315	66315-37010	Hook, Rope, No.1
66321	66321-37030	Bumper, Gate Rubber
75139	75139-37070	Bracket, Reflex Reflector, Rh
9011908	90119-08B66	BOLT WWASHER
9011910444	90119-10444	Bolt, No.1 (For Center Support Bearing)
9017910036	90179-10036	NUT
9164281025	91642-81025	BOLT WWASHER
9321016016	93210-16016	SCREW
9354015016	93540-15016	New Genuine Part
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
65100-3VJ41	Floor Assy, Rear Body	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65110-37L40	Sill Assy, Main, Rh	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65120-37L40	Sill Assy, Main, Lh	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65127-37730	Shim, Main Sill, Lower No.1	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65127-37850	Shim, Main Sill, Lower No.1	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65127-37880	Shim, Main Sill, Lower No.1	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65128-37760	Shim, Main Sill, Lower No.1	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65137-37060	Cover, Main Sill End	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65160-37620	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65170-37440	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65180-37851	Sill Assy, Cross, No.4	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65180-37861	Sill Assy, Cross, No.6	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65190-37290	Sill Assy, Cross, No.5	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65303-37J12	Frame Sub-Assy, Floor Side, Rh	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65304-37G82	Frame Sub-Assy, Floor Side, Lh	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65307-37A81	Frame Sub-Assy, Floor, Rear	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65322-92820	Nail	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65349-37041	Fender, Floor Side	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
65865-37020	Pin, Cover Top Guide	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66241-37C32	Baffle, Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66241-37D20	Baffle, Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66242-37271	Support, Baffle Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66242-37281	Support, Baffle Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66259-37010	Cover, Rear Body Floor, Rear	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66311-37020	Hook, Rope	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66312-37020	Hook, Rope, No.2	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66315-37010	Hook, Rope, No.1	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
66321-37030	Bumper, Gate Rubber	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
75139-37070	Bracket, Reflex Reflector, Rh	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
90119-08B66	BOLT WWASHER	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
90119-10444	Bolt, No.1 (For Center Support Bearing)	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
90149-50065	Screw(For Floor Board)	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
90179-10036	NUT	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
91642-81025	BOLT WWASHER	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
93210-16016	SCREW	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
93540-15016	New Genuine Part	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
94150-80600	NUT FLANGE	Rear Body Floor & Fender ([07.2011 - ] (1107- )WU710,XZU710..65T,75T..CBU)
