Search › Model › XZU710

XZU710

Toyota DYNA-TOYOACE · 2011 · 3,127 parts · 218 categories

3,127 items

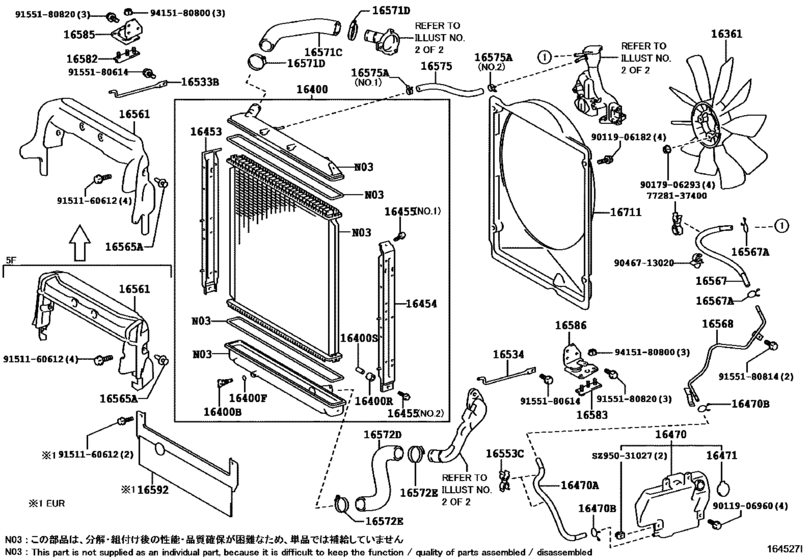

Radiator & Water Outlet ([07.2011 - ] (1107- )N04C) 42

#	OEM	Part name
16361	16361-78100	Fan
16400	16400-78A30	Radiator Assy
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	96711-19007	Packing(For Radiator Drain Cock)
16400	16444-78100	Bushing(For Radiator)
16400	16445-78100	Collar(For Radiator)
16453	16453-78A30	Plate, Radiator Side
16454	16454-78A30	Plate, Radiator Side
16455	91651-40830	Bolt, Radiator Side Support Plate
16455	91651-B0820	Bolt, Radiator Side Support Plate
16455	90080-11347	New Genuine Part
16470	16470-78090	Tank Assy, Radiator Reserve
16470	16567-78370	Hose(For Radiator Reserve Tank)
16470	90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)
16471	16405-78070	Cap Sub-Assy, Reserve Tank
16533	16533-78041	Support, Radiator, No.1
16534	16534-78041	Support, Radiator, No.2
16553	16581-78110	Clamp, Hose
16561	16561-78120	Seal, Radiator To Support, No.1
16565	90467-07206-C0	Clip
16568	16568-78030	Pipe, Radiator To Reserve Tank
16571	16571-78311	Hose, Radiator, No.1
16571	16581-78151	Clip, Radiator Hose, No.1
16572	16572-78172	Hose, Radiator, No.2
16575	16575-78160	Hose, Radiator, No.5
16575	90467-15022	Clip Or Clamp(For Ventilation Hose)
16575	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16582	16582-78040	Bracket, Radiator, No.1
16583	16583-78040	Bracket, Radiator, No.2
16585	16585-78040	Bracket, Radiator, No.3
16586	16586-78080	Bracket, Radiator, No.4
16711	16711-78250	Shroud, Fan
7728137400	77281-37400	Bracket, Fuel Main Tube, No.1
9011906182	90119-06182	Bolt, W/washer (For Floor Shift)
9011906960	90119-06960	BOLT WWASHER
9017906293	90179-06293	NUT
9046713020	90467-13020	Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9151160612	91511-60612	BOLT
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
16361-78100	Fan	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16400-78A30	Radiator Assy	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16405-78070	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16444-78100	Bushing(For Radiator)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16445-78100	Collar(For Radiator)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16453-78A30	Plate, Radiator Side	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16454-78A30	Plate, Radiator Side	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16470-78090	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16533-78041	Support, Radiator, No.1	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16534-78041	Support, Radiator, No.2	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16561-78120	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16567-78370	Hose(For Radiator Reserve Tank)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16568-78030	Pipe, Radiator To Reserve Tank	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16571-78311	Hose, Radiator, No.1	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16572-78172	Hose, Radiator, No.2	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16575-78160	Hose, Radiator, No.5	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16581-78110	Clamp, Hose	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16581-78151	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16582-78040	Bracket, Radiator, No.1	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16583-78040	Bracket, Radiator, No.2	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16585-78040	Bracket, Radiator, No.3	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16586-78080	Bracket, Radiator, No.4	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
16711-78250	Shroud, Fan	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
77281-37400	Bracket, Fuel Main Tube, No.1	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
90080-11347	New Genuine Part	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
90119-06182	Bolt, W/washer (For Floor Shift)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
90119-06960	BOLT WWASHER	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
90179-06293	NUT	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
90467-07206-C0	Clip	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
90467-13020	Clamp Or Clip(For Radiator Reserve Tank Hose No.2)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
91511-60612	BOLT	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
91651-40830	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
94151-80800	Nut (For Transmission Control Cable)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([07.2011 - ] (1107- )N04C)
