Search › Model › XZU710
XZU710

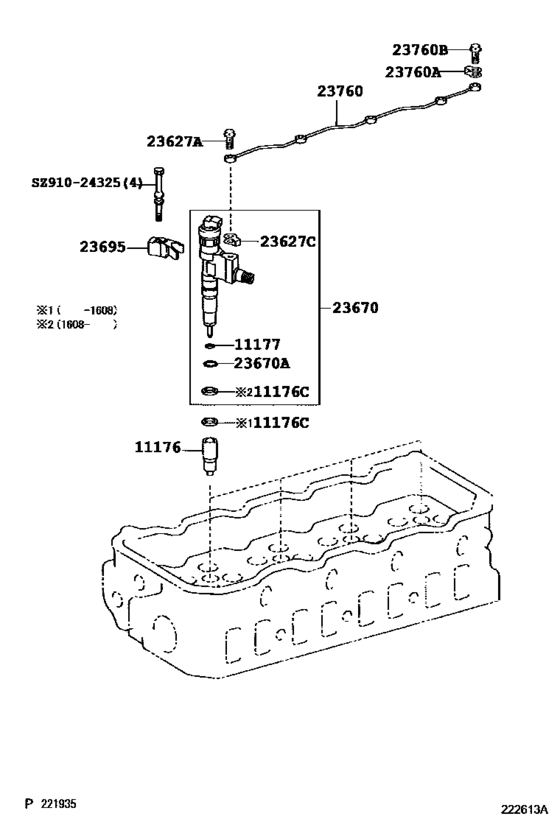

Injection Nozzle ([07.2011 - ] (1107- )N04C) 8
| # | OEM | Part name |
|---|---|---|
| 11177 | 23682-E0050 | Gasket, Injection Nozzle Seat |
| 23627 | 21811-E0050 | Screw, Follow(For Nozzle) |
| 23670 | 23670-E9271 | Injector Assy |
| 23670 | 23670-E9272 | Injector Assy |
| 23670 | 23670-E9273 | Injector Assy |
| 23670 | 15518-E0010 | Ring, O(For Water Outlet Housing) |
| 23670 | 15518-E0011 | Ring, O(For Injector Assy) |
| 23760 | 21811-E0060 | Bolt, Union(For Nozzle Lekage Pipe No.3) |
| OEM | Part name | Category |
|---|---|---|
| 15518-E0010 | Ring, O(For Water Outlet Housing) | Injection Nozzle ([07.2011 - ] (1107- )N04C) |
| 15518-E0011 | Ring, O(For Injector Assy) | Injection Nozzle ([07.2011 - ] (1107- )N04C) |
| 21811-E0050 | Screw, Follow(For Nozzle) | Injection Nozzle ([07.2011 - ] (1107- )N04C) |
| 21811-E0060 | Bolt, Union(For Nozzle Lekage Pipe No.3) | Injection Nozzle ([07.2011 - ] (1107- )N04C) |
| 23670-E9271 | Injector Assy | Injection Nozzle ([07.2011 - ] (1107- )N04C) |
| 23670-E9272 | Injector Assy | Injection Nozzle ([07.2011 - ] (1107- )N04C) |
| 23670-E9273 | Injector Assy | Injection Nozzle ([07.2011 - ] (1107- )N04C) |
| 23682-E0050 | Gasket, Injection Nozzle Seat | Injection Nozzle ([07.2011 - ] (1107- )N04C) |
