Search › Model › XZU710

XZU710

Toyota DYNA-TOYOACE · 2011 · 3,127 parts · 218 categories

3,127 items

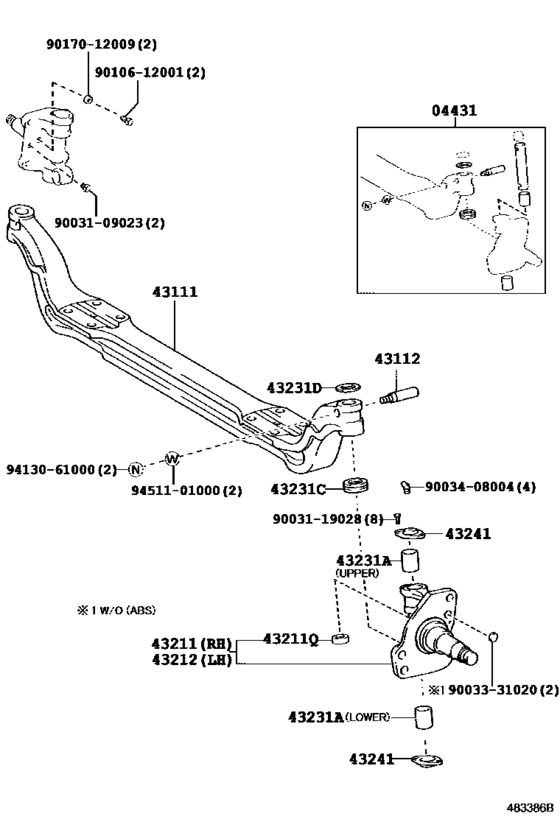

Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730) 43

#	OEM	Part name
43111	43111-37051	I Beam, Front Axle
43111	43111-37080	I Beam, Front Axle
43112	43112-36020	Pin, King Pin Lock
43112	43112-36030	Pin, King Pin Lock
43211	43201-37061	Knuckle, Steering, Rh
43211	43201-37100	Knuckle, Steering, Rh
43211	43201-37110	Knuckle, Steering, Rh
43211	43201-37120	Knuckle, Steering, Rh
43211	90311-35012	Seal, Oil (For Steering Knuckle)
43212	43202-37061	Knuckle, Steering, Lh
43212	43202-37100	Knuckle, Steering, Lh
43212	43202-37110	Knuckle, Steering, Lh
43212	43202-37120	Knuckle, Steering, Lh
43231	90384-35013	Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)
43231	90384-35014	Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)
43231	90999-73086	Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)
43231	90367-28001	Bearing (For Steering Knuckle King Pin)
43231	90367-35001	Bearing (For Steering Knuckle King Pin)
43231	90032-09022	Shim (For King Pin)
43231	90032-09023	Shim (For King Pin)
43231	90032-09024	Shim (For King Pin)
43231	90032-09025	Shim (For King Pin)
43231	90032-09026	Shim (For King Pin)
43231	90032-09027	Shim (For King Pin)
43231	90032-09028	Shim (For King Pin)
43231	90032-09029	Shim (For King Pin)
43231	90564-28001	Shim (For King Pin)
43231	90564-28002	Shim (For King Pin)
43231	90564-28003	Shim (For King Pin)
43231	90564-28004	Shim (For King Pin)
43231	90564-28005	Shim (For King Pin)
43231	90564-28006	Shim (For King Pin)
43231	90564-28007	Shim (For King Pin)
43231	90564-28008	Shim (For King Pin)
43241	43241-36010	Cover, Steering Kunckle Oil Seal
9003109023	90031-09023	New Genuine Part
9003119028	90031-19028	New Genuine Part
9003331020	90033-31020	Plug, Tight, No.3
9003408004	90034-08004	Nipple, Grease(For Front Spring Bracket, Front Pin)
9010612001	90106-12001	Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)
9017012009	90170-12009	Nut(For Front Support To Front Shock Absorber)
9413061000	94130-61000	Nut(For Clutch Pedal Stopper)
9451101000	94511-01000	Washer(For Rear Drive Shaft)

OEM	Part name	Category
43111-37051	I Beam, Front Axle	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43111-37080	I Beam, Front Axle	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43112-36020	Pin, King Pin Lock	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43112-36030	Pin, King Pin Lock	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43201-37061	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43201-37100	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43201-37110	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43201-37120	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43202-37061	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43202-37100	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43202-37110	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43202-37120	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
43241-36010	Cover, Steering Kunckle Oil Seal	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90031-09023	New Genuine Part	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90031-19028	New Genuine Part	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90032-09022	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90032-09023	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90032-09024	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90032-09025	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90032-09026	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90032-09027	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90032-09028	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90032-09029	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90033-31020	Plug, Tight, No.3	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90034-08004	Nipple, Grease(For Front Spring Bracket, Front Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90106-12001	Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90170-12009	Nut(For Front Support To Front Shock Absorber)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90311-35012	Seal, Oil (For Steering Knuckle)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90367-28001	Bearing (For Steering Knuckle King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90367-35001	Bearing (For Steering Knuckle King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90384-35013	Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90384-35014	Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90564-28001	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90564-28002	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90564-28003	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90564-28004	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90564-28005	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90564-28006	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90564-28007	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90564-28008	Shim (For King Pin)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
90999-73086	Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
94130-61000	Nut(For Clutch Pedal Stopper)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
94511-01000	Washer(For Rear Drive Shaft)	Front Axle Arm & Steering Knuckle ([07.2011 - ] LEAF SPRING BUSH=RUBBER TYPE (1107- )WU710..GEN ; (1107- )WU710..85T ; (1107- )WU720,XZU710,720,730)
