Search › Model › XZU710
XZU710

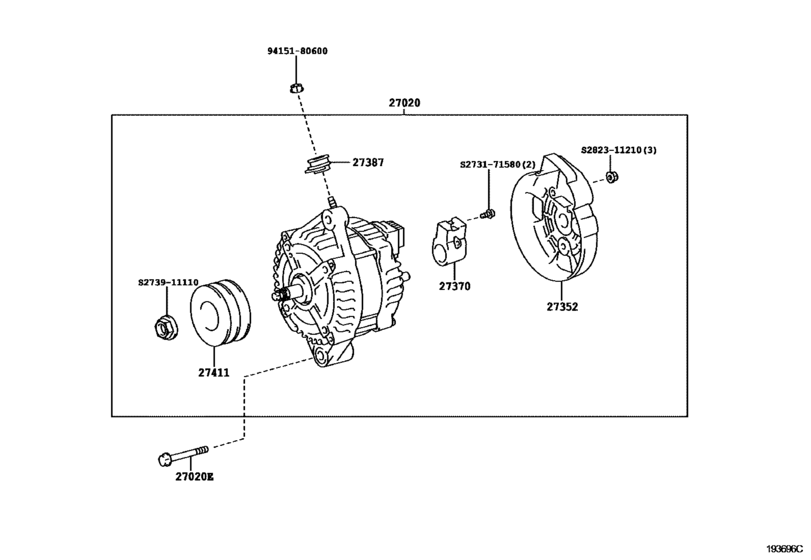

Alternator ([07.2011 - ] 24V 80A (1107-1505)N04C..XZU710..CBU ; (1107- )N04C.. MTM) 5
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-78210 | Alternator Assy |
| 27020 | 27060-E0320 | Alternator Assy |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27387 | 27387-42021 | Insulator, Terminal |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 27060-78210 | Alternator Assy | Alternator ([07.2011 - ] 24V 80A (1107-1505)N04C..XZU710..CBU ; (1107- )N04C.. MTM) |
| 27060-E0320 | Alternator Assy | Alternator ([07.2011 - ] 24V 80A (1107-1505)N04C..XZU710..CBU ; (1107- )N04C.. MTM) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([07.2011 - ] 24V 80A (1107-1505)N04C..XZU710..CBU ; (1107- )N04C.. MTM) |
| 27387-42021 | Insulator, Terminal | Alternator ([07.2011 - ] 24V 80A (1107-1505)N04C..XZU710..CBU ; (1107- )N04C.. MTM) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Alternator ([07.2011 - ] 24V 80A (1107-1505)N04C..XZU710..CBU ; (1107- )N04C.. MTM) |
