Search › Model › XZU700
XZU700

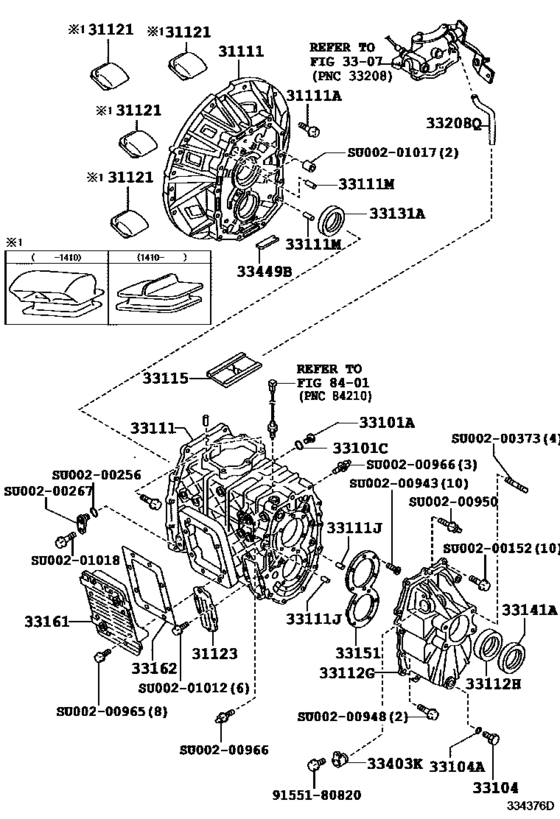

Clutch Housing & Transmission Case (Mtm) ([07.2011 - ] MZZ6R (1107- )DCRTL) 5
| # | OEM | Part name |
|---|---|---|
| 31111 | 90119-10898 | Bolt(For Clutch Housing & Transmission Case Setting) |
| 31121 | 31121-28041 | Cover, Clutch Housing, No.1 |
| 31121 | 31121-37030 | Cover, Clutch Housing, No.1 |
| 33403 | 33482-37130 | Cover Sub-Assy, Speedometer Driven Hole |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| OEM | Part name | Category |
|---|---|---|
| 31121-28041 | Cover, Clutch Housing, No.1 | Clutch Housing & Transmission Case (Mtm) ([07.2011 - ] MZZ6R (1107- )DCRTL) |
| 31121-37030 | Cover, Clutch Housing, No.1 | Clutch Housing & Transmission Case (Mtm) ([07.2011 - ] MZZ6R (1107- )DCRTL) |
| 33482-37130 | Cover Sub-Assy, Speedometer Driven Hole | Clutch Housing & Transmission Case (Mtm) ([07.2011 - ] MZZ6R (1107- )DCRTL) |
| 90119-10898 | Bolt(For Clutch Housing & Transmission Case Setting) | Clutch Housing & Transmission Case (Mtm) ([07.2011 - ] MZZ6R (1107- )DCRTL) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Clutch Housing & Transmission Case (Mtm) ([07.2011 - ] MZZ6R (1107- )DCRTL) |
