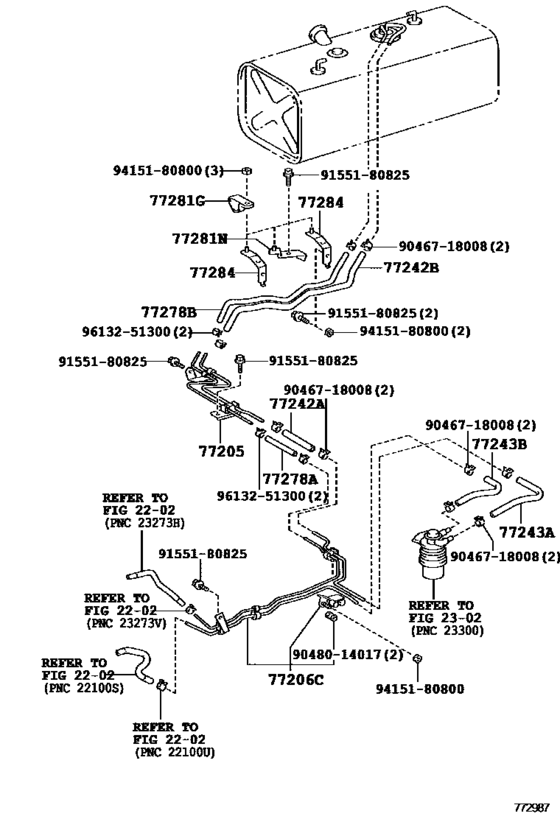

| 77205-37D80 |
Tube Sub-Assy, Fuel Main |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 77206-37J30 |
Tube Sub-Assy, Fuel Main, No.2 |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 77259-37730 |
Hose, Fuel, No.2 (For Main Tube, No.3) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 77259-37770 |
Hose, Fuel, No.1 (For Main Tube, No.2) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 77281-37150 |
Clamp, Fuel Hose |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 77281-37410 |
Clamp, Fuel Tube |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 90034-61051 |
Clamp, Fuel Hose |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 90467-18008 |
Clip(For Water By-Pass Hose No.2) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 90480-14017 |
New Genuine Part |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 91551-80825 |
Bolt(For Cylinder Head Set Sub) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 94151-80800 |
Nut (For Transmission Control Cable) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 95337-08020 |
Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 95337-08085 |
Hose, Fuel, No.1 (For Return Tube, No.2) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 95337-12016 |
Hose, Fuel, No.1 (For Main Tube, No.2) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 95337-12024 |
Hose, Fuel, No.2 (For Main Tube, No.2) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
| 96132-51300 |
Clip(For Ventilation Hose No.2) |
Fuel Tank & Tube ([07.2011 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1107- )XZU695..SCB) |
