Search › Model › XZU685

XZU685

Toyota DYNA-TOYOACE · 2011 · 3,895 parts · 237 categories

← Back to categories

3,895 items

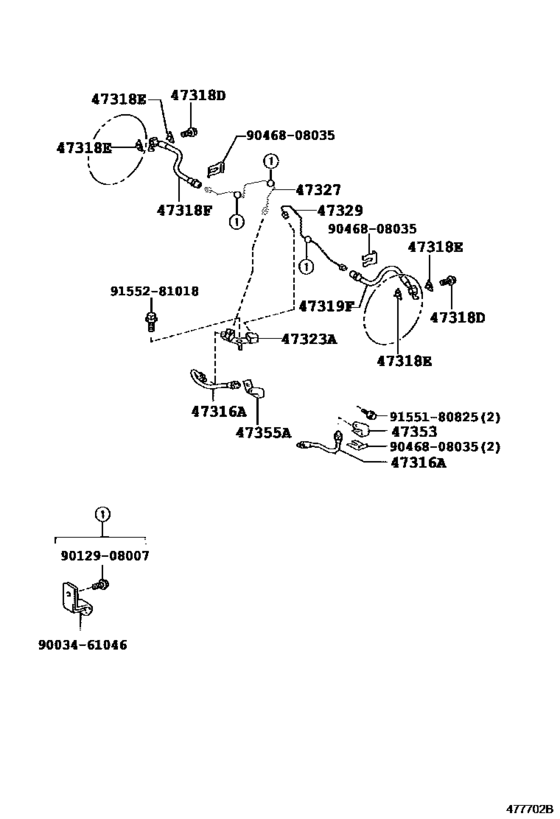

Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4) 18

#	OEM	Part name
47316	90947-02B29	Hose, Flexible(For Rear Brake Tube)
47318	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47318	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47318	90947-02F02	Hose, Flexible(For Rear Rh)
47319	90947-02F03	Hose, Flexible(For Rear Lh)
47323	90412-12051	Way, No.3(For Rear Brake Tube)
47327	47327-37340	Tube, Rear Brake, No.7
47327	47327-37880	Tube, Rear Brake, No.7
47329	47329-37200	Tube, Rear Brake, No.9
47329	47329-37660	Tube, Rear Brake, No.9
47353	47353-37110	Bracket, Flexible Hose(For Rear)
47355	47353-37240	Bracket, Flexible Hose, Front Rh No.2
9003461046	90034-61046	New Genuine Part
9012908007	90129-08007	New Genuine Part
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9155281018	91552-81018	New Genuine Part

OEM	Part name	Category
47327-37340	Tube, Rear Brake, No.7	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
47327-37880	Tube, Rear Brake, No.7	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
47329-37200	Tube, Rear Brake, No.9	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
47329-37660	Tube, Rear Brake, No.9	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
47353-37110	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
47353-37240	Bracket, Flexible Hose, Front Rh No.2	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90034-61046	New Genuine Part	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90129-08007	New Genuine Part	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90412-12051	Way, No.3(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90468-08035	CLIP	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90947-02B29	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90947-02F02	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
90947-02F03	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
91551-80825	Bolt(For Cylinder Head Set Sub)	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
91552-81018	New Genuine Part	Brake Tube & Clamp ([07.2011 - 05.2016] (1107-1605)XZU685,695 ; (1605-1705)XZU685..IV4)
