Search › Model › XZU610

XZU610

Toyota DYNA-TOYOACE · 2011 · 3,709 parts · 244 categories
XZU610 ×

← Back to categories

3,709 items

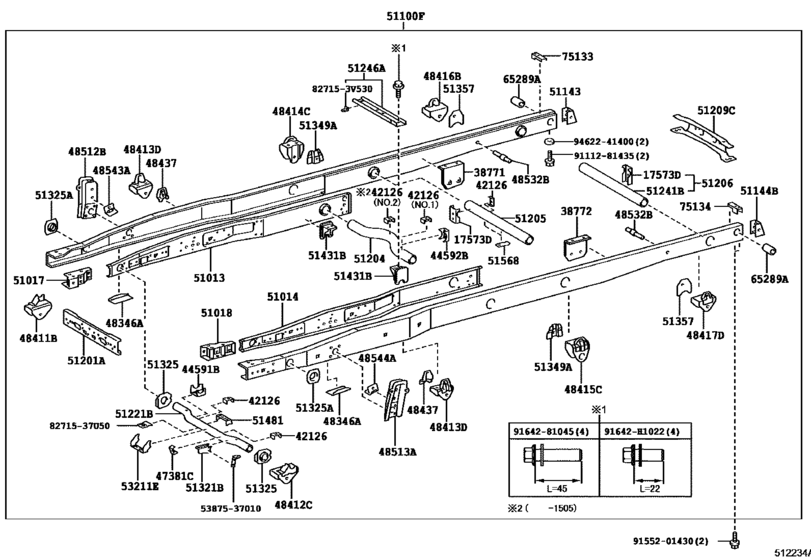

Frame ([07.2011 - ] (1107- )XZC610,XZU610,620) 60
#OEMPart name
17573 17573-78030 Bracket, Exhaust Pipe Support, No.3
38771 38771-37010 Stay, Trunnion Bracket, Rh
38772 38772-37010 Stay, Trunnion Bracket, Lh
42126 42126-37020 Attachment, Brake 3 Way
42126 42126-37070 Attachment, Brake 3 Way
44591 44591-37270 Bracket, Brake Actuator
44592 44592-37060 Bracket, Brake Actuator, No.2
44592 44592-37061 Bracket, Brake Actuator, No.2
47381 47381-37310 Bracket, Tube Clamp
48346 48346-37030 Stopper, Bumper, Fr
48411 48411-37051 Bracket, Spring, No.1 Rh
48412 48412-37041 Bracket, Spring, No.1 Lh
48413 48413-37050 Bracket, Spring, No.2
48414 48414-37080 Bracket, Spring, No.3 Rh
48416 48416-37070 Bracket, Spring, No.4 Rh
48437 48437-37010 Attachment, Spring Bracket
48512 48512-37050 Bracket, Front Shock Absorber, Upper Rh
48513 48512-37130 Bracket, Front Shock Absorber, Upper Lh
48532 48532-37010 Pin, Rear Shock Absorber Upper Pivot
48543 48543-37010 Reinforcement, Front Absorber Bracket, Rh
51013 51013-37341 Channel Sub-Assy, Side Rail, Inner Front Rh
51014 51014-37311 Channel Sub-Assy, Side Rail, Inner Front Lh
51017 51017-37050 Reinforcement Sub-Assy, Side Rail, No.1 Rh
51018 51018-37050 Reinforcement Sub-Assy, Side Rail, No.1 Lh
51100 51001-3VP00 Frame Sub-Assy
51100 51001-3VP01 Frame Sub-Assy
51100 51001-3VP02 Frame Sub-Assy
51100 51001-3VN90 Frame Sub-Assy
51100 51001-3VN91 Frame Sub-Assy
51100 51001-3VN92 Frame Sub-Assy
51143 51143-37030 Reinforcement, Side Rail, Rear Rh
51201 51201-37141 Crossmember Sub-Assy, Frame, Front
51201 51201-37142 Crossmember Sub-Assy, Frame, Front
51204 51231-37060 Crossmember Sub-Assy, Frame, No.3
51204 51231-37061 Crossmember Sub-Assy, Frame, No.3
51205 51241-37030 Crossmember Sub-Assy, Frame, No.3
51206 51205-37090 Crossmember Sub-Assy, Frame, No.4
51209 51291-37160 Crossmember Sub-Assy, Frame, Rear
51221 51221-37190 Crossmember, Front Suspension
51246 51022-37020 Member, Engine Rear Support
51246 51022-37010 Member, Engine Rear Support
51321 51321-37120 Gusset, Crossmember, No.2
51325 51325-37021 Retainer, Frame No.2 Crossmember
51325 51325-37040 Retainer, Frame No.2 Crossmember
51349 51349-37022 Reinforcement, Rear Spring Front Bracket, No.2
51357 51357-37030 Reinforcement, Rear Spring Rear Bracket, Rh
51431 51431-37030 Bracket, Engine Rear Mounting
51481 51481-37130 Bracket, Power Steering Tube Clamp
51568 51568-37620 Bracket, Propeller Shaft Guard
53211 53211-37090 Support, Radiator
65289 65289-37010 Support, Vessel Hinge
75133 75133-37030 Base, Combination Rear Lamp Bracket, Rh
91642 91642-H1022 BOLT W-WASHER
827153 82715-3V530 Bracket, Wiring Harness Clamp
8271537 82715-37U50 Bracket,wiring Harness Clamp
5387537010 53875-37010 Bracket, Air Duct Clamp
9111281435 91112-81435 Bolt(For Backing Plate To Steering Knuckle Setting)
9155201430 91552-01430 New Genuine Part
9164281045 91642-81045 BOLT WWASHER
9462241400 94622-41400 WASHER PLATE
