XZU504

Toyota DYNA-TOYOACE · 2006 · 3,994 parts · 206 categories

3,994 items

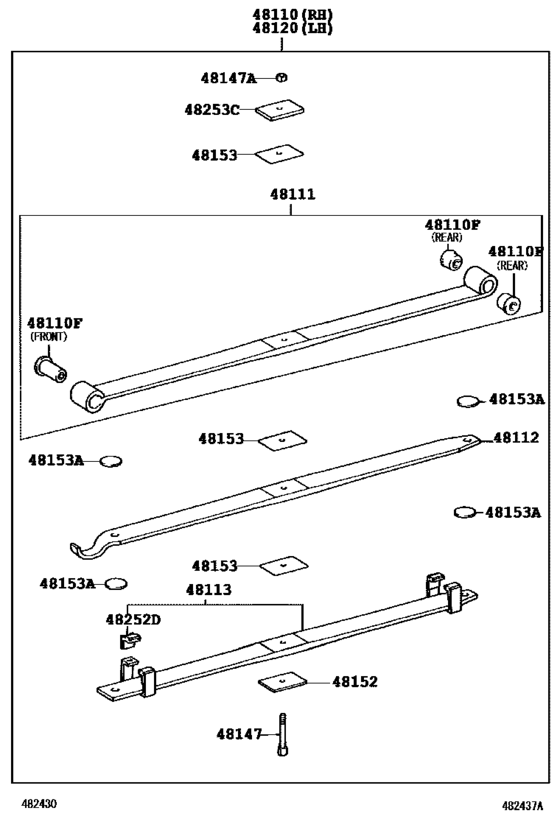

Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT) 44

#	OEM	Part name
48110	48110-37D50	Spring Assy, Front, Rh
48110	48110-37D51	Spring Assy, Front, Rh
48110	48110-37D90	Spring Assy, Front, Rh
48110	48110-37D91	Spring Assy, Front, Rh
48110	90389-16025	Bush, Front Spring No.2 Shackle
48110	90389-16026	Bush, Front Spring No.2 Shackle
48111	48101-37D50	Leaf, Front Spring, No.1
48111	48101-37A01	Leaf, Front Spring, No.1
48111	48101-37D60	Leaf, Front Spring, No.1
48111	48101-37A11	Leaf, Front Spring, No.1
48111	48101-37D90	Leaf, Front Spring, No.1
48111	48101-37D91	Leaf, Front Spring, No.1
48111	48101-37E00	Leaf, Front Spring, No.1
48111	48101-37E01	Leaf, Front Spring, No.1
48112	48102-37D50	Leaf, Front Spring, No.2
48112	48102-37A01	Leaf, Front Spring, No.2
48112	48252-37521	Silencer, Front Spring, No.1
48112	48102-37D60	Leaf, Front Spring, No.2
48112	48102-37A11	Leaf, Front Spring, No.2
48112	48112-37D90	Leaf, Front Spring, No.2
48112	48112-37D91	Leaf, Front Spring, No.2
48112	48112-37E00	Leaf, Front Spring, No.2
48112	48112-37E01	Leaf, Front Spring, No.2
48113	48102-37D90	Leaf, Front Spring, No.3
48113	48102-37D91	Leaf, Front Spring, No.3
48113	48102-37E00	Leaf, Front Spring, No.3
48113	48102-37E01	Leaf, Front Spring, No.3
48120	48110-37D60	Spring Assy, Front, Lh
48120	48110-37D61	Spring Assy, Front, Lh
48120	48110-37E00	Spring Assy, Front, Lh
48120	48110-37E01	Spring Assy, Front, Lh
48147	48147-37430	Bolt, Front Spring, Center
48147	48147-37D51	Bolt, Front Spring, Center
48147	48147-37530	Bolt, Front Spring, Center
48147	48147-37351	Bolt, Front Spring, Center
48147	48284-37130	Nut, Front Spring Center Bolt
48152	48152-37D30	Seat, Front Spring
48152	48114-37D31	Seat, Front Spring
48153	48253-3B440	Spacer, Front Leaf Spring, No.1
48153	48152-37J42	Spacer, Front Leaf Spring, No.1
48153	48252-37670	Silencer, Front Spring, No.1
48252	48252-37380	Silencer, Rear Spring
48253	48114-3B060	Leaf, Front Spring, No.4
48253	48253-3B770	Leaf, Front Spring, No.6

OEM	Part name	Category
48101-37A01	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48101-37A11	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48101-37D50	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48101-37D60	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48101-37D90	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48101-37D91	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48101-37E00	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48101-37E01	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48102-37A01	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48102-37A11	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48102-37D50	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48102-37D60	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48102-37D90	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48102-37D91	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48102-37E00	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48102-37E01	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48110-37D50	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48110-37D51	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48110-37D60	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48110-37D61	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48110-37D90	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48110-37D91	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48110-37E00	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48110-37E01	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48112-37D90	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48112-37D91	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48112-37E00	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48112-37E01	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48114-37D31	Seat, Front Spring	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48114-3B060	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48147-37351	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48147-37430	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48147-37530	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48147-37D51	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48152-37D30	Seat, Front Spring	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48152-37J42	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48252-37380	Silencer, Rear Spring	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48252-37521	Silencer, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48252-37670	Silencer, Front Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48253-3B440	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48253-3B770	Leaf, Front Spring, No.6	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
48284-37130	Nut, Front Spring Center Bolt	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
90389-16025	Bush, Front Spring No.2 Shackle	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
90389-16026	Bush, Front Spring No.2 Shackle	Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )XZU304,344,504..T3,T4,T5..20T..WT)
