XZU488

Toyota DYNA-TOYOACE · 2006 · 3,626 parts · 203 categories

3,626 items

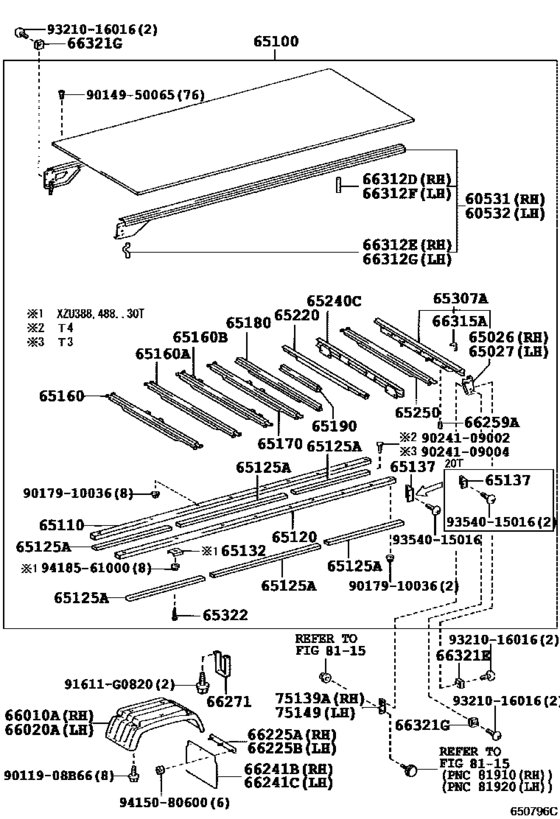

Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5) 43

#	OEM	Part name
60531	65303-3V180	Frame Sub-Assy, Floor Side, Rh
60532	65304-3V180	Frame Sub-Assy, Floor Side, Lh
65026	65026-37030	Bracket Sub-Assy, Gate Rubber Bumper, Rh
65027	65027-37030	Bracket Sub-Assy, Gate Rubber Bumper, Lh
65100	65100-37M80	Floor Assy, Rear Body
65110	65110-37B90	Sill Assy, Main, Rh
65120	65120-37B90	Sill Assy, Main, Lh
65125	65127-37370	Shim, Main Sill, Lower No.1
65125	65127-37430	Shim, Main Sill, Lower No.1
65137	65137-37050	Cover, Main Sill End
65160	65250-37040	Sill Assy, Cross, No.2
65160	65240-37120	Sill Assy, Cross, No.2
65170	65220-37220	Sill Assy, Cross, No.2
65180	65180-37510	Sill Assy, Cross, No.4
65190	65190-37040	Sill Assy, Cross, No.5
65220	65180-37570	Sill Assy, Cross, No.4
65307	65307-37580	Frame Sub-Assy, Floor, Rear
65322	90290-05001	Nail
66010	65349-37010	Fender, Floor Side
66010	65349-37041	Fender, Floor Side
66225	66242-37230	Support, Baffle Rubber
66241	66241-37A00	Baffle, Rubber
66241	66241-37A02	Baffle, Rubber
66241	66241-37A01	Baffle, Rubber
66259	66259-37010	Cover, Rear Body Floor, Rear
66271	66271-37010	Step, Rear Body
66312	66311-37020	Hook, Rope
66312	66312-37020	Hook, Rope, No.2
66315	66315-37010	Hook, Rope, No.1
66321	66321-92803	Bumper, Gate Rubber
66321	66321-92805	Bumper, Gate Rubber
75139	75139-37040	Bracket, Reflex Reflector, Rh
75149	75149-37020	Bracket, Reflex Reflector, Lh
91611	91611-G0820	Bolt
9011908	90119-08B66	BOLT WWASHER
9014950065	90149-50065	Screw(For Floor Board)
9017910036	90179-10036	NUT
9024109002	90241-09002	New Genuine Part
9024109004	90241-09004	New Genuine Part
9321016016	93210-16016	SCREW
9354015016	93540-15016	New Genuine Part
9415080600	94150-80600	NUT FLANGE
9418561000	94185-61000	NUTLOCK

OEM	Part name	Category
65026-37030	Bracket Sub-Assy, Gate Rubber Bumper, Rh	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65027-37030	Bracket Sub-Assy, Gate Rubber Bumper, Lh	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65100-37M80	Floor Assy, Rear Body	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65110-37B90	Sill Assy, Main, Rh	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65120-37B90	Sill Assy, Main, Lh	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65127-37370	Shim, Main Sill, Lower No.1	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65127-37430	Shim, Main Sill, Lower No.1	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65137-37050	Cover, Main Sill End	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65180-37510	Sill Assy, Cross, No.4	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65180-37570	Sill Assy, Cross, No.4	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65190-37040	Sill Assy, Cross, No.5	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65220-37220	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65240-37120	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65250-37040	Sill Assy, Cross, No.2	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65303-3V180	Frame Sub-Assy, Floor Side, Rh	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65304-3V180	Frame Sub-Assy, Floor Side, Lh	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65307-37580	Frame Sub-Assy, Floor, Rear	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65349-37010	Fender, Floor Side	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
65349-37041	Fender, Floor Side	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66241-37A00	Baffle, Rubber	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66241-37A01	Baffle, Rubber	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66241-37A02	Baffle, Rubber	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66242-37230	Support, Baffle Rubber	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66259-37010	Cover, Rear Body Floor, Rear	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66271-37010	Step, Rear Body	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66311-37020	Hook, Rope	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66312-37020	Hook, Rope, No.2	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66315-37010	Hook, Rope, No.1	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66321-92803	Bumper, Gate Rubber	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
66321-92805	Bumper, Gate Rubber	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
75139-37040	Bracket, Reflex Reflector, Rh	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
75149-37020	Bracket, Reflex Reflector, Lh	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
90119-08B66	BOLT WWASHER	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
90149-50065	Screw(For Floor Board)	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
90179-10036	NUT	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
90241-09002	New Genuine Part	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
90241-09004	New Genuine Part	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
90290-05001	Nail	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
91611-G0820	Bolt	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
93210-16016	SCREW	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
93540-15016	New Genuine Part	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
94150-80600	NUT FLANGE	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
94185-61000	NUTLOCK	Rear Body Floor & Fender ([06.2004 - ] (0406- )BZU410,XZU388,488..CBU,IV5)
