Search › Model › XZU488

XZU488

Toyota DYNA-TOYOACE · 2006 · 3,626 parts · 203 categories

3,626 items

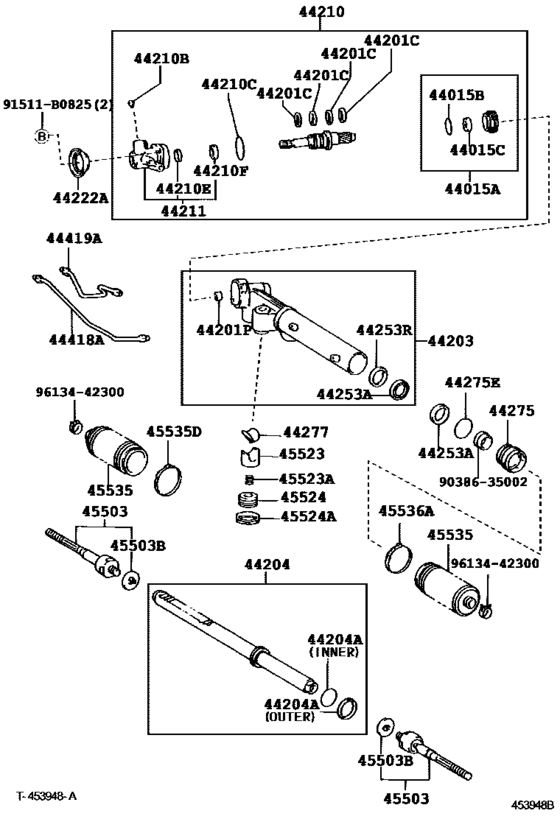

Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488) 34

#	OEM	Part name
44015	44015-43010	Nut Sub-Assy, Bearing Guide
44015	90301-43002	Ring, O(For Bearing Guide Nut)
44015	90310-25027	Seal, Oil(For Bearing Guide Nut)
44201	90562-33007	Ring(For Power Steering Control Valve)
44201	90364-13003	Bearing(For Power Steering Control Valve Lower)
44203	44203-37071	Housing Sub-Assy, Power Steering Rack
44204	44204-37030	Rack Sub-Assy, Power Steering
44204	90301-48005	Ring(For Rack Steering Piston)
44204	90562-52001	Ring(For Rack Steering Piston)
44210	44210-37040	Valve Assy, Power Steering Control
44210	90410-06005	Seat, Union(Pressure Control Valve Assy)
44210	90301-51001	Ring, O(For Adjuster Plug)
44210	90311-19013	Seal, Oil(For Power Steering Control Valve)
44210	90363-19003	Bearing(For Rear Steering Control Valve Housing)
44211	44022-37030	Housing, Control Valve
44222	45222-51010	Cover, Dust(For Power Steering Gear)
44253	90310-35013	Seal, Oil(For Power Steering Rack Housing)
44253	90560-35014	Spacer(For Power Steering Rack Housing)
44275	44275-37060	Stopper, Cylinder End
44275	90301-52005	Ring, O(For Power Steering Rack Housing)
44277	44277-37010	Seat, Rack Guide
44418	44418-37040	Tube, Steering Right Turn Pressure
44419	44419-37042	Tube, Steering Left Turn Pressure
45503	45503-39195	End Sub-Assy, Steering Rack
45503	90214-18002	Washer, Claw(For Steering Rack End)
45523	45523-37010	Guide, Rack(For Steering Gear)
45523	90501-23024	Spring(For Power Steering Rack Guide)
45524	45524-37010	Cap, Steering Rack Guide Spring
45524	90179-48003	Nut(For Steering Rack Guide Spring Cap)
45535	45535-37010	Boot, Steering Rack, No.1
45535	90460-62006	Clamp(For Steering Rack Boot No.1)
91511	91511-B0825	Bolt (For Transfer Stiffener Plate)
9038635002	90386-35002	BUSH
9613442300	96134-42300	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
44015-43010	Nut Sub-Assy, Bearing Guide	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
44022-37030	Housing, Control Valve	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
44203-37071	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
44204-37030	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
44210-37040	Valve Assy, Power Steering Control	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
44275-37060	Stopper, Cylinder End	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
44277-37010	Seat, Rack Guide	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
44418-37040	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
44419-37042	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
45222-51010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
45503-39195	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
45523-37010	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
45524-37010	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
45535-37010	Boot, Steering Rack, No.1	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90179-48003	Nut(For Steering Rack Guide Spring Cap)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90214-18002	Washer, Claw(For Steering Rack End)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90301-43002	Ring, O(For Bearing Guide Nut)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90301-48005	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90301-51001	Ring, O(For Adjuster Plug)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90301-52005	Ring, O(For Power Steering Rack Housing)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90310-25027	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90310-35013	Seal, Oil(For Power Steering Rack Housing)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90311-19013	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90363-19003	Bearing(For Rear Steering Control Valve Housing)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90364-13003	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90386-35002	BUSH	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90410-06005	Seat, Union(Pressure Control Valve Assy)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90460-62006	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90501-23024	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90560-35014	Spacer(For Power Steering Rack Housing)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90562-33007	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
90562-52001	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)
96134-42300	Clip Or Clamp(For Ventilation Hose)	Front Steering Gear & Link ([10.2006 - ] (0406- )XZU388 ; (0610- )XZU488)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 203
Collected: 2026-08-03
