Search › Model › XZU488

XZU488

Toyota DYNA-TOYOACE · 2006 · 3,626 parts · 203 categories

3,626 items

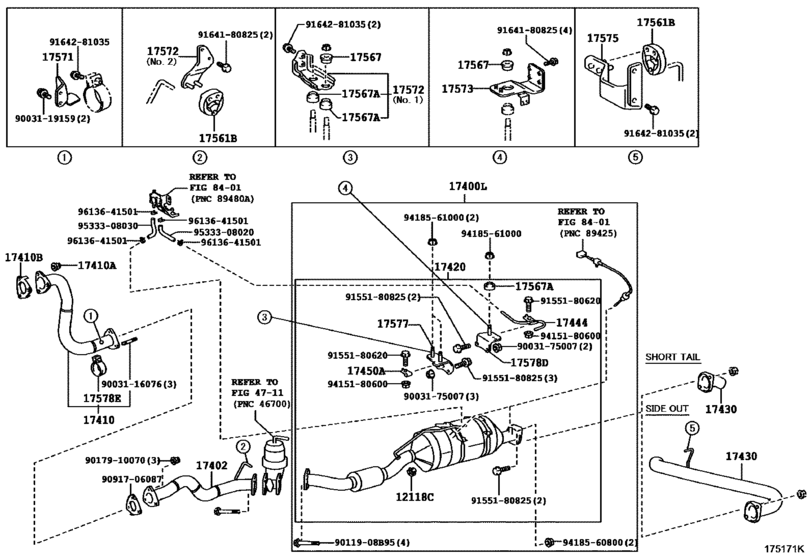

Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488) 39

#	OEM	Part name
12118	12118-78010	Plug, Drain
17400	17400-78070	Pipe Assy, Exhaust
17402	17402-78050	Pipe Sub-Assy, Exhaust, Front No.2
17410	17410-78070	Pipe Assy, Exhaust, Front
17410	17410-78071	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06087	Gasket, Turbine Outlet Elbow
17420	17420-78410	Pipe Assy, Exhaust, Center
17430	17405-78840	Pipe Assy, Exhaust, Tail
17430	17405-78D20	Pipe Assy, Exhaust, Tail
17444	17444-78060	Pipe, Exhaust, No.4
17450	17589-78021	Clamp, Exhaust Pipe, No.5
17561	17561-73020	Bolt Or Ring, Exhaust Tail Pipe (For Front)
17567	17567-78030	Cushion, Exhaust Pipe Support
17567	17567-78040	Cushion, Exhaust Pipe Support
17571	17571-78130	Bracket, Exhaust Pipe Support, No.1
17572	17572-78210	Bracket, Exhaust Pipe No.1 Support
17572	17572-78250	Bracket, Exhaust Pipe No.1 Support
17573	17573-78200	Bracket, Exhaust Pipe No.1 Support, Lower
17575	17575-78210	Bracket, Exhaust Pipe Support, No.5
17577	17577-78110	Bracket, Exhaust Pipe Support, No.7
17578	17578-78210	Bracket, Exhaust Pipe Support, No.8
17578	17578-78010	Clamp, Pipe(For Front Exhaust Pipe)
9011908	90119-08B95	BOLTWWASHER
9003116076	90031-16076	New Genuine Part
9003119159	90031-19159	BOLT WWASHER
9003175007	90031-75007	NUTFLANGE
9155180620	91551-80620	Bolt
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9164180825	91641-80825	BOLT WWASHER
9164281035	91642-81035	BOLT WWASHER
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9418560800	94185-60800	NUT
9418561000	94185-61000	NUTLOCK
9533308020	95333-08020	Hose, Lpg Injector
9533308020	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
9533308030	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
9613641501	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)

OEM	Part name	Category
12118-78010	Plug, Drain	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17400-78070	Pipe Assy, Exhaust	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17402-78050	Pipe Sub-Assy, Exhaust, Front No.2	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17405-78840	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17405-78D20	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17410-78070	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17410-78071	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17420-78410	Pipe Assy, Exhaust, Center	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17444-78060	Pipe, Exhaust, No.4	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17561-73020	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17567-78030	Cushion, Exhaust Pipe Support	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17567-78040	Cushion, Exhaust Pipe Support	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17571-78130	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17572-78210	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17572-78250	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17573-78200	Bracket, Exhaust Pipe No.1 Support, Lower	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17575-78210	Bracket, Exhaust Pipe Support, No.5	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17577-78110	Bracket, Exhaust Pipe Support, No.7	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17578-78010	Clamp, Pipe(For Front Exhaust Pipe)	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17578-78210	Bracket, Exhaust Pipe Support, No.8	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
17589-78021	Clamp, Exhaust Pipe, No.5	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
90031-16076	New Genuine Part	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
90031-19159	BOLT WWASHER	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
90031-75007	NUTFLANGE	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
90119-08B95	BOLTWWASHER	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
90917-06087	Gasket, Turbine Outlet Elbow	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
91551-80620	Bolt	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
91551-80825	Bolt(For Cylinder Head Set Sub)	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
91641-80825	BOLT WWASHER	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
91642-81035	BOLT WWASHER	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
94185-60800	NUT	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
94185-61000	NUTLOCK	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
95333-08020	Hose, Lpg Injector	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Exhaust Pipe ([10.2006 - ] (0610- )N04C..XZU488)
