XZU454

Toyota DYNA-TOYOACE · 2006 · 4,268 parts · 239 categories
XZU454 ×

← Back to categories

4,268 items

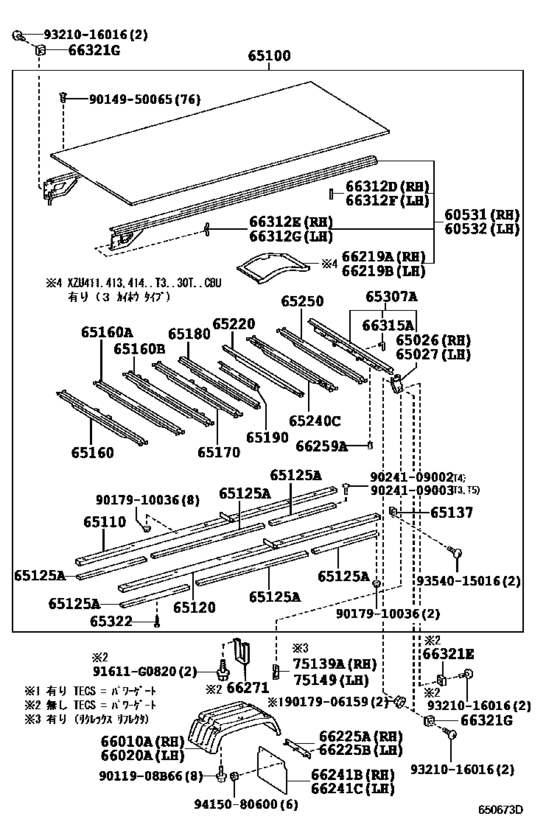

Rear Body Floor & Fender ([06.2004 - ] (0406- )XZU411,413,414,454..SCB..T3,T4,T5..20 T,30T,35T..CBU) 76
#OEMPart name
60531 65303-37E20 Frame Sub-Assy, Floor Side, Rh
60531 65303-3V180 Frame Sub-Assy, Floor Side, Rh
60532 65304-37D70 Frame Sub-Assy, Floor Side, Lh
60532 65304-3V180 Frame Sub-Assy, Floor Side, Lh
65026 65026-37030 Bracket Sub-Assy, Gate Rubber Bumper, Rh
65026 65026-37040 Bracket Sub-Assy, Gate Rubber Bumper, Rh
65027 65027-37030 Bracket Sub-Assy, Gate Rubber Bumper, Lh
65027 65027-37040 Bracket Sub-Assy, Gate Rubber Bumper, Lh
65100 65100-37N00 Floor Assy, Rear Body
65100 65100-37N70 Floor Assy, Rear Body
65100 65100-3VA20 Floor Assy, Rear Body
65110 65110-37E60 Sill Assy, Main, Rh
65110 65110-3V240 Sill Assy, Main, Rh
65120 65120-37E80 Sill Assy, Main, Lh
65120 65120-3V240 Sill Assy, Main, Lh
65125 65125-37560 Shim, Main Sill, Lower No.1
65125 65125-37610 Shim, Main Sill, Lower No.1
65125 65126-37070 Shim, Main Sill, Lower No.1
65125 65127-37360 Shim, Main Sill, Lower No.1
65125 65127-37550 Shim, Main Sill, Lower No.1
65125 65127-37560 Shim, Main Sill, Lower No.1
65137 65137-37020 Cover, Main Sill End
65137 65137-37080 Cover, Main Sill End
65160 65161-37190 Sill Assy, Cross, No.2
65160 65250-37340 Sill Assy, Cross, No.2
65160 65250-37360 Sill Assy, Cross, No.2
65160 65240-37350 Sill Assy, Cross, No.2
65160 65240-37340 Sill Assy, Cross, No.2
65160 65240-37360 Sill Assy, Cross, No.2
65170 65171-37070 Sill Assy, Cross, No.2
65170 65220-37290 Sill Assy, Cross, No.2
65170 65220-37310 Sill Assy, Cross, No.2
65180 65180-37490 Sill Assy, Cross, No.4
65180 65180-37500 Sill Assy, Cross, No.4
65180 65181-37240 Sill Assy, Cross, No.4
65190 65190-37050 Sill Assy, Cross, No.5
65190 65191-37110 Sill Assy, Cross, No.5
65220 65180-37540 Sill Assy, Cross, No.4
65220 65180-37560 Sill Assy, Cross, No.6
65240 65240-37291 Sill Assy, Cross, No.9
65307 65307-37430 Frame Sub-Assy, Floor, Rear
65307 65307-37630 Frame Sub-Assy, Floor, Rear
65307 65307-37640 Frame Sub-Assy, Floor, Rear
65322 65321-92700 Nail
65322 90032-82002 Nail
65322 90290-03001 Nail
66010 65349-37010 Fender, Floor Side
66010 65349-37041 Fender, Floor Side
66225 66242-37190 Support, Baffle Rubber
66225 66242-37220 Support, Baffle Rubber
66225 66242-37230 Support, Baffle Rubber
66241 66241-37A72 Baffle, Rubber
66241 66241-37B02 Baffle, Rubber
66241 66241-37B31 Baffle, Rubber
66259 66259-37010 Cover, Rear Body Floor, Rear
66271 66271-37010 Step, Rear Body
66271 66271-37020 Step, Rear Body
66312 66311-37020 Hook, Rope
66312 66312-37020 Hook, Rope, No.2
66315 66315-37010 Hook, Rope, No.1
66321 66303-87403 Bumper, Tail Gate
66321 66321-92803 Bumper, Gate Rubber
66321 66321-92805 Bumper, Gate Rubber
75139 75139-37040 Bracket, Reflex Reflector, Rh
75149 75149-37020 Bracket, Reflex Reflector, Lh
91611 91611-G0820 Bolt
9011908 90119-08B66 BOLT WWASHER
9014950065 90149-50065 Screw(For Floor Board)
9017906159 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017906159 90080-17210 Nut, Rear Wiper Link Pivot, No.1
9017910036 90179-10036 NUT
9024109002 90241-09002 New Genuine Part
9024109003 90241-09003 New Genuine Part
9321016016 93210-16016 SCREW
9354015016 93540-15016 New Genuine Part
9415080600 94150-80600 NUT FLANGE
