| 33577-37050 |
Cover, Control Shaft Hole |

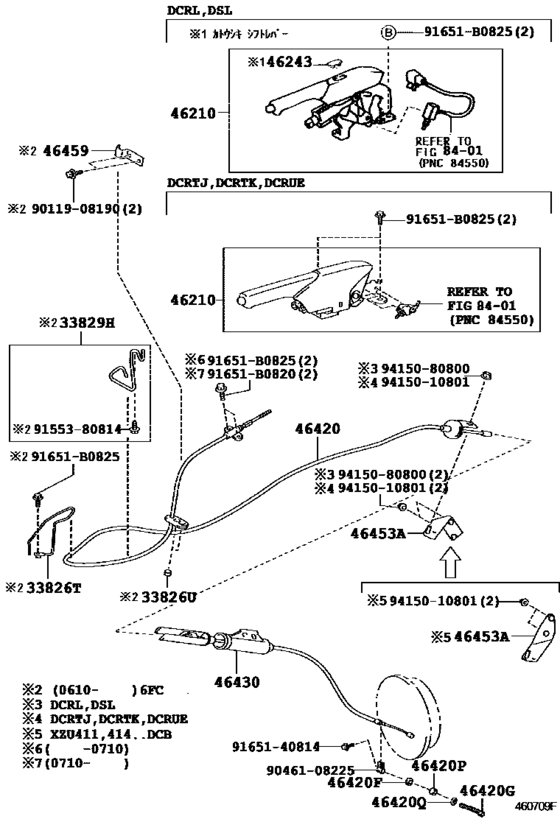

Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 33826-37A40 |
Bracket, Transmission Control Cable, No.2 |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 33829-37280 |
Clamp, Transmission Control Cable |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46210-37100-B0 |
Lever Assy, Parking Brake |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46210-37101-B0 |
Lever Assy, Parking Brake |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46210-37110-B0 |
Lever Assy, Parking Brake |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46210-37111-B0 |
Lever Assy, Parking Brake |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46420-37630 |
Cable Assy, Parking Brake, No.2 |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46420-37631 |
Cable Assy, Parking Brake, No.2 |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46430-37830 |
Cable Assy, Parking Brake, No.3 |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46430-37A40 |
Cable Assy, Parking Brake, No.3 |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46453-37200 |
Bracket, Cable Support, No.3 |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 46459-37030 |
Guide, Cable |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 90080-11228 |
New Genuine Part |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 90080-11347 |
New Genuine Part |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 90119-08190 |
BOLT |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 90303-10001 |
Seal, Dust(For Parking Brake Cable) |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 90461-08225 |
Clamp, No.3(For Parking Brake Cable) |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 90501-14003 |
Spring(For Parking Cable Inner Wire Set) |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 90560-08002 |
Spacer(For Parking Brake Handle) |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 91553-80814 |
BOLT FLANGE |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 91651-40814 |
BOLT |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 91651-B0820 |
Bolt, Radiator Side Support Plate |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 91651-B0825 |
Bolt, Hexagon(For Steering Column Bracket) |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 94150-10801 |
New Genuine Part |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 94150-80800 |
NUT, FLANGE |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
| 96160-00700 |
Ring, E(For Chain Tensioner Slipper) |
Parking Brake & Cable ([10.2006 - ] (0406- )XZU401,411,414,421,424..5F,6FC..20T.. DCRL,DSL ; (0610- )XZU404,414,42 4,454..5F,6FC..20 T) |
