Search › Model › XZU433

XZU433

Toyota DYNA-TOYOACE · 2004 · 2,433 parts · 150 categories

2,433 items

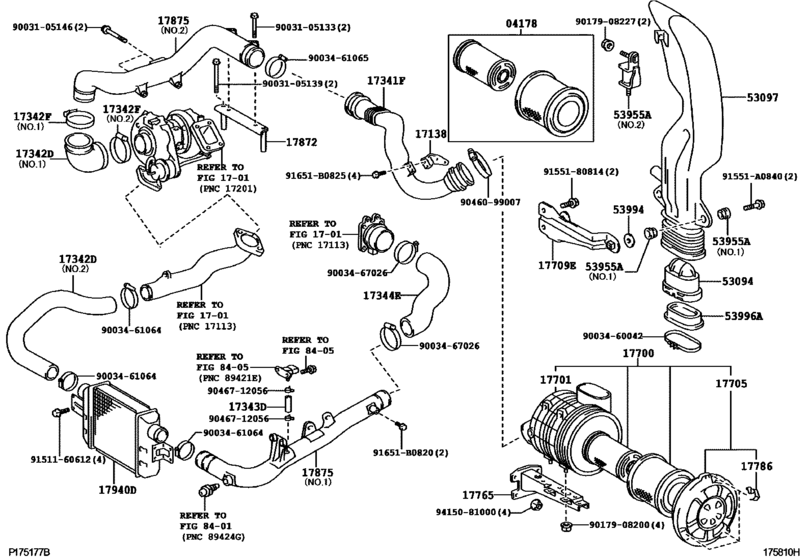

Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA) 48

#	OEM	Part name
4178	04178-78010	Element Kit, Air Cleaner
17138	17138-78030	Stay, Intake Pipe Or Hose
17341	17030-78410	Hose, Air, No.1
17342	17341-78030	Hose, Air, No.2
17342	17342-78011	Hose, Air, No.2(For Intercooler)
17342	90034-67025	Clamp Or Clip(For Air Hose, No.2)
17342	90034-60050	Clamp Or Clip(For Air Hose, No.2) - AIR, NO.2(FOR INTERCOOLER)
17342	90034-67026	Clamp, Intake Pipe
17342	90034-60048	Clamp, Hose, No.2(For Intercooler) - AIR, NO.2(FOR INTERCOOLER)
17343	17343-78020	Hose, Air, No.3
17344	17344-78130	Hose, Air, No.4
17700	17700-78341	Cleaner Assy, Air
17701	17701-78291	Case Sub-Assy, Air Cleaner
17705	17705-78020	Cap Sub-Assy, Air Cleaner
17709	53773-37080	Bracket, Air Cleaner Inlet, No.2
17765	17706-78150	Stay, Air Cleaner, No.1
17786	17786-78010	Clamp, Air Cleaner
17872	17872-78020	Bracket, Intake Air Connector
17875	17103-78052	Pipe, Intake Air Connector
17875	17113-78300	Pipe, Intake Air Connector
17875	17113-E0210	Pipe, Intake Air Connector
17940	17940-78050	Intercooler Assy
53094	53094-37010	Inlet, Air Cleaner Pipe, No.3
53097	53097-37330	Inlet Sub-Assy
53955	53955-37020	Cushion, Air Cleaner Inlet No.1
53955	53955-37040	Cushion, Air Cleaner Inlet No.1
53994	53994-37020	Retainer, Air Cleaner Inlet Pipe
53996	53996-37040	Packing, Air Cleaner Inlet Pipe
91551	91551-A0840	Bolt(For Head To Camshaft Bearing Cap)
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
91651	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9003105133	90031-05133	Bolt(For Cylinder Head Cover)
9003105139	90031-05139	New Genuine Part
9003105146	90031-05146	BOLT FLANGE
9003460042	90034-60042	New Genuine Part
9003461064	90034-61064	Clamp, Hose(For Intercooler)
9003461064	90034-60046	Clamp, Hose, No.2(For Intercooler)
9003461065	90034-61065	Clamp Or Clip(For Air Hose, No.1)
9003461065	90034-60049	Clamp, Intake Pipe
9017908200	90179-08200	New Genuine Part
9017908227	90179-08227	New Genuine Part
9046099007	90460-99007	Clamp(For Air Cleaner Hose, No.1)
9046712056	90467-12056	Clamp Or Clip(For Throttle Body Hose)
9046712056	90466-T0048	New Genuine Part
9151160612	91511-60612	BOLT
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9415081000	94150-81000	NUT FLANGE

OEM	Part name	Category
04178-78010	Element Kit, Air Cleaner	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17030-78410	Hose, Air, No.1	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17103-78052	Pipe, Intake Air Connector	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17113-78300	Pipe, Intake Air Connector	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17113-E0210	Pipe, Intake Air Connector	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17138-78030	Stay, Intake Pipe Or Hose	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17341-78030	Hose, Air, No.2	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17342-78011	Hose, Air, No.2(For Intercooler)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17343-78020	Hose, Air, No.3	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17344-78130	Hose, Air, No.4	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17700-78341	Cleaner Assy, Air	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17701-78291	Case Sub-Assy, Air Cleaner	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17705-78020	Cap Sub-Assy, Air Cleaner	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17706-78150	Stay, Air Cleaner, No.1	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17786-78010	Clamp, Air Cleaner	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17872-78020	Bracket, Intake Air Connector	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
17940-78050	Intercooler Assy	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
53094-37010	Inlet, Air Cleaner Pipe, No.3	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
53097-37330	Inlet Sub-Assy	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
53773-37080	Bracket, Air Cleaner Inlet, No.2	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
53955-37020	Cushion, Air Cleaner Inlet No.1	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
53955-37040	Cushion, Air Cleaner Inlet No.1	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
53994-37020	Retainer, Air Cleaner Inlet Pipe	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
53996-37040	Packing, Air Cleaner Inlet Pipe	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90031-05133	Bolt(For Cylinder Head Cover)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90031-05139	New Genuine Part	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90031-05146	BOLT FLANGE	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-60042	New Genuine Part	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-60046	Clamp, Hose, No.2(For Intercooler)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-60048	Clamp, Hose, No.2(For Intercooler) - AIR, NO.2(FOR INTERCOOLER)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-60049	Clamp, Intake Pipe	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-60050	Clamp Or Clip(For Air Hose, No.2) - AIR, NO.2(FOR INTERCOOLER)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-61064	Clamp, Hose(For Intercooler)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-61065	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-67025	Clamp Or Clip(For Air Hose, No.2)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90034-67026	Clamp, Intake Pipe	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90080-11347	New Genuine Part	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90179-08200	New Genuine Part	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90179-08227	New Genuine Part	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90460-99007	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90466-T0048	New Genuine Part	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
90467-12056	Clamp Or Clip(For Throttle Body Hose)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
91511-60612	BOLT	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
91551-A0840	Bolt(For Head To Camshaft Bearing Cap)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
91651-B0820	Bolt, Radiator Side Support Plate	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
94150-81000	NUT FLANGE	Air Cleaner ([02.2008 - ] (0802- )N04C..XZU423,433..SA)
