Search › Model › XZU427

XZU427

Toyota DYNA-TOYOACE · 2007 · 2,671 parts · 167 categories

2,671 items

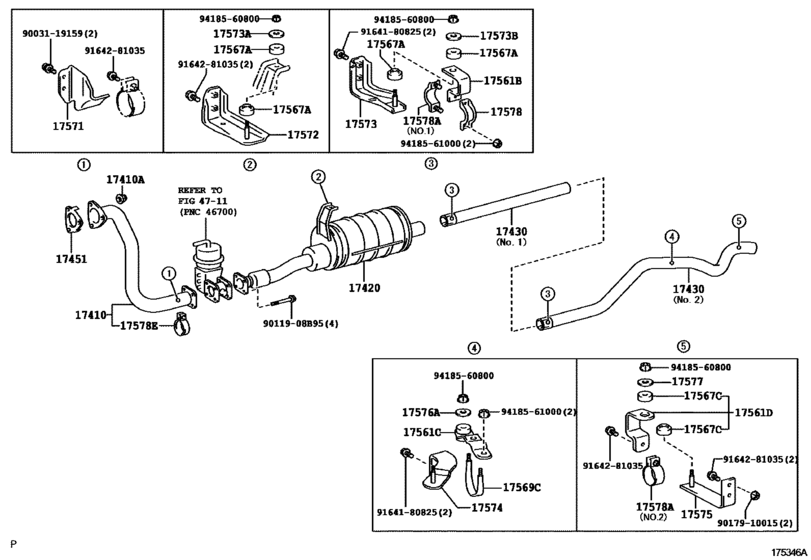

Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427) 29

#	OEM	Part name
17410	17401-78310	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17420	17403-78880	Pipe Assy, Exhaust, Center
17430	17405-78C50	Pipe Assy, Exhaust, Tail
17430	17405-78C70	Pipe Assy, Exhaust, Tail
17451	90917-06087	Gasket, Turbine Outlet Elbow
17561	17561-78010	Support, Exhaust Pipe, No.1
17561	17561-78030	Support, Exhaust Pipe, No.1
17561	17561-78080	Support, Exhaust Pipe, No.1
17567	17567-78010	Cushion, Exhaust Pipe Support
17569	17569-78010	Bolt, Exhaust Pipe Support
17571	17571-78050	Bracket, Exhaust Pipe Support, No.1
17572	17572-78072	Bracket, Exhaust Pipe No.1 Support
17573	17573-78082	Bracket, Exhaust Pipe No.1 Support, Lower
17573	16721-78010	Plate, Holder
17574	17574-78110	Bracket, Exhaust Pipe Support, No.4
17575	17575-78120	Bracket, Exhaust Pipe Support, No.5
17578	17578-78030	Clamp, Pipe
17578	17578-78020	Clamp, Pipe
17578	17578-78040	Clamp, Pipe
17578	17578-78010	Clamp, Pipe(For Front Exhaust Pipe)
9011908	90119-08B95	BOLTWWASHER
9003119159	90031-19159	BOLT WWASHER
9017910015	90179-10015	NUT
9164180825	91641-80825	BOLT WWASHER
9164281035	91642-81035	BOLT WWASHER
9418560800	94185-60800	NUT
9418561000	94185-61000	NUTLOCK

OEM	Part name	Category
16721-78010	Plate, Holder	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17401-78310	Pipe Assy, Exhaust, Front	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17403-78880	Pipe Assy, Exhaust, Center	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17405-78C50	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17405-78C70	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17561-78010	Support, Exhaust Pipe, No.1	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17561-78030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17561-78080	Support, Exhaust Pipe, No.1	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17567-78010	Cushion, Exhaust Pipe Support	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17569-78010	Bolt, Exhaust Pipe Support	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17571-78050	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17572-78072	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17573-78082	Bracket, Exhaust Pipe No.1 Support, Lower	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17574-78110	Bracket, Exhaust Pipe Support, No.4	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17575-78120	Bracket, Exhaust Pipe Support, No.5	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17578-78010	Clamp, Pipe(For Front Exhaust Pipe)	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17578-78020	Clamp, Pipe	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17578-78030	Clamp, Pipe	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
17578-78040	Clamp, Pipe	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
90031-19159	BOLT WWASHER	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
90119-08B95	BOLTWWASHER	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
90179-10015	NUT	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
90917-06087	Gasket, Turbine Outlet Elbow	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
91641-80825	BOLT WWASHER	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
91642-81035	BOLT WWASHER	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
94185-60800	NUT	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)
94185-61000	NUTLOCK	Exhaust Pipe ([01.2007 - ] (0701- )N04C..XZU417,427)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 167
Collected: 2026-08-03
