Search › Model › XZU424

XZU424

Toyota DYNA-TOYOACE · 2001 · 3,614 parts · 211 categories

← Back to categories

3,614 items

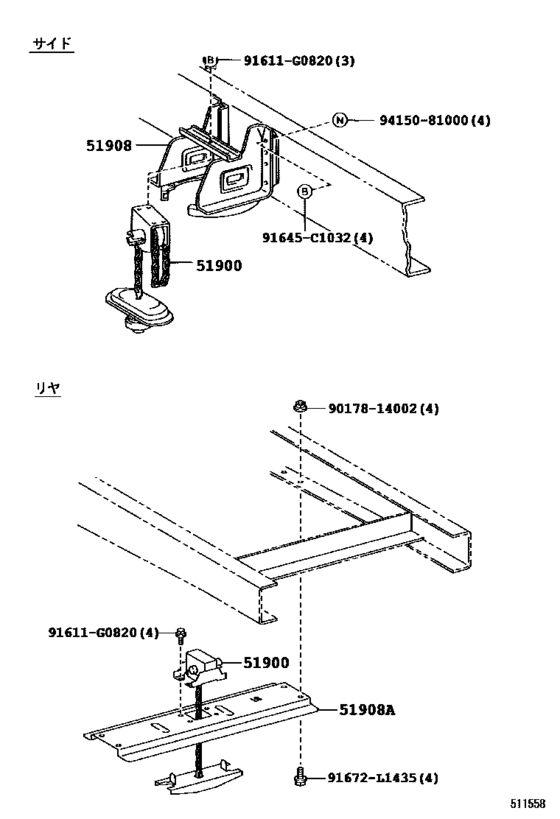

Spare Wheel Carrier ([10.2006 - ] (0610- )BZU410,XZU414,424,434,454,488) 7

#	OEM	Part name
51900	51900-37171	Carrier Assy, Spare Wheel
51908	51908-37470	Bracket Sub-Assy, Spare Wheel Carrier
91611	91611-G0820	Bolt
91645	91645-C1032	Bolt, Fuel Tank
91672	91672-L1435	New Genuine Part
9017814002	90178-14002	NUT, FLANGE
9415081000	94150-81000	NUT FLANGE

OEM	Part name	Category
51900-37171	Carrier Assy, Spare Wheel	Spare Wheel Carrier ([10.2006 - ] (0610- )BZU410,XZU414,424,434,454,488)
51908-37470	Bracket Sub-Assy, Spare Wheel Carrier	Spare Wheel Carrier ([10.2006 - ] (0610- )BZU410,XZU414,424,434,454,488)
90178-14002	NUT, FLANGE	Spare Wheel Carrier ([10.2006 - ] (0610- )BZU410,XZU414,424,434,454,488)
91611-G0820	Bolt	Spare Wheel Carrier ([10.2006 - ] (0610- )BZU410,XZU414,424,434,454,488)
91645-C1032	Bolt, Fuel Tank	Spare Wheel Carrier ([10.2006 - ] (0610- )BZU410,XZU414,424,434,454,488)
91672-L1435	New Genuine Part	Spare Wheel Carrier ([10.2006 - ] (0610- )BZU410,XZU414,424,434,454,488)
94150-81000	NUT FLANGE	Spare Wheel Carrier ([10.2006 - ] (0610- )BZU410,XZU414,424,434,454,488)

Source: Public OEM parts-catalog data
Variants: 2 / 68
Category: 211
Collected: 2026-08-03
