Search › Model › XZU421

XZU421

Toyota DYNA-TOYOACE · 1999 · 3,605 parts · 212 categories

3,605 items

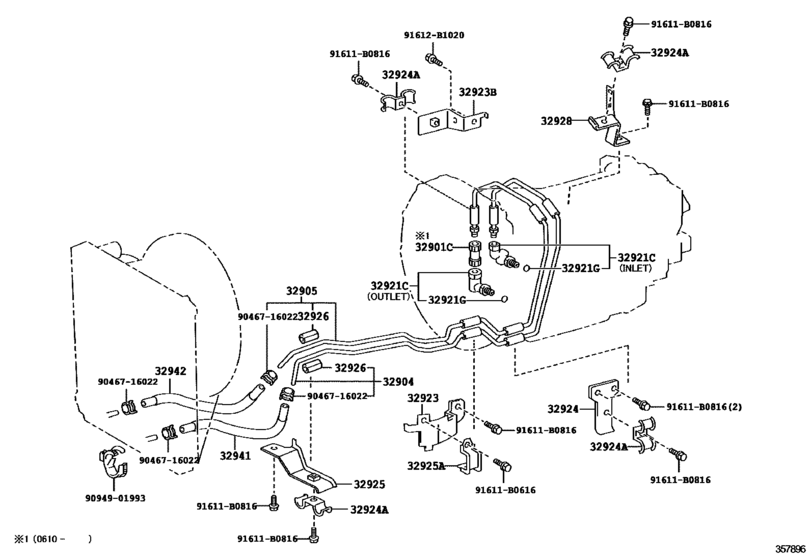

Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC) 21

#	OEM	Part name
32904	32904-37170	Tube Sub-Assy, Oil Cooler Inlet, No.1
32905	32905-37171	Tube Sub-Assy, Oil Cooler Outlet, No.1
32921	90407-20009	Union(For Oil Cooler Tube)
32921	90407-20010	Union(For Oil Cooler Tube)
32921	90301-11006	O Ring, Transaxle Case Elbow
32923	32927-37010	Clamp, Automatic Transmission Oil Cooler Tube
32923	32923-37011	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32924	32924-37010	Clamp, Oil Cooler Tube, No.2
32924	90462-12076	Clamp, Automatic Transmission Oil Cooler Tube
32925	32925-37020	Clamp, Oil Cooler Tube, No.3
32925	32929-25020	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-60010	Cushion, Oil Cooler Tube(Atm)
32928	32928-37040	Clamp, Flexible Hose, No.1
32928	32928-37041	Clamp, Flexible Hose, No.1
32941	32941-37040	Hose, Oil Cooler Inlet, No.1
32942	32942-37020	Hose, Oil Cooler Outlet, No.1
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
91611	91611-B0816	Bolt
91612	91612-B1020	Bolt (For Transfer Case)Cover No.2
9046716022	90467-16022	Clip(For Water Inlet Hose)
9094901993	90949-01993	Clamp, Automatic Transmission Oil Cooler Tube, No.1

OEM	Part name	Category
32904-37170	Tube Sub-Assy, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32905-37171	Tube Sub-Assy, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32923-37011	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32924-37010	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32925-37020	Clamp, Oil Cooler Tube, No.3	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32926-60010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32927-37010	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32928-37040	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32928-37041	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32929-25020	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32941-37040	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
32942-37020	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
90407-20009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
90407-20010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
90462-12076	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
90949-01993	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
91611-B0616	Bolt(For Transaxle Case Receiver)	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Oil Cooler & Tube (Atm) ([06.2004 - ] A860 (0406- )XZU401,411,421..6FC)

Source: Public OEM parts-catalog data
Variants: 2 / 26
Category: 212
Collected: 2026-08-03
