XZU420

Toyota DYNA-TOYOACE · 1999 · 3,217 parts · 182 categories

3,217 items

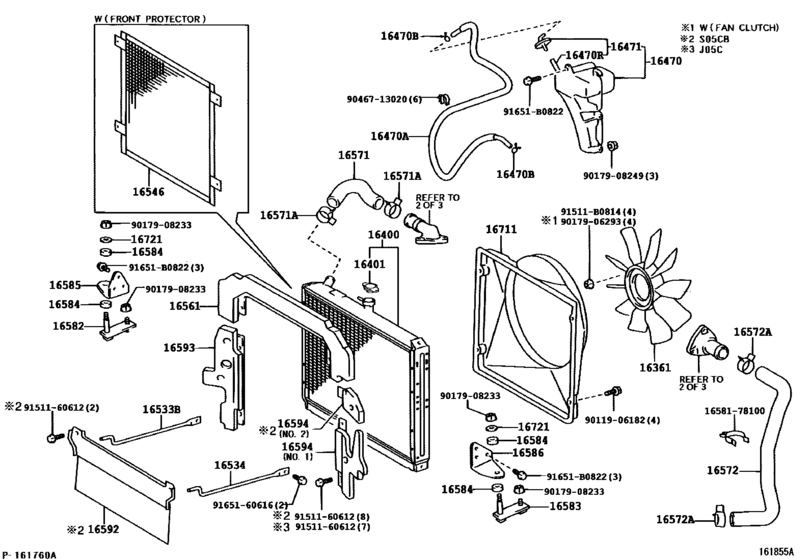

Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL) 41

#	OEM	Part name
16361	16361-78030	Fan
16400	16400-78240	Radiator Assy
16401	16401-78100	Cap Sub-Assy(For Water Outlet)
16470	16470-78010	Tank Assy, Radiator Reserve
16470	16567-78070	Hose Or Pipe(For Radiator Reserve Tank)
16470	16567-78570	Hose Or Pipe(For Radiator Reserve Tank)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	90445-12078	Hose(For Radiator Breather)
16471	16405-78010	Cap Sub-Assy, Reserve Tank
16533	16533-78030	Support, Radiator, No.1
16533	16533-78031	Support, Radiator, No.1
16534	16534-78030	Support, Radiator, No.2
16534	16534-78031	Support, Radiator, No.2
16561	16561-78030	Seal, Radiator To Support, No.1
16571	16571-78080	Hose, Radiator, Inlet
16571	16581-78050	Clamp, Sub Radiator Inlet Hose
16571	16581-78140	Clamp, Sub Radiator Inlet Hose
16571	16581-78191	Clamp, Sub Radiator Inlet Hose
16571	90460-52003	Clamp, Sub Radiator Inlet Hose
16571	90460-55014	Clamp, Sub Radiator Inlet Hose
16572	16572-78110	Hose, Radiator, Outlet
16582	16583-78020	Bracket, Radiator, No.2
16584	16584-78010	Insulator, Radiator Mounting
16585	16585-78030	Bracket, Radiator, No.3
16586	16586-78020	Bracket, Radiator, No.4
16593	16593-78040	Guide, Radiator Air, No.1
16593	16593-78041	Guide, Radiator Air, No.1
16594	16594-78040	Guide, Radiator Air, No.2
16594	16594-78041	Guide, Radiator Air, No.2
16711	16711-78080	Shroud, Fan
16721	16721-78010	Plate, Holder
91511	91511-B0814	BOLT
91651	91651-B0822	BOLT WWASHER
1658178100	16581-78100	Clamp, Hose(For Water Hose)
9011906182	90119-06182	Bolt, W/washer (For Floor Shift)
9017906293	90179-06293	NUT
9017908233	90179-08233	NUT
9017908249	90179-08249	New Genuine Part
9046713020	90467-13020	Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9151160612	91511-60612	BOLT
9165160616	91651-60616	BOLT

OEM	Part name	Category
16361-78030	Fan	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16400-78240	Radiator Assy	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16401-78100	Cap Sub-Assy(For Water Outlet)	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16405-78010	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16470-78010	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16533-78030	Support, Radiator, No.1	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16533-78031	Support, Radiator, No.1	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16534-78030	Support, Radiator, No.2	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16534-78031	Support, Radiator, No.2	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16561-78030	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16567-78070	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16567-78570	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16571-78080	Hose, Radiator, Inlet	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16572-78110	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16581-78050	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16581-78100	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16581-78140	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16581-78191	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16583-78020	Bracket, Radiator, No.2	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16584-78010	Insulator, Radiator Mounting	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16585-78030	Bracket, Radiator, No.3	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16586-78020	Bracket, Radiator, No.4	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16593-78040	Guide, Radiator Air, No.1	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16593-78041	Guide, Radiator Air, No.1	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16594-78040	Guide, Radiator Air, No.2	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16594-78041	Guide, Radiator Air, No.2	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16711-78080	Shroud, Fan	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
16721-78010	Plate, Holder	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90119-06182	Bolt, W/washer (For Floor Shift)	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90179-06293	NUT	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90179-08233	NUT	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90179-08249	New Genuine Part	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90460-52003	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90460-55014	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90467-13020	Clamp Or Clip(For Radiator Reserve Tank Hose No.2)	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
91511-60612	BOLT	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
91511-B0814	BOLT	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
91651-60616	BOLT	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
91651-B0822	BOLT WWASHER	Radiator & Water Outlet ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
