Search › Model › XZU420

XZU420

Toyota DYNA-TOYOACE · 1999 · 3,217 parts · 182 categories

3,217 items

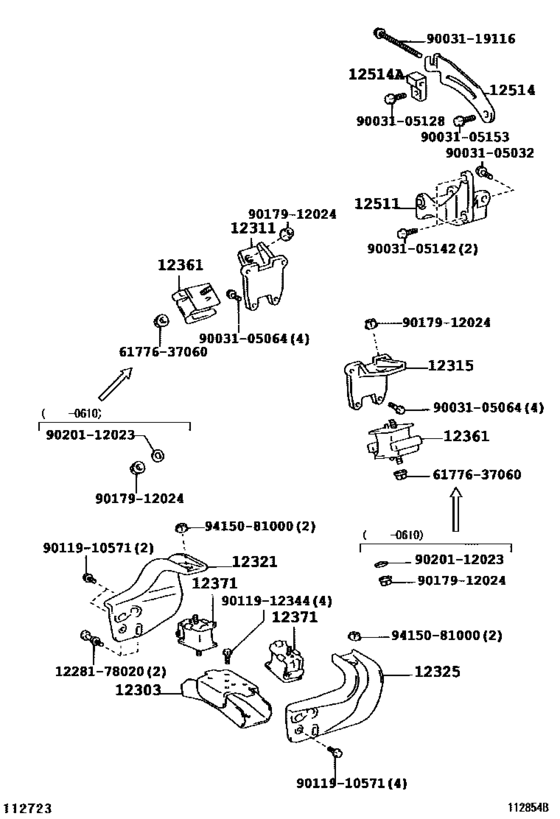

Mounting ([04.2003 - ] (0304- )J05C) 29

#	OEM	Part name
12303	12303-78030	Bracket Sub-Assy, Engine Mounting, Rear
12311	12311-78030	Bracket, Engine Mounting, Front No.1 Rh
12315	12315-78010	Bracket, Engine Mounting, Front No.1 Lh
12315	51422-E0050	Bracket, Engine Front Mounting, Lh
12321	12321-78140	Bracket, Engine Mounting, Rear, No.1
12325	12325-78120	Bracket, Engine Mounting, No.3
12361	12361-78100	Insulator, Engine Mounting, Front
12361	12362-78010	Insulator, Engine Mounting, Front
12371	12371-78010	Insulator, Engine Mounting, Rear No.1
12371	12371-78060	INSULATOR ENGINE
12511	12501-78040	Bracket, Alternator, No.1
12511	12501-E0050	Bracket, Alternator, No.1
12511	12501-78041	Bracket, Alternator, No.1
12514	12514-78050	Bar, Alternator Belt Adjusting
12514	12519-78010	Slider, Fan Belt Adjusting
1228178020	12281-78020	Hanger, Engine, No.1
6177637060	61776-37060	Strength, Quarter Panel Horizontal, Lower Center Rh
6177637060	61776-37061	Strength, Quarter Panel Horizontal, Lower Center Rh
9003105032	90031-05032	New Genuine Part
9003105064	90031-05064	New Genuine Part
9003105128	90031-05128	Bolt(For Cylinder Head Cover)
9003105142	90031-05142	Bolt(For Crankshaft Pulley Set)
9003105153	90031-05153	BOLT FLANGE
9003119116	90031-19116	New Genuine Part
9011910571	90119-10571	New Genuine Part
9011912344	90119-12344	New Genuine Part
9017912024	90179-12024	NUT
9020112023	90201-12023	New Genuine Part
9415081000	94150-81000	NUT FLANGE

OEM	Part name	Category
12281-78020	Hanger, Engine, No.1	Mounting ([04.2003 - ] (0304- )J05C)
12303-78030	Bracket Sub-Assy, Engine Mounting, Rear	Mounting ([04.2003 - ] (0304- )J05C)
12311-78030	Bracket, Engine Mounting, Front No.1 Rh	Mounting ([04.2003 - ] (0304- )J05C)
12315-78010	Bracket, Engine Mounting, Front No.1 Lh	Mounting ([04.2003 - ] (0304- )J05C)
12321-78140	Bracket, Engine Mounting, Rear, No.1	Mounting ([04.2003 - ] (0304- )J05C)
12325-78120	Bracket, Engine Mounting, No.3	Mounting ([04.2003 - ] (0304- )J05C)
12361-78100	Insulator, Engine Mounting, Front	Mounting ([04.2003 - ] (0304- )J05C)
12362-78010	Insulator, Engine Mounting, Front	Mounting ([04.2003 - ] (0304- )J05C)
12371-78010	Insulator, Engine Mounting, Rear No.1	Mounting ([04.2003 - ] (0304- )J05C)
12371-78060	INSULATOR ENGINE	Mounting ([04.2003 - ] (0304- )J05C)
12501-78040	Bracket, Alternator, No.1	Mounting ([04.2003 - ] (0304- )J05C)
12501-78041	Bracket, Alternator, No.1	Mounting ([04.2003 - ] (0304- )J05C)
12501-E0050	Bracket, Alternator, No.1	Mounting ([04.2003 - ] (0304- )J05C)
12514-78050	Bar, Alternator Belt Adjusting	Mounting ([04.2003 - ] (0304- )J05C)
12519-78010	Slider, Fan Belt Adjusting	Mounting ([04.2003 - ] (0304- )J05C)
51422-E0050	Bracket, Engine Front Mounting, Lh	Mounting ([04.2003 - ] (0304- )J05C)
61776-37060	Strength, Quarter Panel Horizontal, Lower Center Rh	Mounting ([04.2003 - ] (0304- )J05C)
61776-37061	Strength, Quarter Panel Horizontal, Lower Center Rh	Mounting ([04.2003 - ] (0304- )J05C)
90031-05032	New Genuine Part	Mounting ([04.2003 - ] (0304- )J05C)
90031-05064	New Genuine Part	Mounting ([04.2003 - ] (0304- )J05C)
90031-05128	Bolt(For Cylinder Head Cover)	Mounting ([04.2003 - ] (0304- )J05C)
90031-05142	Bolt(For Crankshaft Pulley Set)	Mounting ([04.2003 - ] (0304- )J05C)
90031-05153	BOLT FLANGE	Mounting ([04.2003 - ] (0304- )J05C)
90031-19116	New Genuine Part	Mounting ([04.2003 - ] (0304- )J05C)
90119-10571	New Genuine Part	Mounting ([04.2003 - ] (0304- )J05C)
90119-12344	New Genuine Part	Mounting ([04.2003 - ] (0304- )J05C)
90179-12024	NUT	Mounting ([04.2003 - ] (0304- )J05C)
90201-12023	New Genuine Part	Mounting ([04.2003 - ] (0304- )J05C)
94150-81000	NUT FLANGE	Mounting ([04.2003 - ] (0304- )J05C)

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 182
Collected: 2026-08-03
