Search › Model › XZU420

XZU420

Toyota DYNA-TOYOACE · 1999 · 3,217 parts · 182 categories

3,217 items

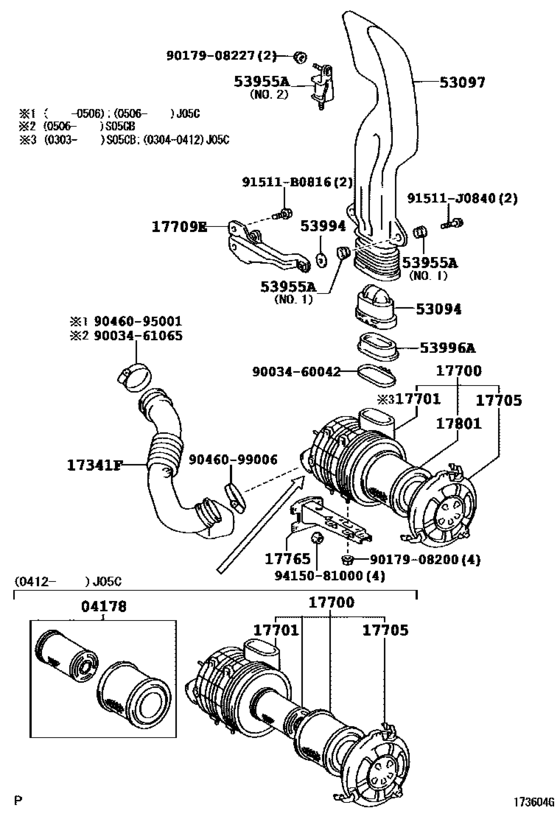

Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL) 37

#	OEM	Part name
4178	04178-78010	Element Kit, Air Cleaner
17341	17030-78020	Hose, Air, No.1
17341	17030-78021	Hose, Air, No.1
17700	17700-78141	Cleaner Assy, Air
17700	17700-78331	Cleaner Assy, Air
17700	17030-78061	Hose, Air, No.1
17700	17700-78260	Cleaner Assy, Air
17700	17700-78341	Cleaner Assy, Air
17700	17700-78261	Cleaner Assy, Air
17701	17701-78131	Case Sub-Assy, Air Cleaner
17701	17701-78281	Case Sub-Assy, Air Cleaner
17701	17701-78220	Case Sub-Assy, Air Cleaner
17701	17701-78291	Case Sub-Assy, Air Cleaner
17701	17701-78221	Case Sub-Assy, Air Cleaner
17705	17705-78020	Cap Sub-Assy, Air Cleaner
17709	53773-37080	Bracket, Air Cleaner Inlet, No.2
17765	17706-78130	Stay, Air Cleaner, No.1
17765	17706-78150	Stay, Air Cleaner, No.1
17801	17801-78030	Element Sub-Assy, Air Cleaner Filter
53094	53094-37010	Inlet, Air Cleaner Pipe, No.3
53097	53097-37280	Inlet Sub-Assy
53097	53097-37330	Inlet Sub-Assy
53955	53955-37020	Cushion, Air Cleaner Inlet No.1
53955	53955-37040	Cushion, Air Cleaner Inlet No.1
53994	53994-37020	Retainer, Air Cleaner Inlet Pipe
53996	53996-37040	Packing, Air Cleaner Inlet Pipe
91511	91511-B0816	BOLT
91511	90080-10159	New Genuine Part
91511	91511-J0840	Bolt(For Alternator)
9003460042	90034-60042	New Genuine Part
9003461065	90034-61065	Clamp Or Clip(For Air Hose, No.1)
9003461065	90034-60049	Clamp, Intake Pipe
9017908200	90179-08200	New Genuine Part
9017908227	90179-08227	New Genuine Part
9046095001	90460-95001	Clamp, Hose
9046099006	90460-99006	Clamp(For Air Cleaner Hose, No.1)
9415081000	94150-81000	NUT FLANGE

OEM	Part name	Category
04178-78010	Element Kit, Air Cleaner	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17030-78020	Hose, Air, No.1	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17030-78021	Hose, Air, No.1	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17030-78061	Hose, Air, No.1	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17700-78141	Cleaner Assy, Air	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17700-78260	Cleaner Assy, Air	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17700-78261	Cleaner Assy, Air	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17700-78331	Cleaner Assy, Air	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17700-78341	Cleaner Assy, Air	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17701-78131	Case Sub-Assy, Air Cleaner	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17701-78220	Case Sub-Assy, Air Cleaner	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17701-78221	Case Sub-Assy, Air Cleaner	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17701-78281	Case Sub-Assy, Air Cleaner	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17701-78291	Case Sub-Assy, Air Cleaner	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17705-78020	Cap Sub-Assy, Air Cleaner	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17706-78130	Stay, Air Cleaner, No.1	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17706-78150	Stay, Air Cleaner, No.1	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
17801-78030	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
53094-37010	Inlet, Air Cleaner Pipe, No.3	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
53097-37280	Inlet Sub-Assy	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
53097-37330	Inlet Sub-Assy	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
53773-37080	Bracket, Air Cleaner Inlet, No.2	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
53955-37020	Cushion, Air Cleaner Inlet No.1	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
53955-37040	Cushion, Air Cleaner Inlet No.1	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
53994-37020	Retainer, Air Cleaner Inlet Pipe	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
53996-37040	Packing, Air Cleaner Inlet Pipe	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90034-60042	New Genuine Part	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90034-60049	Clamp, Intake Pipe	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90034-61065	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90080-10159	New Genuine Part	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90179-08200	New Genuine Part	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90179-08227	New Genuine Part	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90460-95001	Clamp, Hose	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
90460-99006	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
91511-B0816	BOLT	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
91511-J0840	Bolt(For Alternator)	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
94150-81000	NUT FLANGE	Air Cleaner ([12.2002 - ] (0212- )J05C,S05C..XZU412,420,422,430..DSL)
