Search › Model › XZU412
XZU412

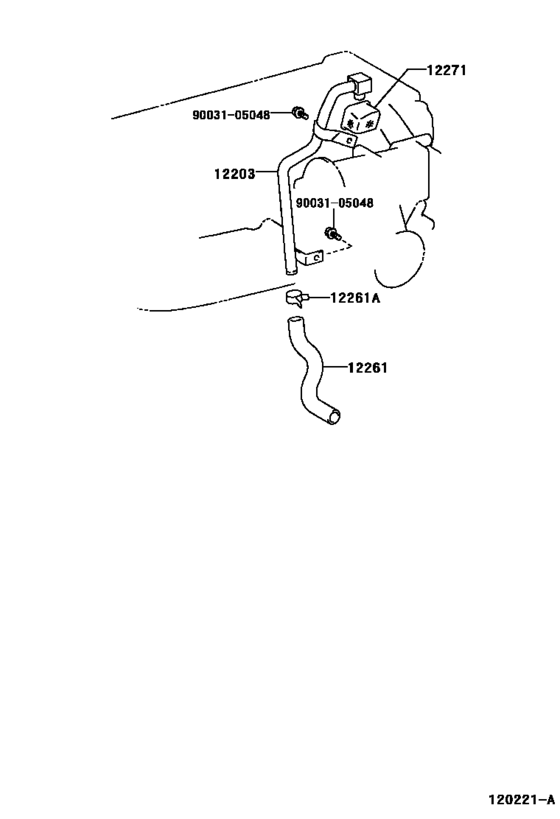

Ventilation Hose ([10.2001 - ] (0110- )S05C..TD) 5
| # | OEM | Part name |
|---|---|---|
| 12203 | 12203-78030 | Pipe Sub-Assy, Ventilation |
| 12261 | 90034-46036 | Hose, Ventilation |
| 12261 | 90034-67018 | Clip Or Clamp(For Ventilation Hose) |
| 12271 | 12271-78021 | Screen, Oil Separator |
| 9003105048 | 90031-05048 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 12203-78030 | Pipe Sub-Assy, Ventilation | Ventilation Hose ([10.2001 - ] (0110- )S05C..TD) |
| 12271-78021 | Screen, Oil Separator | Ventilation Hose ([10.2001 - ] (0110- )S05C..TD) |
| 90031-05048 | New Genuine Part | Ventilation Hose ([10.2001 - ] (0110- )S05C..TD) |
| 90034-46036 | Hose, Ventilation | Ventilation Hose ([10.2001 - ] (0110- )S05C..TD) |
| 90034-67018 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2001 - ] (0110- )S05C..TD) |
