XZU412

Toyota DYNA-TOYOACE · 1999 · 3,242 parts · 186 categories

← Back to categories

3,242 items

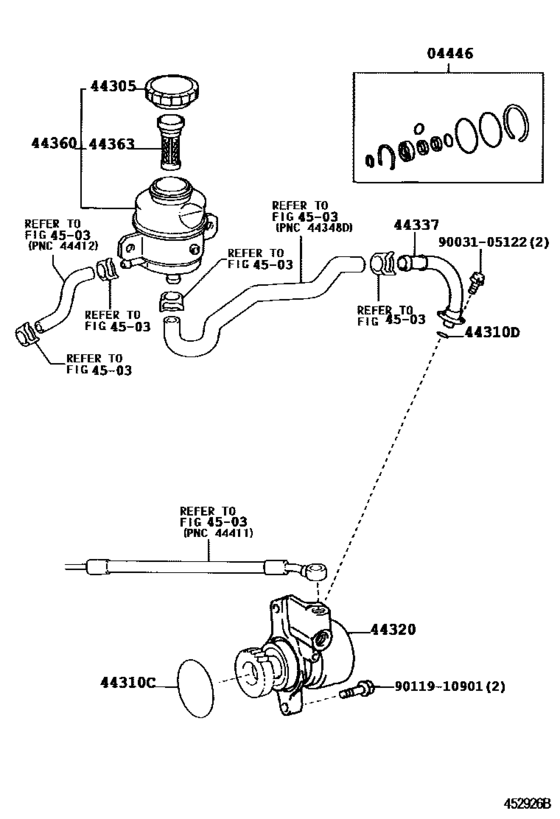

Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430) 11

#	OEM	Part name
44305	44305-12030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-12040	Cap Sub-Assy, Vane Pump Oil Reservoir
44310	90301-60002	Ring, O(For Vane Pump)
44310	90301-15019	Ring, O(For Vane Pump Union)
44320	44310-37100	Pump Assy, Vane
44320	44310-37102	VANE PUMP ASSY
44337	44337-37080	Union, Power Steering Suction Port
44360	44360-37140	Reservoir Assy, Vane Pump Oil
44363	44363-37130	Strainer, Oil(For Vane Pump)
9003105122	90031-05122	Bolt(For Turbocharger Stay)
9011910901	90119-10901	New Genuine Part

OEM	Part name	Category
44305-12030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
44305-12040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
44310-37100	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
44310-37102	VANE PUMP ASSY	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
44337-37080	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
44360-37140	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
44363-37130	Strainer, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
90031-05122	Bolt(For Turbocharger Stay)	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
90119-10901	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
90301-15019	Ring, O(For Vane Pump Union)	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
90301-60002	Ring, O(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([10.2001 - 10.2006] (0110-0610)XZU404,412,414,420,422,424,430,434 ; (0610- )XZU412,420,422,430)
