Search › Model › XZU412

XZU412

Toyota DYNA-TOYOACE · 1999 · 3,242 parts · 186 categories

3,242 items

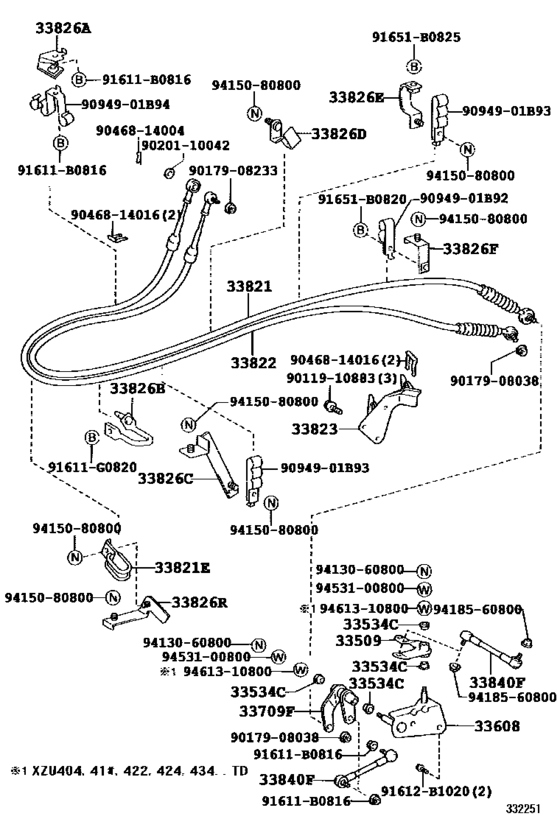

Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F) 39

#	OEM	Part name
33509	33509-37040	Crank Sub-Assy, Selecting Bell, No.1
33534	90386-13007	Bush(For Clutch Pedal)
33608	33608-37020	Support Sub-Assy, Selecting Bellcrank
33709	33709-37060	Shaft Sub-Assy, Cross, No.1 (For Floor Shift)
33821	33820-3V312	Cable Transmission Control Shift (For Floor Shift)
33821	33820-3V313	Cable Transmission Control Shift (For Floor Shift)
33821	87124-37090	Clamp, No.1 (For Transmission Control Cable)
33822	33820-3V321	Cable Transmission Control Select (For Floor Shift)
33822	33820-3V322	Cable Transmission Control Select (For Floor Shift)
33823	33823-37550	Bracket, Transmission Control Cable, No.1
33826	33826-37680	Bracket, Transmission Control Cable, No.4
33826	33826-37790	Bracket, Transmission Control Cable, No.3
33826	33826-37620	Bracket, Transmission Control Cable, No.4
33826	33826-37670	Bracket, Transmission Control Cable, No.5
33826	33826-37540	Bracket, Transmission Control Cable, No.6
33826	33826-37810	Bracket, Transmission Control Cable, No.7
33826	33826-37800	Bracket, Transmission Control Cable, No.8
33840	33840-37050	Rod Assy, Gear Shifting, No.3
91611	91611-B0816	Bolt
91611	91611-G0820	Bolt
91612	91612-B1020	Bolt (For Transfer Case)Cover No.2
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
91651	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9094901	90949-01B92	New Genuine Part
9094901	90949-01B93	New Genuine Part
9094901	90949-01B94	New Genuine Part
9011910883	90119-10883	New Genuine Part
9017908038	90179-08038	Nut
9017908233	90179-08233	NUT
9020110042	90201-10042	Washer, Plate (For Transfer Control Cable)
9046814004	90468-14004	Union, Auxiliary Fuel Band
9046814016	90468-14016	CLIP
9413060800	94130-60800	Nut(For Clutch Pedal Stopper)
9413060800	90170-A0003	New Genuine Part
9415080800	94150-80800	NUT, FLANGE
9418560800	94185-60800	NUT
9453100800	94531-00800	Washer (For Transfer Shift Outer Lever)
9461310800	94613-10800	Spacer (For Control Select Lever Support)

OEM	Part name	Category
33509-37040	Crank Sub-Assy, Selecting Bell, No.1	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33608-37020	Support Sub-Assy, Selecting Bellcrank	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33709-37060	Shaft Sub-Assy, Cross, No.1 (For Floor Shift)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33820-3V312	Cable Transmission Control Shift (For Floor Shift)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33820-3V313	Cable Transmission Control Shift (For Floor Shift)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33820-3V321	Cable Transmission Control Select (For Floor Shift)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33820-3V322	Cable Transmission Control Select (For Floor Shift)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33823-37550	Bracket, Transmission Control Cable, No.1	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33826-37540	Bracket, Transmission Control Cable, No.6	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33826-37620	Bracket, Transmission Control Cable, No.4	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33826-37670	Bracket, Transmission Control Cable, No.5	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33826-37680	Bracket, Transmission Control Cable, No.4	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33826-37790	Bracket, Transmission Control Cable, No.3	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33826-37800	Bracket, Transmission Control Cable, No.8	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33826-37810	Bracket, Transmission Control Cable, No.7	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
33840-37050	Rod Assy, Gear Shifting, No.3	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
87124-37090	Clamp, No.1 (For Transmission Control Cable)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90080-11347	New Genuine Part	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90119-10883	New Genuine Part	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90170-A0003	New Genuine Part	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90179-08038	Nut	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90179-08233	NUT	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90201-10042	Washer, Plate (For Transfer Control Cable)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90386-13007	Bush(For Clutch Pedal)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90468-14004	Union, Auxiliary Fuel Band	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90468-14016	CLIP	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90949-01B92	New Genuine Part	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90949-01B93	New Genuine Part	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
90949-01B94	New Genuine Part	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
91611-B0816	Bolt	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
91611-G0820	Bolt	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
91651-B0820	Bolt, Radiator Side Support Plate	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
94130-60800	Nut(For Clutch Pedal Stopper)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
94150-80800	NUT, FLANGE	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
94185-60800	NUT	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
94531-00800	Washer (For Transfer Shift Outer Lever)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
94613-10800	Spacer (For Control Select Lever Support)	Shift Lever & Retainer ([01.2004 - ] (0110-0610)XZU414,424,434..LHD ; (0110-0610)XZU4 12,422..LHD..5F ; (0401- )XZU412 ,422..6F)
