Search › Model › XZU412

XZU412

Toyota DYNA-TOYOACE · 1999 · 3,242 parts · 186 categories

3,242 items

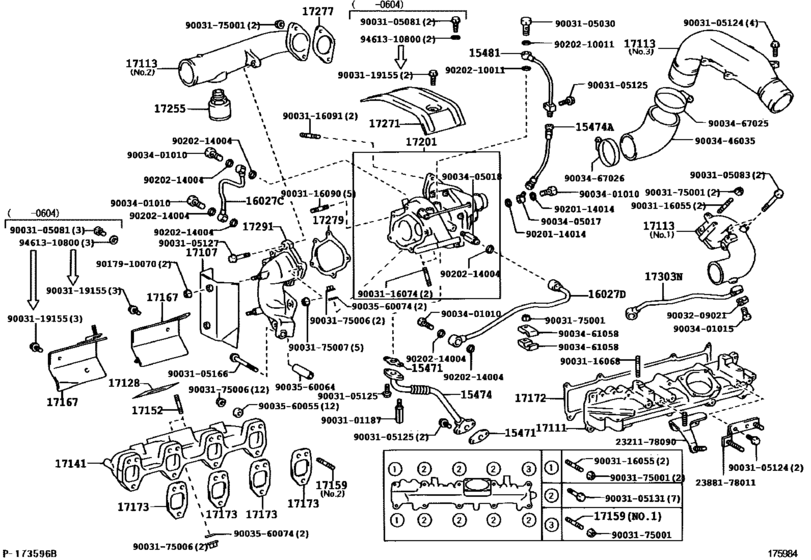

Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD) 69

#	OEM	Part name
15471	15471-78010	Gasket, Turbo Oil Inlet
15471	15471-78011	Gasket, Turbo Oil Inlet
15474	15474-78010	Pipe, Turbo Oil Outlet
15474	15491-78010	Hose, Turbo Oil Outlet
15481	15481-78010	Pipe, Turbo Oil, No.1
16027	16027-78010	Pipe Sub-Assy, Turbo Water, No.1
16027	16027-78020	Pipe Sub-Assy, Turbo Water, No.2
17107	17107-78030	Insulator Sub-Assy, Exhaust Manifold Heat
17111	17111-78040	Manifold, Intake
17111	17111-E0010	Manifold, Intake
17111	17111-78070	Manifold, Intake
17113	17103-78010	Pipe, Intake
17113	17113-78020	Pipe, Intake
17113	17113-78030	Pipe, Intake
17128	17278-78020	Gasket, Turbo To Exhaust Manifold
17141	17141-78120	Manifold, Exhaust
17152	90031-16091	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	90031-16054	Bolt, Stud(For Manifold To Cylinder Head)
17159	90031-16069	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17167	17167-78030	Insulator, Exhaust Manifold Heat, No.1
17172	17172-89102	Gasket, Manifold To Cylinder Head
17173	17173-89102	Gasket, Exhaust Manifold To Head
17201	17201-78050	Turbocharger Sub-Assy
17201	17201-E0170	Turbocharger Sub-Assy
17255	17255-78010	Valve, Intake Relief
17271	17271-78010	Insulator, Turbo, No.1
17277	17277-78010	Gasket, Compressor Outlet
17279	17278-78030	Gasket, Turbine Outlet Elbow
17291	17401-78280	Elbow, Turbine Outlet
17303	17303-78021	Pipe Sub-Assy, Air
2321178090	23211-78090	New Genuine Part
2388178011	23881-78011	Bracket, Fuel Hose
9003101187	90031-01187	New Genuine Part
9003105030	90031-05030	New Genuine Part
9003105081	90031-05081	New Genuine Part
9003105083	90031-05083	New Genuine Part
9003105124	90031-05124	New Genuine Part
9003105125	90031-05125	New Genuine Part
9003105127	90031-05127	New Genuine Part
9003105131	90031-05131	BOLT FLANGE
9003105166	90031-05166	Bolt(For Alternator)
9003116055	90031-16055	Bolt, Stud(For Manifold To Cylinder Head)
9003116068	90031-16068	Bolt, Stud(For Intake Pipe Stay)
9003116074	90031-16074	New Genuine Part
9003116090	90031-16090	New Genuine Part
9003119155	90031-19155	Bolt(For Turbocharger Stay)
9003175001	90031-75001	New Genuine Part
9003175006	90031-75006	NUTFLANGE
9003175007	90031-75007	NUTFLANGE
9003209021	90032-09021	Gasket
9003401010	90034-01010	Bolt, Union(For Turbo Oil Inlet Pipe)
9003401015	90034-01015	New Genuine Part
9003405017	90034-05017	New Genuine Part
9003405018	90034-05018	New Genuine Part
9003446035	90034-46035	New Genuine Part
9003461058	90034-61058	Clamp, Injection Pipe, No.2
9003467025	90034-67025	Clamp Or Clip(For Air Hose, No.2)
9003467025	90034-60050	Clamp Or Clip(For Air Hose, No.2) - AIR, NO.2(FOR INTERCOOLER)
9003467026	90034-67026	Clamp, Intake Pipe
9003467026	90034-60048	Clamp, Hose, No.2(For Intercooler) - AIR, NO.2(FOR INTERCOOLER)
9003560055	90035-60055	SPACER
9003560064	90035-60064	New Genuine Part
9003560074	90035-60074	SPACER
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9020114014	90201-14014	Gasket(For Turbo Oil Inlet Pipe)
9020210011	90202-10011	Gasket, W/head Taper Screw Plug
9020214004	90202-14004	Gasket(For Turbo Oil Inlet Pipe)
9461310800	94613-10800	Spacer (For Control Select Lever Support)

OEM	Part name	Category
15471-78010	Gasket, Turbo Oil Inlet	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
15471-78011	Gasket, Turbo Oil Inlet	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
15474-78010	Pipe, Turbo Oil Outlet	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
15481-78010	Pipe, Turbo Oil, No.1	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
15491-78010	Hose, Turbo Oil Outlet	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
16027-78010	Pipe Sub-Assy, Turbo Water, No.1	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
16027-78020	Pipe Sub-Assy, Turbo Water, No.2	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17103-78010	Pipe, Intake	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17107-78030	Insulator Sub-Assy, Exhaust Manifold Heat	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17111-78040	Manifold, Intake	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17111-78070	Manifold, Intake	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17111-E0010	Manifold, Intake	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17113-78020	Pipe, Intake	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17113-78030	Pipe, Intake	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17141-78120	Manifold, Exhaust	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17167-78030	Insulator, Exhaust Manifold Heat, No.1	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17172-89102	Gasket, Manifold To Cylinder Head	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17173-89102	Gasket, Exhaust Manifold To Head	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17201-78050	Turbocharger Sub-Assy	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17201-E0170	Turbocharger Sub-Assy	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17255-78010	Valve, Intake Relief	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17271-78010	Insulator, Turbo, No.1	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17277-78010	Gasket, Compressor Outlet	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17278-78020	Gasket, Turbo To Exhaust Manifold	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17278-78030	Gasket, Turbine Outlet Elbow	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17303-78021	Pipe Sub-Assy, Air	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
17401-78280	Elbow, Turbine Outlet	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
23211-78090	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
23881-78011	Bracket, Fuel Hose	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-01187	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-05030	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-05081	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-05083	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-05124	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-05125	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-05127	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-05131	BOLT FLANGE	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-05166	Bolt(For Alternator)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-16054	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-16055	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-16068	Bolt, Stud(For Intake Pipe Stay)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-16069	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-16074	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-16090	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-16091	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-19155	Bolt(For Turbocharger Stay)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-75001	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-75006	NUTFLANGE	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90031-75007	NUTFLANGE	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90032-09021	Gasket	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-01010	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-01015	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-05017	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-05018	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-46035	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-60048	Clamp, Hose, No.2(For Intercooler) - AIR, NO.2(FOR INTERCOOLER)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-60050	Clamp Or Clip(For Air Hose, No.2) - AIR, NO.2(FOR INTERCOOLER)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-61058	Clamp, Injection Pipe, No.2	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-67025	Clamp Or Clip(For Air Hose, No.2)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90034-67026	Clamp, Intake Pipe	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90035-60055	SPACER	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90035-60064	New Genuine Part	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90035-60074	SPACER	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90201-14014	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90202-10011	Gasket, W/head Taper Screw Plug	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
90202-14004	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)
94613-10800	Spacer (For Control Select Lever Support)	Manifold ([12.2002 - ] (0212- )S05C..XZU412,422..TD)

Source: Public OEM parts-catalog data
Variants: 2 / 72
Category: 186
Collected: 2026-08-03
