Search › Model › XZU412

XZU412

Toyota DYNA-TOYOACE · 1999 · 3,242 parts · 186 categories

3,242 items

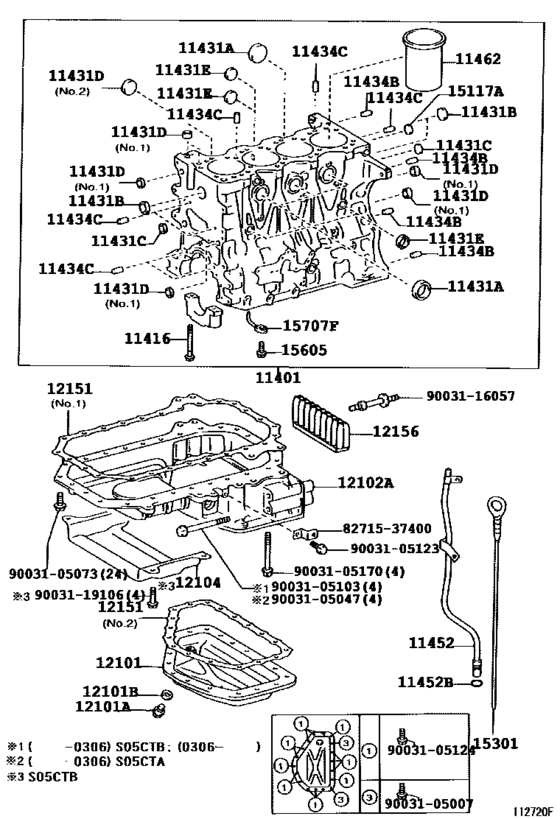

Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL) 42

#	OEM	Part name
11401	11401-78121	Block Sub-Assy, Cylinder
11401	11410-78180	Block Sub-Assy, Cylinder
11401	11401-78122	Block Sub-Assy, Cylinder
11416	90031-09052	Bolt(For Crankshaft Bearing Cap Set)
11431	90033-31026	Plug, Tight, No.4
11431	90033-31027	Plug, Tight, No.2(For Cylinder Block)
11431	90033-31021	Plug, Tight, No.3(For Cylinder Block)
11431	90033-31022	Plug, Tight, No.5
11431	90033-31020	Plug, Tight, No.3
11431	90033-31023	Plug, Tight, No.4
11431	90033-31025	Plug, Tight, No.5(For Cylinder Block)
11434	90032-50050	Pin, Straight(For Timing Gear Cover Set)
11434	90032-50049	Pin, Straight(For Clutch Housing Set)
11452	11452-78081	Guide, Oil Level Gage
11452	90033-01058	Ring, O(For Oil Level Gage Guide)
11462	11461-78090	Liner, Cylinder
11462	11461-78100	Liner, Cylinder
11462	11461-78110	Liner, Cylinder
12101	12101-78020	Pan Sub-Assy, Oil
12101	12101-E0390	Pan Sub-Assy, Oil
12101	90033-41020	Plug(For Oil Pan Drain)
12101	90034-30046	Gasket(For Oil Pan Drain Plug)
12101	90034-30047	Gasket(For Oil Pan Drain Plug)
12101	90202-18002	Gasket(For Oil Pan Drain Plug)
12102	12111-78070	Pan Sub-Assy, Oil, No.2
12151	12151-78020	Gasket, Oil Pan
12151	12151-78030	Gasket, Oil Pan
15117	15117-89101	Bushing, Oil Pump Cover
15301	15301-78020	Gage Sub-Assy, Oil Level
15605	15703-78010	Valve Sub-Assy, Oil Check
15707	11418-78040	Pipe Sub-Assy, Oil
15707	15707-78020	Pipe Sub-Assy, Oil
8271537400	82715-37400	Bracket,wiring Harness Clamp
9003105007	90031-05007	New Genuine Part
9003105047	90031-05047	New Genuine Part
9003105073	90031-05073	New Genuine Part
9003105103	90031-05103	New Genuine Part
9003105123	90031-05123	Bolt(For Cylinder Head Cover)
9003105124	90031-05124	New Genuine Part
9003105170	90031-05170	Bolt(For Alternator)
9003116057	90031-16057	BOLT STUD
9003119106	90031-19106	New Genuine Part

OEM	Part name	Category
11401-78121	Block Sub-Assy, Cylinder	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
11401-78122	Block Sub-Assy, Cylinder	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
11410-78180	Block Sub-Assy, Cylinder	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
11418-78040	Pipe Sub-Assy, Oil	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
11452-78081	Guide, Oil Level Gage	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
11461-78090	Liner, Cylinder	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
11461-78100	Liner, Cylinder	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
11461-78110	Liner, Cylinder	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
12101-78020	Pan Sub-Assy, Oil	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
12101-E0390	Pan Sub-Assy, Oil	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
12111-78070	Pan Sub-Assy, Oil, No.2	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
12151-78020	Gasket, Oil Pan	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
12151-78030	Gasket, Oil Pan	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
15117-89101	Bushing, Oil Pump Cover	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
15301-78020	Gage Sub-Assy, Oil Level	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
15703-78010	Valve Sub-Assy, Oil Check	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
15707-78020	Pipe Sub-Assy, Oil	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
82715-37400	Bracket,wiring Harness Clamp	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-05007	New Genuine Part	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-05047	New Genuine Part	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-05073	New Genuine Part	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-05103	New Genuine Part	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-05123	Bolt(For Cylinder Head Cover)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-05124	New Genuine Part	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-05170	Bolt(For Alternator)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-09052	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-16057	BOLT STUD	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90031-19106	New Genuine Part	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90032-50049	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90032-50050	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-01058	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-31020	Plug, Tight, No.3	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-31021	Plug, Tight, No.3(For Cylinder Block)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-31022	Plug, Tight, No.5	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-31023	Plug, Tight, No.4	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-31025	Plug, Tight, No.5(For Cylinder Block)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-31026	Plug, Tight, No.4	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-31027	Plug, Tight, No.2(For Cylinder Block)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90033-41020	Plug(For Oil Pan Drain)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90034-30046	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90034-30047	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)
90202-18002	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([12.2002 - ] (0212- )S05C..XZU412,422..TD ; (0212- )S05 C..XZU414,424..LHD..GEN ; (0212- )S05C..XZU404,41 4,424,434..ARL)

Source: Public OEM parts-catalog data
Variants: 2 / 72
Category: 186
Collected: 2026-08-03
