Search › Model › XZU412

XZU412

Toyota DYNA-TOYOACE · 1999 · 3,242 parts · 186 categories

3,242 items

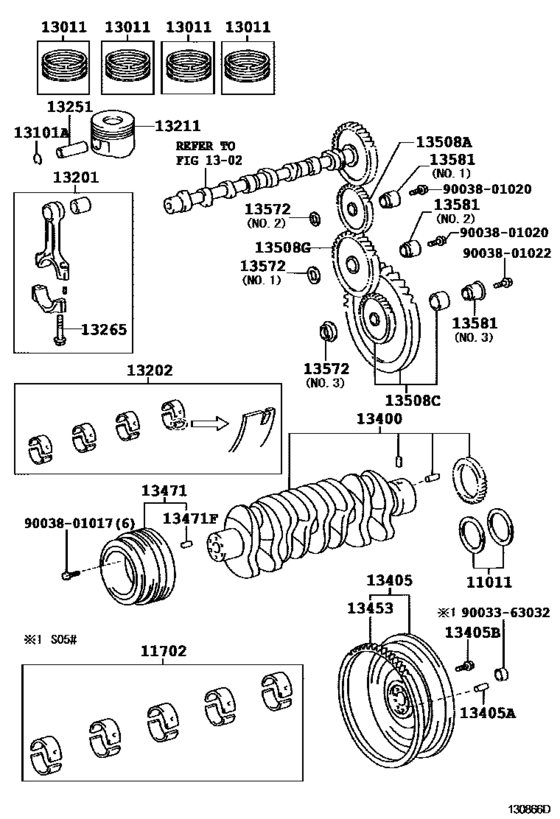

Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C) 56

#	OEM	Part name
11011	11011-78020	Washer Set, Crankshaft Thrust
11011	11011-78030	Washer Set, Crankshaft Thrust
11011	11013-89104	Washer Set, Crankshaft Thrust
11702	11701-89104	Bearing Set, Crankshaft
11702	11704-89104	Bearing Set, Crankshaft
11702	11705-78030	Bearing Set, Crankshaft
11702	11705-89104	Bearing Set, Crankshaft
13011	13011-78040	Ring Set, Piston
13011	13011-78160	Ring Set, Piston
13011	13011-78210	Ring Set, Piston
13101	90035-21030	Ring, Hole Snap(For Piston Pin)
13201	13260-78040	Rod Sub-Assy, Connecting
13201	13260-78080	Rod Sub-Assy, Connecting
13201	13260-E0130	Rod Sub-Assy, Connecting
13202	13041-78030	Bearing Set, Connecting Rod
13202	13041-78160	Bearing Set, Connecting Rod
13202	13041-E0800	Bearing, Connecting Rod
13202	13041-78180	Bearing Set, Connecting Rod
13202	13041-E0810	Bearing, Connecting Rod
13202	13041-78200	Bearing Set, Connecting Rod
13202	13041-E0820	Bearing, Connecting Rod
13202	13041-78280	Bearing Set, Connecting Rod
13202	13041-78300	Bearing Set, Connecting Rod
13202	13041-78310	Bearing Set, Connecting Rod
13202	13204-89104	Bearing Set, Connecting Rod
13202	13205-89104	Bearing Set, Connecting Rod
13211	13218-78040	Piston
13251	13251-89101	Pin, Piston
13251	13251-E0120	Pin, Piston
13265	13265-78020	Bolt, Connecting Rod
13265	13265-78030	Bolt, Connecting Rod
13400	13400-78040	Crankshaft Assy
13400	13400-78041	Crankshaft Assy
13405	13450-78050	Flywheel Sub-Assy
13405	13450-78051	Flywheel Sub-Assy
13405	90250-10008	Pin, Straight(For Flywheel)
13405	90031-09050	Bolt, Flywheel Setting
13453	13453-89102	Gear, Flywheel Ring
13453	13453-E0080	Gear, Flywheel Ring
13471	13470-78050	Pulley, Crankshaft
13471	90250-08016	Pin, Straight, No.1
13508	13508-78250	Gear Sub-Assy, Idle
13508	13508-78130	Gear Sub-Assy, Idle, No.2
13508	13508-78140	Gear Sub-Assy, Idle, No.2
13508	13508-E0590	Gear Sub-Assy, Idle, No.2
13572	13572-78010	Plate, Idle Gear Thrust
13572	13572-89104	Plate, Idle Gear Thrust
13572	13572-89105	Plate, Idle Gear Thrust
13581	13581-78030	Shaft, Idle Gear, No.1
13581	13581-78090	Shaft, Idle Gear, No.1
13581	13581-E0190	Shaft, Idle Gear, No.1
13581	13581-89102	Shaft, Idle Gear, No.1
9003363032	90033-63032	Bearing (For Input Shaft)
9003801017	90038-01017	New Genuine Part
9003801020	90038-01020	New Genuine Part
9003801022	90038-01022	New Genuine Part

OEM	Part name	Category
11011-78020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
11011-78030	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
11013-89104	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
11701-89104	Bearing Set, Crankshaft	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
11704-89104	Bearing Set, Crankshaft	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
11705-78030	Bearing Set, Crankshaft	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
11705-89104	Bearing Set, Crankshaft	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13011-78040	Ring Set, Piston	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13011-78160	Ring Set, Piston	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13011-78210	Ring Set, Piston	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-78030	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-78160	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-78180	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-78200	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-78280	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-78300	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-78310	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-E0800	Bearing, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-E0810	Bearing, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13041-E0820	Bearing, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13204-89104	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13205-89104	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13218-78040	Piston	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13251-89101	Pin, Piston	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13251-E0120	Pin, Piston	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13260-78040	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13260-78080	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13260-E0130	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13265-78020	Bolt, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13265-78030	Bolt, Connecting Rod	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13400-78040	Crankshaft Assy	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13400-78041	Crankshaft Assy	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13450-78050	Flywheel Sub-Assy	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13450-78051	Flywheel Sub-Assy	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13453-89102	Gear, Flywheel Ring	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13453-E0080	Gear, Flywheel Ring	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13470-78050	Pulley, Crankshaft	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13508-78130	Gear Sub-Assy, Idle, No.2	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13508-78140	Gear Sub-Assy, Idle, No.2	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13508-78250	Gear Sub-Assy, Idle	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13508-E0590	Gear Sub-Assy, Idle, No.2	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13572-78010	Plate, Idle Gear Thrust	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13572-89104	Plate, Idle Gear Thrust	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13572-89105	Plate, Idle Gear Thrust	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13581-78030	Shaft, Idle Gear, No.1	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13581-78090	Shaft, Idle Gear, No.1	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13581-89102	Shaft, Idle Gear, No.1	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
13581-E0190	Shaft, Idle Gear, No.1	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
90031-09050	Bolt, Flywheel Setting	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
90033-63032	Bearing (For Input Shaft)	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
90035-21030	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
90038-01017	New Genuine Part	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
90038-01020	New Genuine Part	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
90038-01022	New Genuine Part	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
90250-08016	Pin, Straight, No.1	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
90250-10008	Pin, Straight(For Flywheel)	Crankshaft & Piston ([05.2005 - ] (0505- )J05C,S05C)
