Search › Model › XZU410

XZU410

Toyota DYNA-TOYOACE · 1999 · 4,617 parts · 215 categories

4,617 items

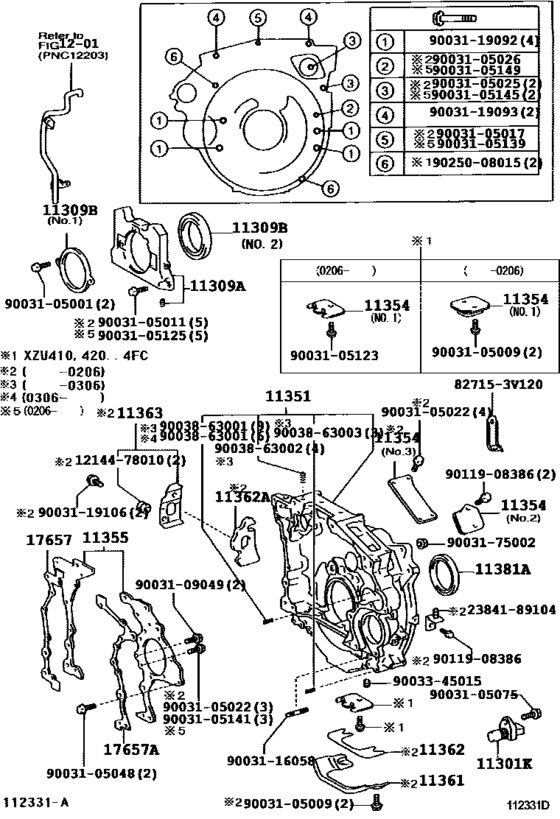

Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C) 44

#	OEM	Part name
11301	19311-78010	Sensor, Crank Position
11301	89411-E0050	Sensor, Speed
11309	11309-89101	Retainer Sub-Assy, Oil Seal
11309	11309-E0010	Retainer Sub-Assy, Oil Seal
11309	90033-19008	Seal(For Oil Seal Retainer)
11351	11308-78140	Housing, Flywheel
11351	90031-05129	Bolt(For Cylinder Head Cover)
11351	11308-78280	Housing, Flywheel
11354	11354-89101	Seal, Flywheel Housing Dust
11355	11355-78010	Plate, Rear End
11381	90033-19007	Seal, Engine Rear Oil
17657	17657-89101	Gasket, Rear Plate
17657	17657-78010	Gasket, Rear Plate, No.2
17657	17657-89102	Gasket, Rear Plate, No.2
827153	82715-3V120	Bracket,wiring Harness Clamp
1214478010	12144-78010	New Genuine Part
2384189104	23841-89104	New Genuine Part
9003105001	90031-05001	New Genuine Part
9003105009	90031-05009	Bolt(For Cylinder Head Cover)
9003105009	90031-05123	Bolt(For Cylinder Head Cover)
9003105011	90031-05011	New Genuine Part
9003105011	90031-05125	New Genuine Part
9003105017	90031-05017	New Genuine Part
9003105017	90031-05139	New Genuine Part
9003105022	90031-05022	New Genuine Part
9003105022	90031-05141	New Genuine Part
9003105025	90031-05025	New Genuine Part
9003105025	90031-05145	New Genuine Part
9003105026	90031-05026	New Genuine Part
9003105026	90031-05149	New Genuine Part
9003105048	90031-05048	New Genuine Part
9003105075	90031-05075	New Genuine Part
9003109049	90031-09049	Bolt, Flywheel Set
9003116058	90031-16058	New Genuine Part
9003119092	90031-19092	New Genuine Part
9003119093	90031-19093	New Genuine Part
9003119106	90031-19106	New Genuine Part
9003175002	90031-75002	New Genuine Part
9003345015	90033-45015	Plug, Hole(For Flywheel Housing)
9003863001	90038-63001	New Genuine Part
9003863002	90038-63002	New Genuine Part
9003863003	90038-63003	New Genuine Part
9011908386	90119-08386	New Genuine Part
9025008015	90250-08015	Pin, Straight(For Flywheel Housing)

OEM	Part name	Category
11308-78140	Housing, Flywheel	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
11308-78280	Housing, Flywheel	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
11309-89101	Retainer Sub-Assy, Oil Seal	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
11309-E0010	Retainer Sub-Assy, Oil Seal	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
11354-89101	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
11355-78010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
12144-78010	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
17657-78010	Gasket, Rear Plate, No.2	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
17657-89101	Gasket, Rear Plate	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
17657-89102	Gasket, Rear Plate, No.2	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
19311-78010	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
23841-89104	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
82715-3V120	Bracket,wiring Harness Clamp	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
89411-E0050	Sensor, Speed	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05001	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05009	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05011	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05017	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05022	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05025	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05026	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05048	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05075	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05123	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05125	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05129	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05139	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05141	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05145	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-05149	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-09049	Bolt, Flywheel Set	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-16058	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-19092	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-19093	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-19106	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90031-75002	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90033-19007	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90033-19008	Seal(For Oil Seal Retainer)	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90033-45015	Plug, Hole(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90038-63001	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90038-63002	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90038-63003	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90119-08386	New Genuine Part	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)
90250-08015	Pin, Straight(For Flywheel Housing)	Timing Gear Cover & Rear End Plate ([10.2001 - ] (0110- )J05C)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 215
Collected: 2026-08-03
