Search › Model › XZU410

XZU410

Toyota DYNA-TOYOACE · 1999 · 4,617 parts · 215 categories

4,617 items

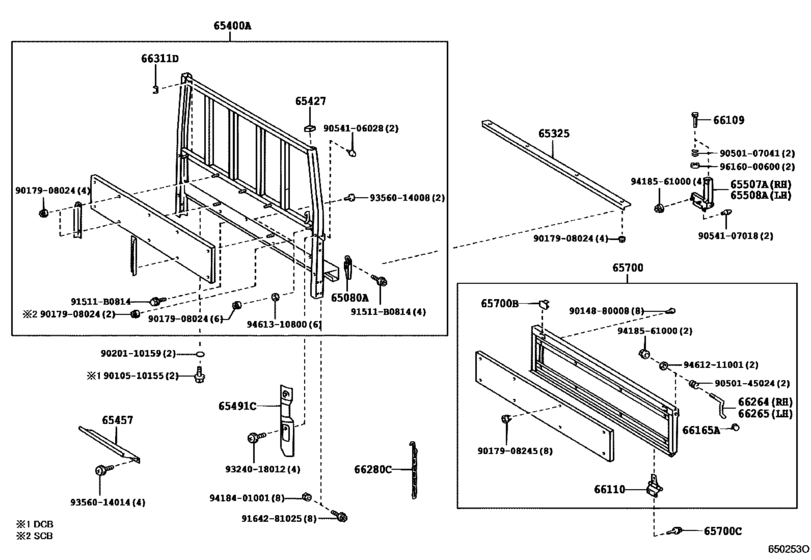

Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG) 45

#	OEM	Part name
65080	65080-92701	Handle Assy, Side Gate Latch
65080	65080-92702	Handle Assy, Side Gate Latch
65325	65325-37040	Plate, Floor Board, Front
65325	65325-37050	Plate, Floor Board, Front
65400	65400-3V320	Guard Assy, Rear Body
65400	65400-3V330	Guard Assy, Rear Body
65427	65427-92800	Cover, Guard Frame
65457	65457-37230	Plate, Baffle Dust Rear Body
65457	65457-37231	Plate, Baffle Dust Rear Body
65491	65481-37010	Protector, Front Corner, Rh
65491	65482-37010	Protector, Front Corner, Lh
65507	65507-37040	Support Sub-Assy, Corner, Rh
65508	65508-37040	Support Sub-Assy, Corner, Lh
65700	65700-37040	Gate Assy, Rear Body Tail
65700	65700-37050	Gate Assy, Rear Body Tail
65700	90950-01430	Plug, Hole(For Tail Gate)
65700	90119-08464	Bolt, W/washer(For Side Gate, Rh)
66109	66193-37010	Handle Sub-Assy, Side Gate Support Corner
66110	66110-37010	Hinge Assy, Tail Gate
66110	66110-37012	Hinge Assy, Tail Gate
66165	66165-92701	Cap, Gate Latch Handle
66264	66264-37010	Handle, Tail Gate Latch, Rh
66265	66265-37010	Handle, Tail Gate Latch, Lh
66280	66280-37020	Chain Assy, Tail Gate
66311	66312-37030	Hook, Rope
91511	91511-B0814	BOLT
9010510155	90105-10155	New Genuine Part
9014880008	90148-80008	Bolt
9017908024	90179-08024	NUT
9017908245	90179-08245	New Genuine Part
9020110159	90201-10159	New Genuine Part
9050107041	90501-07041	SPRING
9050145024	90501-45024	New Genuine Part
9050145024	90501-45042	SPRING COMPRESSION
9054106028	90541-06028	New Genuine Part
9054107018	90541-07018	Cushion, Tail Gate Side
9164281025	91642-81025	BOLT WWASHER
9324018012	93240-18012	New Genuine Part
9356014008	93560-14008	New Genuine Part
9356014014	93560-14014	SCREW
9418401001	94184-01001	Nut
9418561000	94185-61000	NUTLOCK
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)
9461310800	94613-10800	Spacer (For Control Select Lever Support)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
65080-92701	Handle Assy, Side Gate Latch	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65080-92702	Handle Assy, Side Gate Latch	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65325-37040	Plate, Floor Board, Front	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65325-37050	Plate, Floor Board, Front	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65400-3V320	Guard Assy, Rear Body	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65400-3V330	Guard Assy, Rear Body	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65427-92800	Cover, Guard Frame	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65457-37230	Plate, Baffle Dust Rear Body	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65457-37231	Plate, Baffle Dust Rear Body	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65481-37010	Protector, Front Corner, Rh	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65482-37010	Protector, Front Corner, Lh	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65507-37040	Support Sub-Assy, Corner, Rh	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65508-37040	Support Sub-Assy, Corner, Lh	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65700-37040	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
65700-37050	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
66110-37010	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
66110-37012	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
66165-92701	Cap, Gate Latch Handle	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
66193-37010	Handle Sub-Assy, Side Gate Support Corner	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
66264-37010	Handle, Tail Gate Latch, Rh	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
66265-37010	Handle, Tail Gate Latch, Lh	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
66280-37020	Chain Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
66312-37030	Hook, Rope	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90105-10155	New Genuine Part	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90119-08464	Bolt, W/washer(For Side Gate, Rh)	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90148-80008	Bolt	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90179-08024	NUT	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90179-08245	New Genuine Part	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90201-10159	New Genuine Part	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90501-07041	SPRING	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90501-45024	New Genuine Part	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90501-45042	SPRING COMPRESSION	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90541-06028	New Genuine Part	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90541-07018	Cushion, Tail Gate Side	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
90950-01430	Plug, Hole(For Tail Gate)	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
91511-B0814	BOLT	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
91642-81025	BOLT WWASHER	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
93240-18012	New Genuine Part	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
93560-14008	New Genuine Part	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
93560-14014	SCREW	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
94184-01001	Nut	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
94185-61000	NUTLOCK	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
94613-10800	Spacer (For Control Select Lever Support)	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Rear Body Guard Frame & Tail Gate ([05.1999 - 06.2004] (9905-0406)BU400,410,BZU410,XZU382,40#,410,411,4 12..20T,295T,30T,35T..CBU,IV5 ; (02 06-0406)CNG)
