XZU410

Toyota DYNA-TOYOACE · 1999 · 4,617 parts · 215 categories
XZU410 ×

← Back to categories

4,617 items

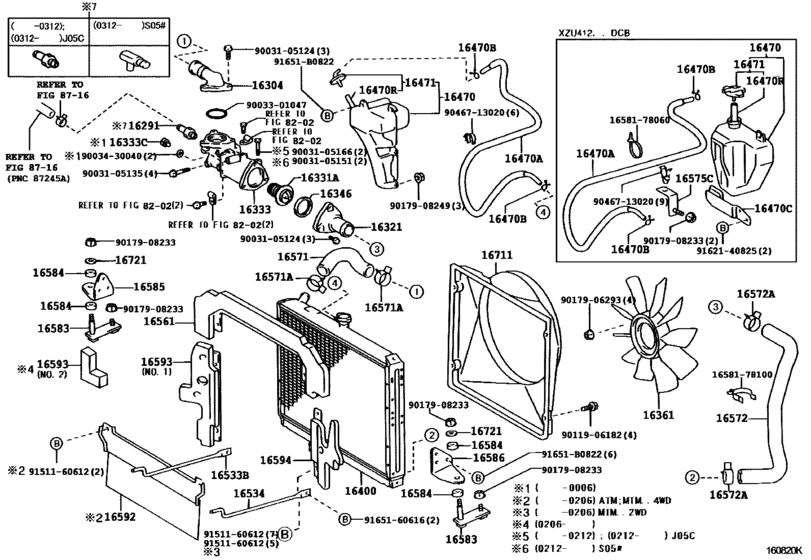

Radiator & Water Outlet ([05.1999 - 06.2004] (9905-0406)J05C,S05#..XZU40#,410,411,412,42#,430) 69
#OEMPart name
16291 87251-30190 Joint, Water Hose
16304 16304-78020 Outlet Sub-Assy, Water
16321 16321-78010 Inlet, Water
16331 90038-33010 Thermostat
16331 90038-33017 Thermostat
16333 16333-78021 Housing, Water Outlet
16346 16346-78020 Gasket, Thermostat
16361 16361-78030 Fan
16400 16400-78100 Radiator Assy
16400 16400-78101 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16400 16464-78100 Bushing(For Radiator)
16400 16445-78100 Collar(For Radiator)
16401 16401-78100 Cap Sub-Assy(For Water Outlet)
16403 16403-78100 Core Sub-Assy, Radiator
16442 16442-78100 Ring, O(For Radiator Upper Tank)
16453 16453-78100 Plate, Radiator Side
16453 16453-78101 Plate, Radiator Side
16454 16454-78100 Plate, Radiator Side
16454 16454-78230 Plate, Radiator Side
16470 16470-78010 Tank Assy, Radiator Reserve
16470 16567-78070 Hose Or Pipe(For Radiator Reserve Tank)
16470 16567-78570 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-78010 Cap Sub-Assy, Reserve Tank
16533 16533-78030 Support, Radiator, No.1
16533 16533-78031 Support, Radiator, No.1
16534 16534-78030 Support, Radiator, No.2
16534 16534-78031 Support, Radiator, No.2
16561 16561-78030 Seal, Radiator To Support, No.1
16571 16571-78080 Hose, Radiator, Inlet
16571 16581-78050 Clamp, Sub Radiator Inlet Hose
16571 90460-52003 Clamp, Sub Radiator Inlet Hose
16571 90460-55014 Clamp, Sub Radiator Inlet Hose
16571 16581-78191 Clamp, Sub Radiator Inlet Hose
16572 16572-78060 Hose, Radiator, Outlet
16583 16583-78020 Bracket, Radiator, No.2
16584 16584-78010 Insulator, Radiator Mounting
16585 16585-78030 Bracket, Radiator, No.3
16586 16586-78020 Bracket, Radiator, No.4
16593 16593-78040 Guide, Radiator Air, No.1
16593 16593-78041 Guide, Radiator Air, No.1
16593 16593-78080 Guide, Radiator Air, No.1
16594 16594-78040 Guide, Radiator Air, No.2
16594 16594-78041 Guide, Radiator Air, No.2
16711 16711-78030 Shroud, Fan
16721 16721-78010 Plate, Holder
91651 91651-B0822 BOLT WWASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
1658178060 16581-78060 New Genuine Part
1658178100 16581-78100 Clamp, Hose(For Water Hose)
9003105124 90031-05124 New Genuine Part
9003105135 90031-05135 New Genuine Part
9003105151 90031-05151 New Genuine Part
9003105166 90031-05166 Bolt(For Alternator)
9003301047 90033-01047 Ring, O(For Water Pump)
9003430040 90034-30040 Gasket(For Turbo Water Pipe)
9011906182 90119-06182 Bolt, W/washer (For Floor Shift)
9017906293 90179-06293 NUT
9017908233 90179-08233 NUT
9017908249 90179-08249 New Genuine Part
9046713020 90467-13020 Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9151160612 91511-60612 BOLT
9162140825 91621-40825 New Genuine Part
9165140830 91651-40830 Bolt, Radiator Side Support Plate
9165160616 91651-60616 BOLT
