XZU410

Toyota DYNA-TOYOACE · 1999 · 4,617 parts · 215 categories

4,617 items

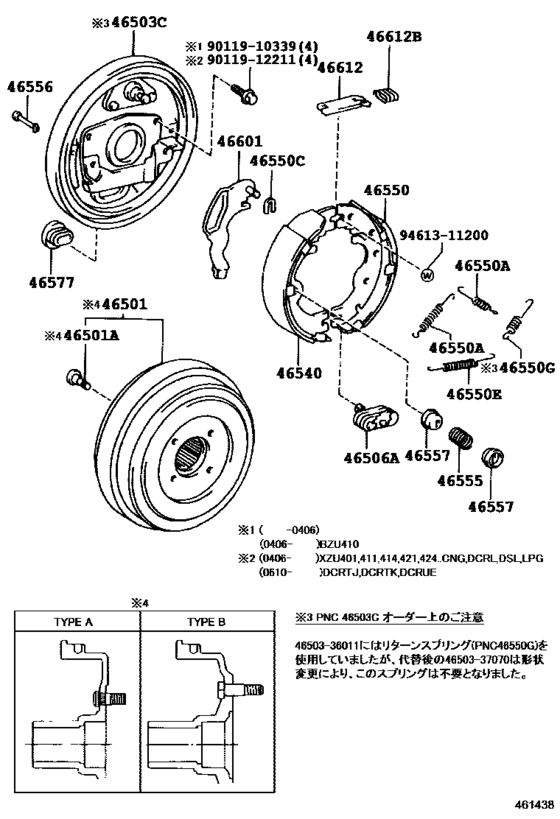

Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG) 23

#	OEM	Part name
46501	46501-37060	Drum Sub-Assy, Parking Brake
46501	90031-01170	Bolt, Serration(For Parking Brake Drum)
46503	46503-37050	Plate Sub-Assy, Parking Brake
46503	46503-37061	Plate Sub-Assy, Parking Brake
46506	46506-36010	Screw Set, Shoe Adjusting, Rh
46540	46530-25020	Shoe Assy, Parking Brake, Rh Or Center No.1
46540	46530-37030	Shoe Assy, Parking Brake, Rh Or Center No.1
46550	90506-18001	Spring, Tension
46550	90213-06003	Washer, Type C(For Parking Brake Shoe)
46550	90213-06013	Washer, Type C(For Parking Brake Shoe)
46550	90506-14012	Spring, Tension, No.2(For Parking Brake Shoe Return)
46550	90506-14013	Spring, Tension, No.3(For Parking Brake Shoe Return)
46555	90501-16025	Spring, Brake Shoe Hold Down
46556	47447-22010	Pin, Shoe Hold Down Spring
46557	47449-20011	Cup, Brake Shoe Hold Down
46577	46577-36010	Cover, Adjusting Cam Hole
46601	46601-36010	Lever Sub-Assy, Parking Brake Shoe
46601	46601-37680	Lever Sub-Assy, Parking Brake Shoe
46612	46612-36010	Strut, Parking Brake Shoe Lever
46612	90504-10001	Spring, Compression(For Parking Brake Shoe Strut)
9011910339	90119-10339	Bolt, Hexagon(For Front Disc Brake Caliper)
9011912211	90119-12211	BOLT WWASHER
9461311200	94613-11200	WASHER

OEM	Part name	Category
46501-37060	Drum Sub-Assy, Parking Brake	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46503-37050	Plate Sub-Assy, Parking Brake	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46503-37061	Plate Sub-Assy, Parking Brake	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46506-36010	Screw Set, Shoe Adjusting, Rh	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46530-25020	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46530-37030	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46577-36010	Cover, Adjusting Cam Hole	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46601-36010	Lever Sub-Assy, Parking Brake Shoe	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46601-37680	Lever Sub-Assy, Parking Brake Shoe	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
46612-36010	Strut, Parking Brake Shoe Lever	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
47447-22010	Pin, Shoe Hold Down Spring	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
47449-20011	Cup, Brake Shoe Hold Down	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90031-01170	Bolt, Serration(For Parking Brake Drum)	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90119-10339	Bolt, Hexagon(For Front Disc Brake Caliper)	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90119-12211	BOLT WWASHER	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90213-06003	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90213-06013	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90501-16025	Spring, Brake Shoe Hold Down	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90504-10001	Spring, Compression(For Parking Brake Shoe Strut)	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90506-14012	Spring, Tension, No.2(For Parking Brake Shoe Return)	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90506-14013	Spring, Tension, No.3(For Parking Brake Shoe Return)	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
90506-18001	Spring, Tension	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
94613-11200	WASHER	Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)BU400,410,420,BZU410,XZU402,410,411,4 12,421..20T ; (0406- )BZU410,XZU 401,411,414,421,4 24..5F,6FC..20T..CNG,DCRL,DSL,LPG)
