XZU410

Toyota DYNA-TOYOACE · 1999 · 4,617 parts · 215 categories
XZU410 ×

← Back to categories

4,617 items

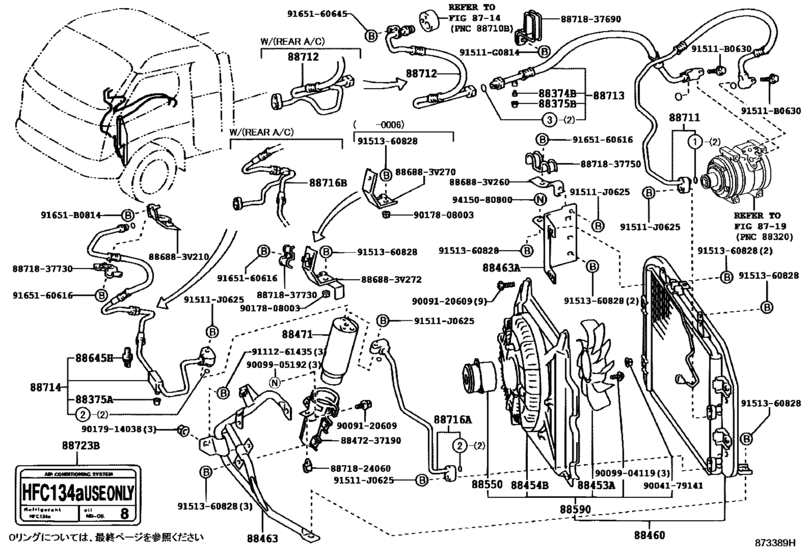

Heating & Air Conditioning - Cooler Piping ([05.1999 - 06.2004] ﾌﾛﾝﾄ ﾊﾟｲﾌﾟ (9905-0406)XZU40#,410,411,412,42#,430) 48
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88453 88453-37010 Fan, Cooling
88454 88454-37040 Shroud, Fan
88460 88460-37381 Condenser Assy, Cooler
88463 88463-37261 Bracket, Cooler Condenser, No.1
88463 88463-37262 Bracket, Cooler Condenser, No.1
88463 90105-14090 BOLT WASHER BASED
88463 88463-37281 Bracket, Cooler Condenser, No.2
88471 88471-34010 Receiver & Dryer Assy, Cooler
88550 88550-37060 Motor Assy, Blower (For Condenser)
88590 88590-37070 Blower Assy, W/shroud
88645 88645-60030 Switch, Pressure No.1
88711 88711-37670 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-37892 Hose, Cooler Refrigerant Suction, No.1
88712 88712-37893 Hose, Cooler Refrigerant Suction, No.1
88713 88712-37860 Hose, Cooler Refrigerant Suction, No.2
88714 88721-37552 Hose, Cooler Refrigerant Liquid, No.1
88716 88716-37780 Pipe, Cooler Refrigerant Liquid, A
88723 88733-22040 Label, Cooler Service Caution
88723 88733-37040 Label, Cooler Service Caution
91511 91511-B0630 BOLT FLANGE
91511 91511-G0814 New Genuine Part
91511 91511-J0625 Bolt(For Cylinder Head Cover)
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
886883 88688-3V210 Bracket, Cooler Diaphragm
886883 88688-3V211 Bracket, Cooler Diaphragm
886883 88688-3V260 Bracket, Cooler Diaphragm
886883 88688-3V270 Bracket, Cooler Diaphragm
886883 88688-3V272 Bracket, Cooler Diaphragm
8847237190 88472-37190 Bracket, Receiver Tank, No.1
8871824060 88718-24060 Pipe, Cooler Refrigerant Suction, No.2
8871837690 88718-37690 Pipe, Cooler Refrigerant Suction, No.2
8871837730 88718-37730 Pipe, Cooler Refrigerant Suction, No.2
8871837750 88718-37750 Pipe, Cooler Refrigerant Suction, No.2
9004179141 90041-79141 New Genuine Part
9009120609 90091-20609 BOLT
9009904119 90099-04119 BOLT WASHER HEAD
9009905192 90099-05192 New Genuine Part
9017808003 90178-08003 NUT FLANGE
9017914038 90179-14038 New Genuine Part
9111261435 91112-61435 BOLT
9151360828 91513-60828 BOLT FLANGE
9165160616 91651-60616 BOLT
9165160645 91651-60645 BOLT
9415080800 94150-80800 NUT, FLANGE
