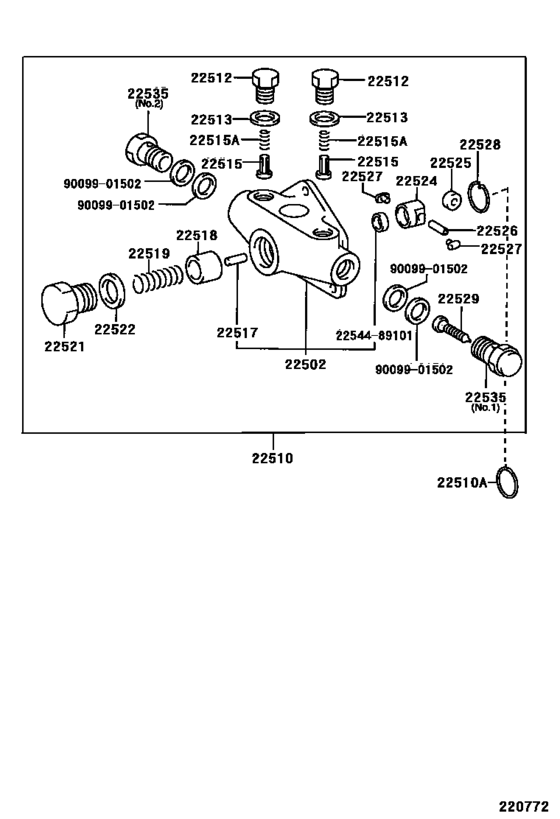

| 22502-89101 |
Housing Sub-Assy, Fuel |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22510-89103 |
Pump Assy, Fuel Feed |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22512-77020 |
Plug, Feed Pump Check Valve Chamber |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22513-77020 |
Gasket, Check Valve Chamber Plug |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22515-77021 |
Valve, Feed Pump Check |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22517-89101 |
Rod, Feed Pump Push |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22518-77020 |
Piston, Feed Pump |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22519-89101 |
Spring, Feed Pump Piston |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22521-77021 |
Plug, Feed Pump Piston Chamber |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22524-89102 |
Tappet, Feed Pump |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22525-89101 |
Roller, Feed Pump Tappet |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22526-89102 |
Pin, Feed Pump Tappet Roller |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22527-89102 |
Block, Feed Pump Tappet Sliding |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22529-67010 |
Filter, Fuel Pump |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22535-46010 |
Screw, Fuel Pipe Follow |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22535-89101 |
Screw, Fuel Pipe Follow |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 22544-89101 |
Seal, Oil |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 90099-01432 |
Gasket, Feed Pump Piston Plug |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 90099-01501 |
Ring, Feed Pump Tappet Snap |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 90099-01502 |
Washer(For Inlet Follow Screw) |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 90099-14050 |
Ring, O(For Fuel Feed Pump) |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
| 90501-05141 |
Spring, Feed Pump Check Valve |
Fuel Feed Pump ([05.1999 - ] (9905- )J05C) |
